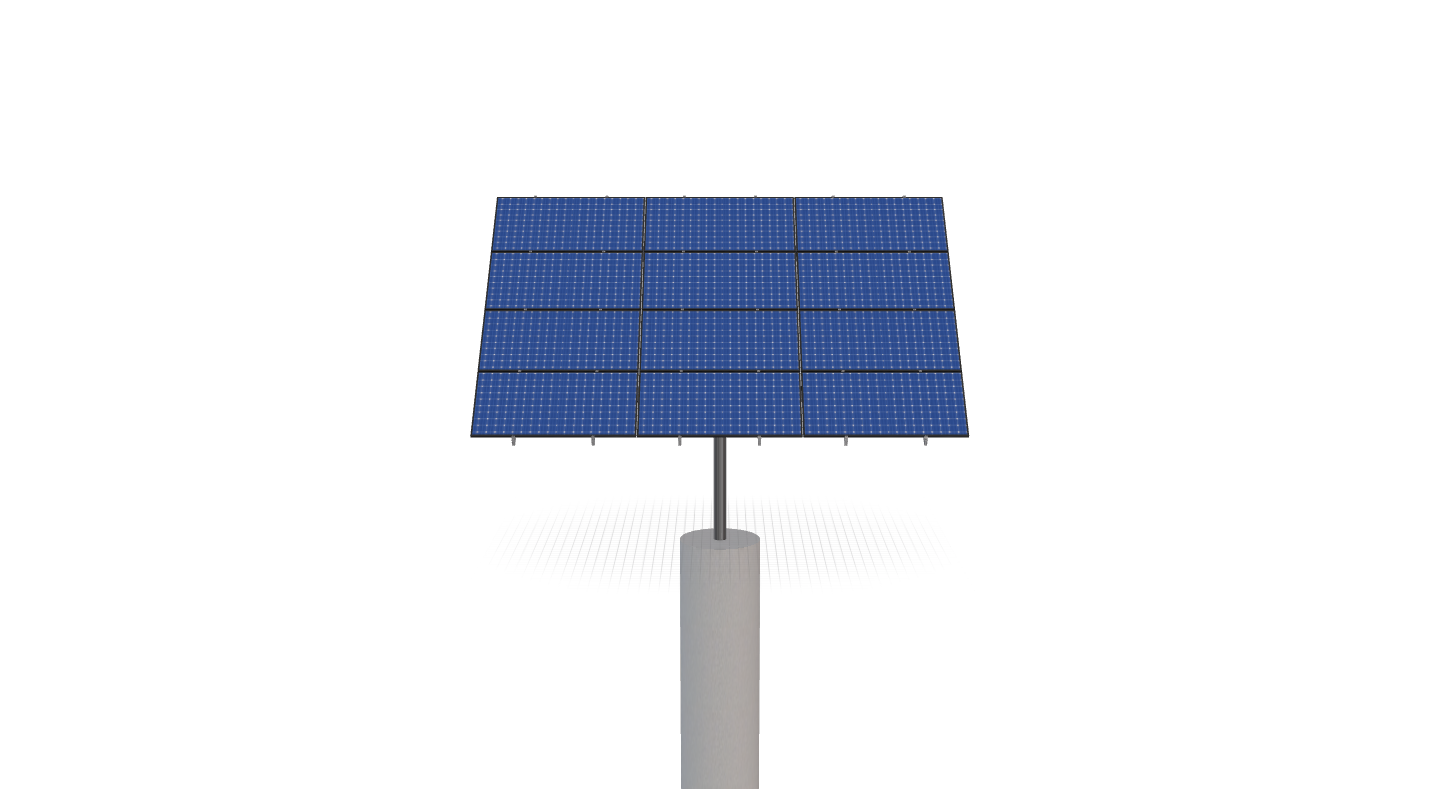

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-10TOP-XD-72-L-4Hx3W-H4IG Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79 inches by 39 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1016.21 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-10TOP-XD-72-L-4HX3W-H4IG

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.66

WING SPAN

72.00

MAX FOUNDATION DEPTH

15.00

TILT ANGLE

45.00

CANTILEVER

234.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

263.33

ARRAY WIDTH

20.00

ARRAY HEIGHT

13.17

RAIL LENGTH

158.00

MODULE LENGTH

79.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

14.25

PROJECTED PANEL HEIGHT

9.19

WIND SPEED OVERRIDE

160.00

SNOW LOAD OVERRIDE

60.00

DIRECT SNOW LOAD

FALSE

PROJECT ID

1211ARROWHEADDRIVESOLAR-REVD

SITE ADDRESS

1211, ARROWHEAD, DR, JEFFERSON, CO, 80456, USA

MODULE WIDTH

39.00

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

TRUE

TOTAL PRICE

5426.11

TOTAL WEIGHT

1016.21

TOTAL PALLETS

1.00
