This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 51.9 inches by 34.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

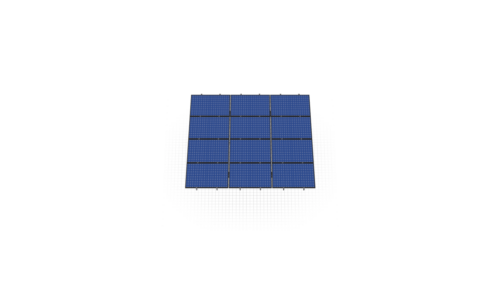

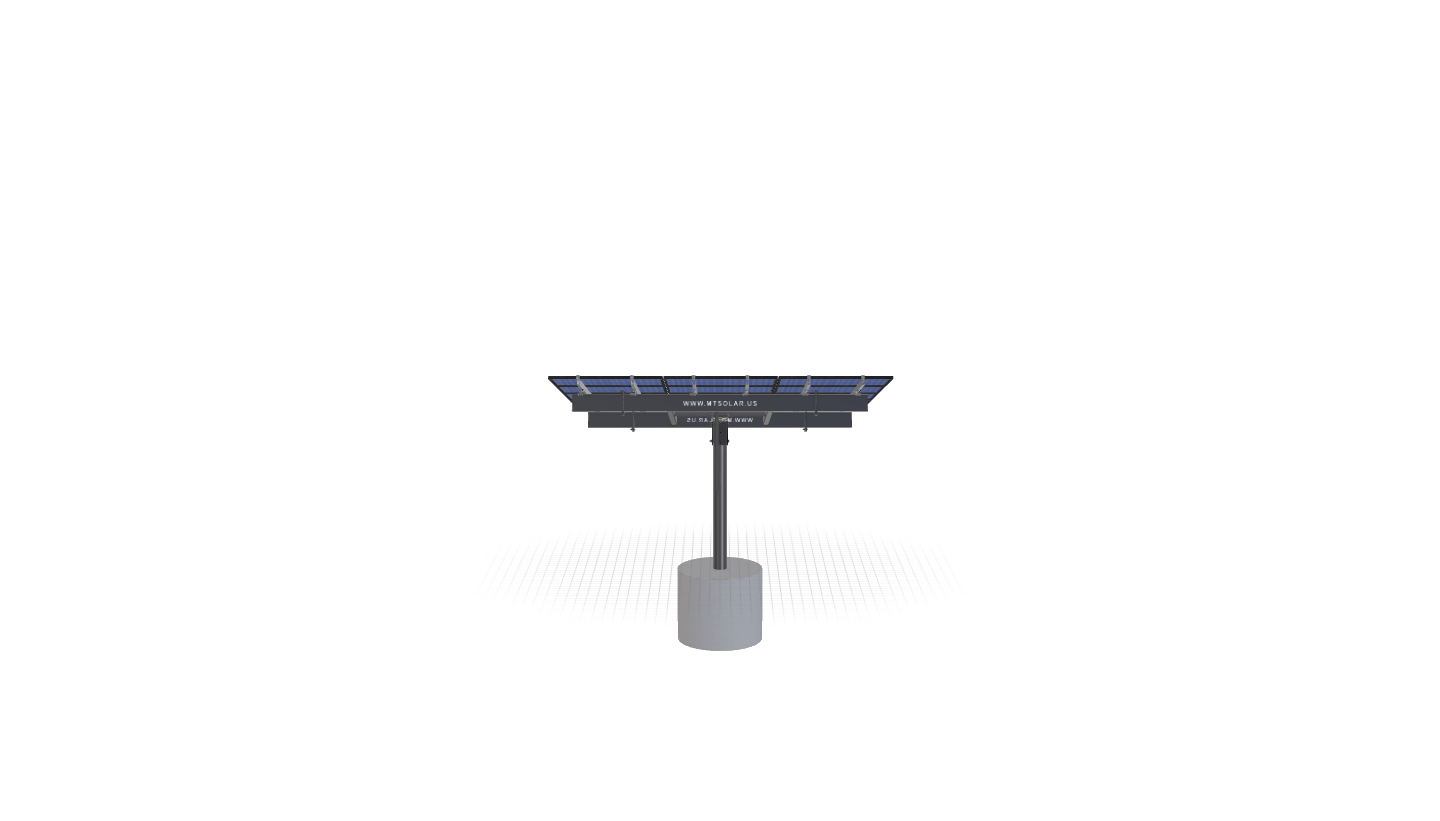

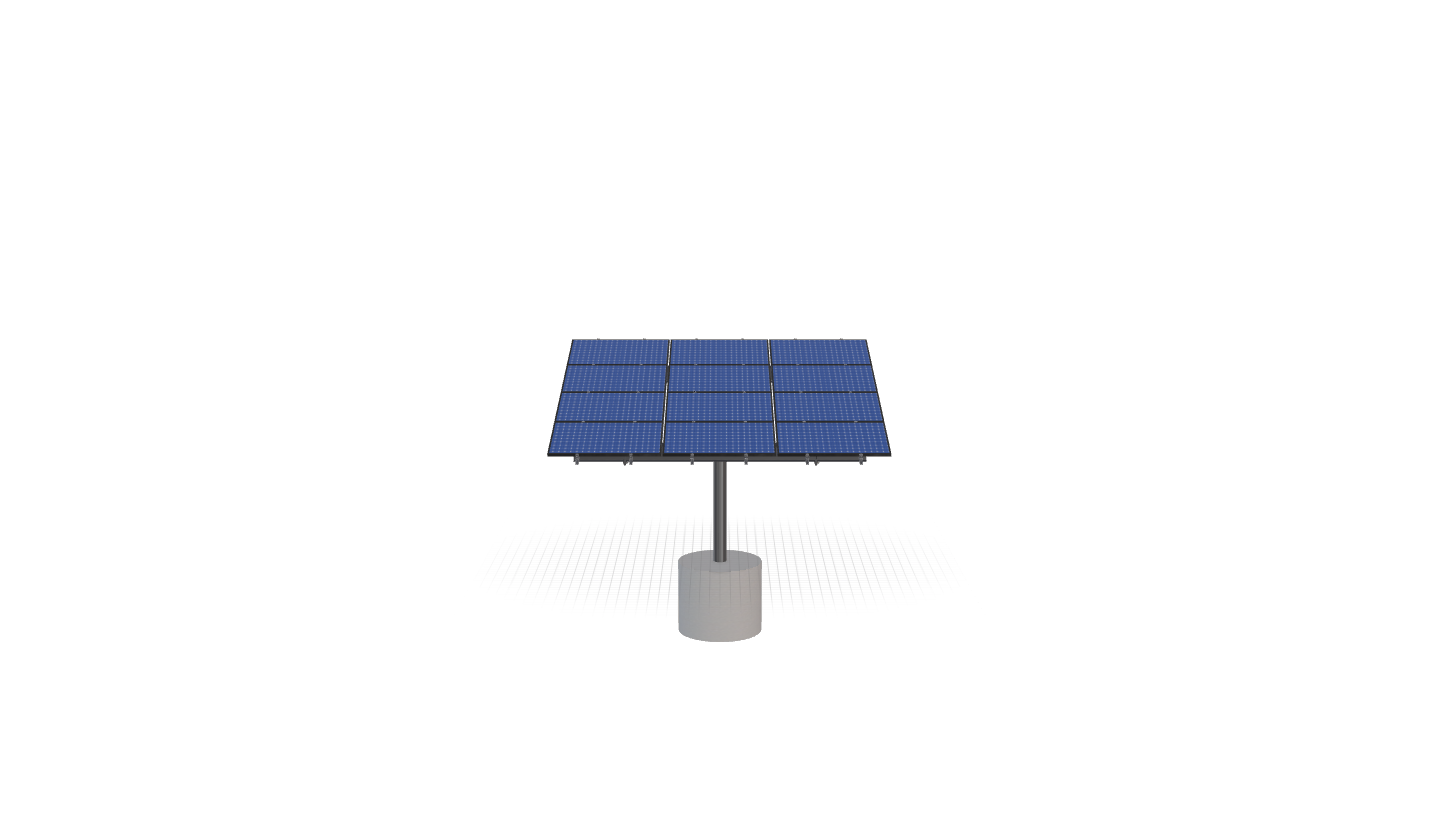

See 3D Model Here
1833HolmesRanchRd-RevA
$3,617.20
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 51.9 inches by 34.6 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 600.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-24-L-4HX3W-D102 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 6.51 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 3.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 138.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 154.73 |
| ARRAY WIDTH | 13.22 |
| ARRAY HEIGHT | 11.70 |
| RAIL LENGTH | 140.40 |
| MODULE LENGTH | 51.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 11.50 |
| GROUND TO TOP | 8.01 |
| PROJECTED PANEL HEIGHT | 2.99 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 1833HOLMESRANCHRD-REVA |
| SITE ADDRESS | 1833, HOLMES, RANCH, RD, PHILO, CA, 95466, USA |
| MODULE WIDTH | 34.60 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 3617.20 |
| TOTAL WEIGHT | 600.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/6a91dd8d-b1c2-49db-826d-ed08751c9dc5.pdf |
|
| ID | 466.00 |
| 3D Solar link |
