18BlueSpruceLnProject-JB-RevA

$8,496.69

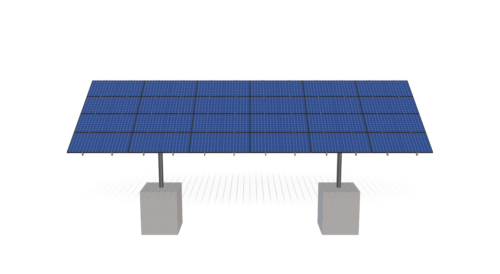

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-22.5-6TOP-SD-57-L-4Hx6W-2LHE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1522.32 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-6TOP-SD-57-L-4HX6W-2LHE

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

8.76

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.50

TILT ANGLE

33.00

CANTILEVER

474.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

575.32

ARRAY WIDTH

41.72

ARRAY HEIGHT

13.79

RAIL LENGTH

165.48

MODULE LENGTH

82.44

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

12.47

PROJECTED PANEL HEIGHT

7.42

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

18BLUESPRUCELNPROJECT-JB-REVA

SITE ADDRESS

18, BLUE, SPRUCE, LN, RIVERTON, WY, 82501, USA

MODULE WIDTH

40.87

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

8496.69

TOTAL WEIGHT

1522.32

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/4b4cac85-0d70-4634-8e88-1e4f5600aec5.pdf

ID

363.00
