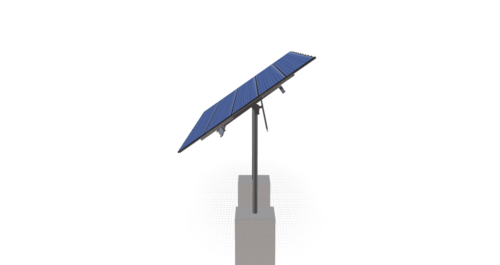

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 5 wide by 5 high.

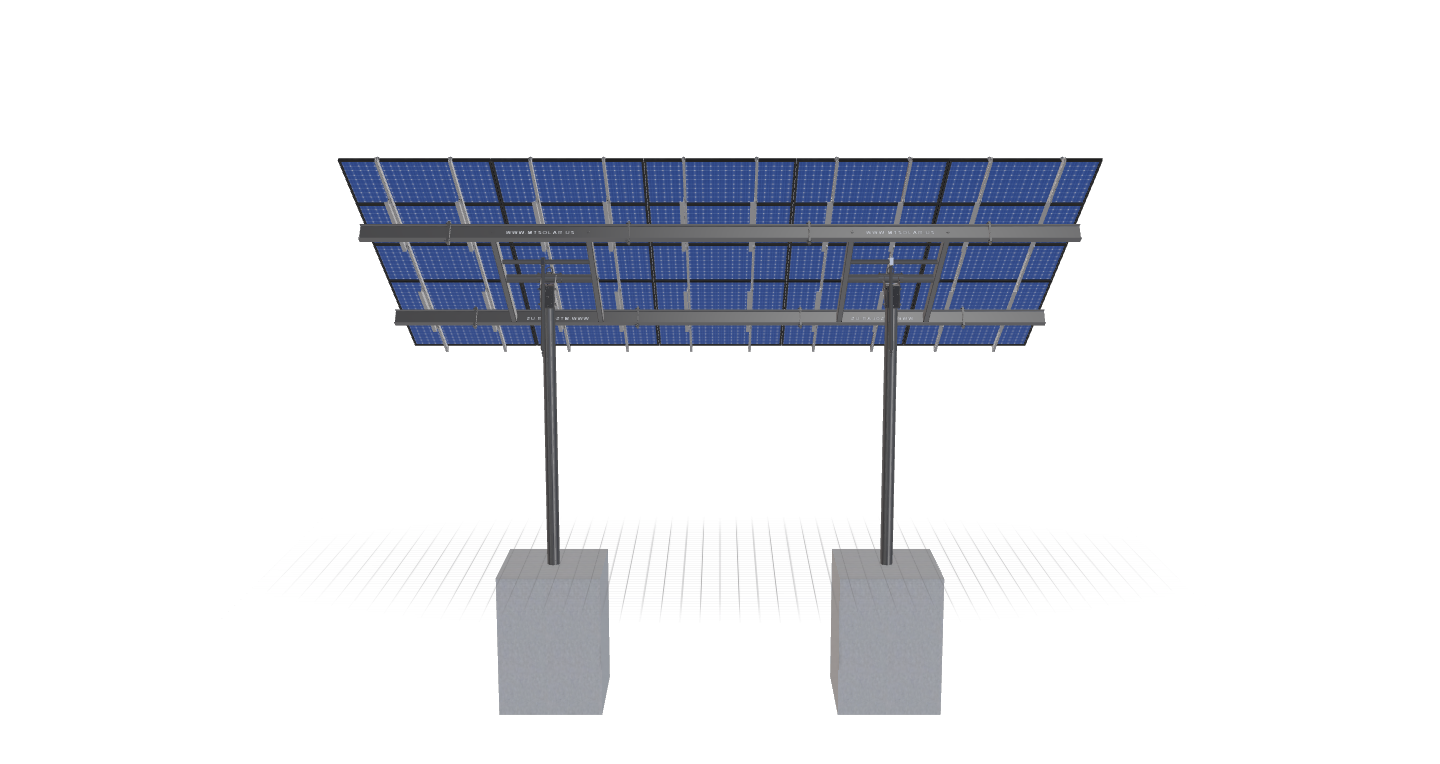

This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
201 FOX STAGE 1_rev.cu.b
$10,456.08
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 71.7 inches by 40 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2072.2999999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-8TOP-XD-45-L-5HX5W-EJ9H |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 12.84 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 2.00 |
| MODULE AREA | 511.17 |
| ARRAY WIDTH | 30.29 |
| ARRAY HEIGHT | 16.88 |
| RAIL LENGTH | 202.50 |
| MODULE LENGTH | 71.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 17.62 |
| PROJECTED PANEL HEIGHT | 9.56 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 201, FOX, STAGE, 1, REV.CU.B |
| SITE ADDRESS | 201, FOX, ST, MADAWASKA, ME, 04756, USA |
| MODULE WIDTH | 40.00 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 10456.08 |
| TOTAL WEIGHT | 2072.30 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/29661432-84f4-4e6c-a7d8-aa2d25ccd906.pdf |
|
| ID | 460.00 |
| 3D Solar link |
