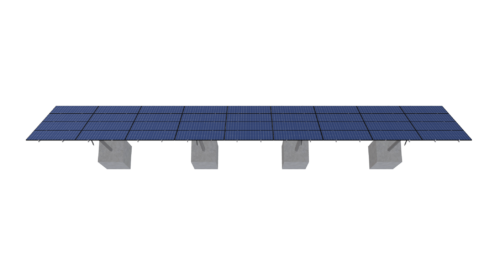

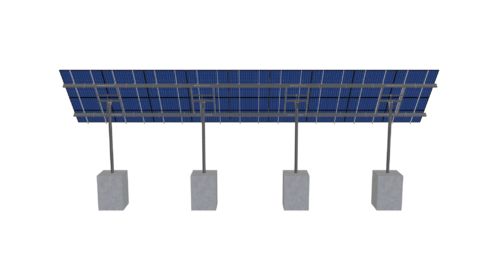

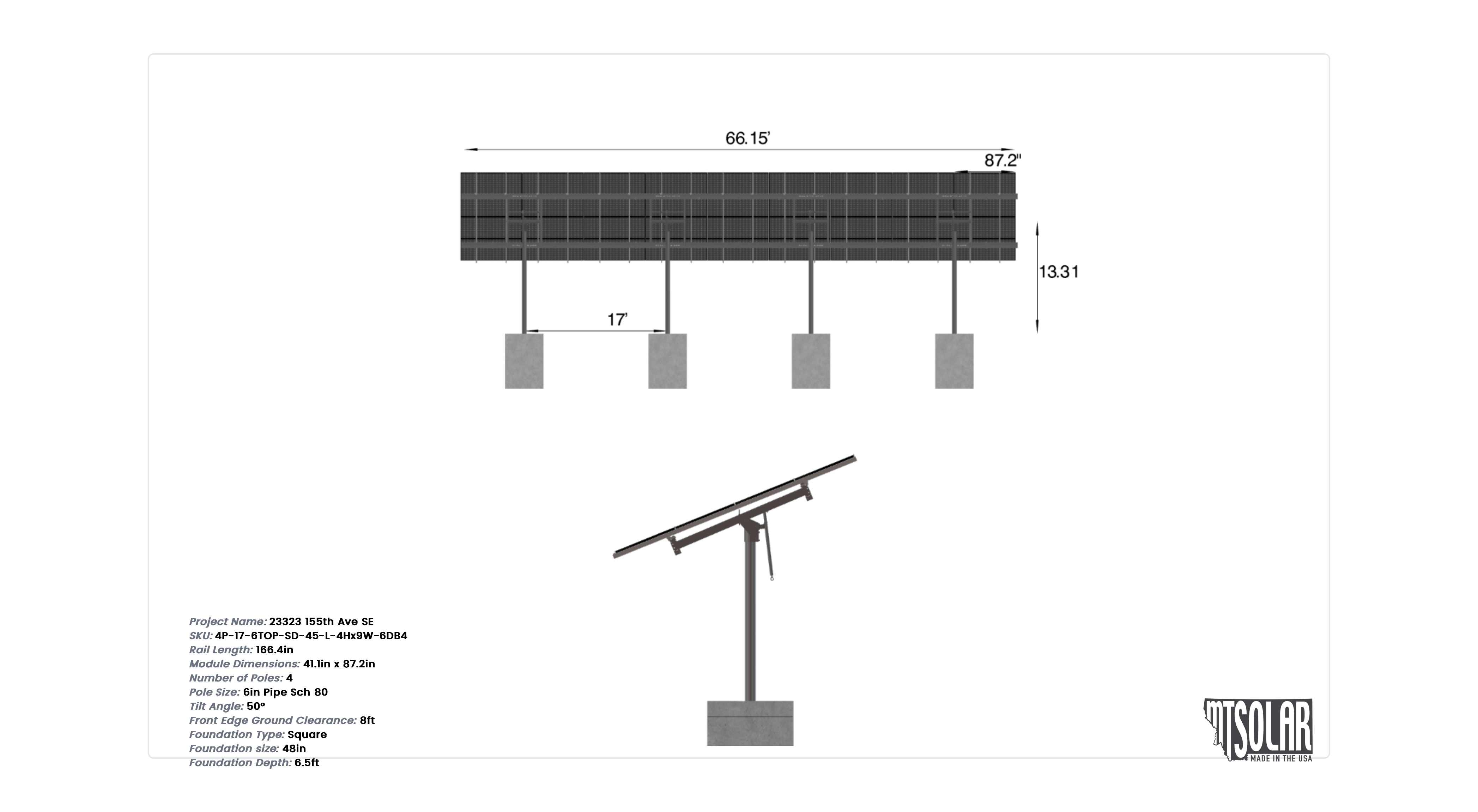

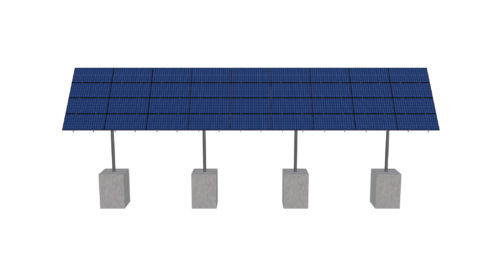

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
23323 155th Ave SE
$15,250.67
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 9 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2722.98 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-17-6TOP-SD-45-L-4HX9W-6DB4 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 13.31 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 792.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 4.00 |
| MODULE AREA | 917.28 |
| ARRAY WIDTH | 66.15 |
| ARRAY HEIGHT | 13.87 |
| RAIL LENGTH | 166.40 |
| MODULE LENGTH | 87.20 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 66.00 |
| GROUND TO TOP | 18.56 |
| PROJECTED PANEL HEIGHT | 10.49 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ERICH, NIELSEN |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 23323, 155TH, AVE, SE |
| SITE ADDRESS | 23323, 155TH, AVE, SE, SNOHOMISH, WA, 98296, USA |
| MODULE WIDTH | 41.10 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 9.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15250.67 |
| TOTAL WEIGHT | 2722.98 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/d0adb045-d02e-4a5a-8604-c56b45142e11.pdf |
|
| ID | 8054.00 |
| 3D Solar link |
