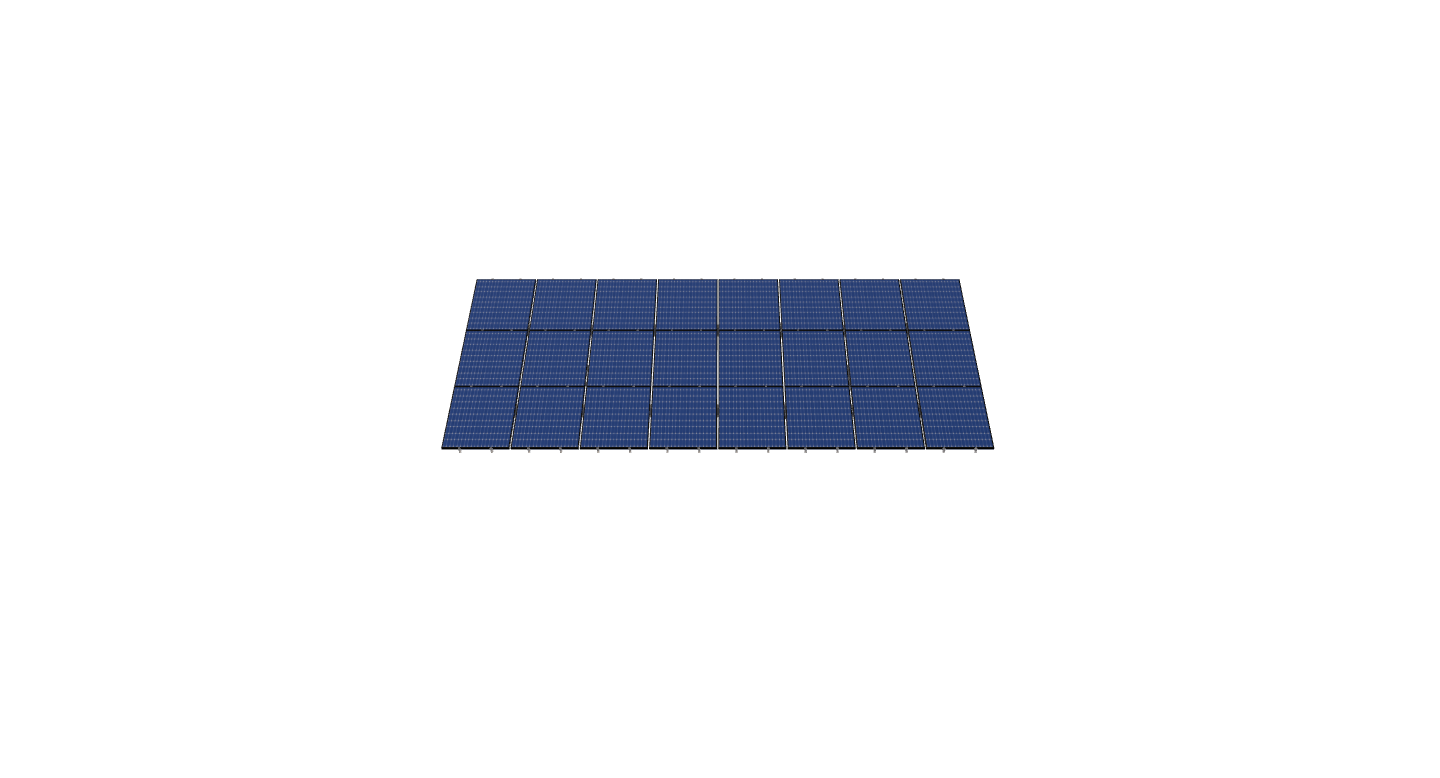

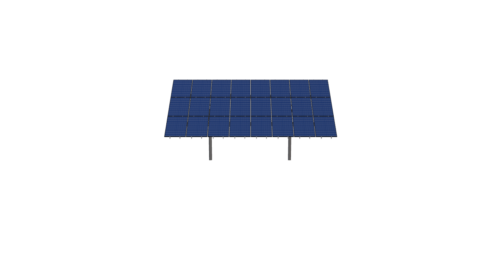

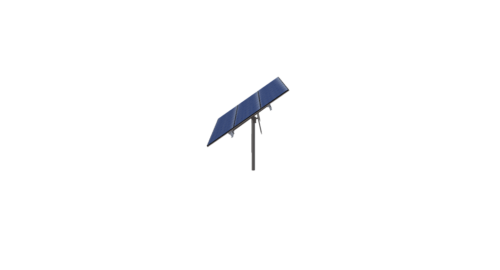

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.7 inches by 63.2 inches and an array layout of 8 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
2×8 Whitefish Community Solar
$8,876.53
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 44.7 inches by 63.2 inches and an array layout of 8 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1576.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-HD-45-L-3HX8W-8IH3 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 9.57 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 999999.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 360.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 485.18 |
| ARRAY WIDTH | 30.47 |
| ARRAY HEIGHT | 15.93 |
| RAIL LENGTH | 191.10 |
| MODULE LENGTH | 44.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 30.00 |
| GROUND TO TOP | 14.13 |
| PROJECTED PANEL HEIGHT | 9.13 |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | 2X8, WHITEFISH, COMMUNITY, SOLAR |
| SITE ADDRESS | 350, MONEGAN, RD, WHITEFISH, MT, 59937, USA |
| MODULE WIDTH | 63.20 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 24.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 99.00 |
| SNOW LOAD OVERRIDE | 62.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 8876.53 |
| TOTAL WEIGHT | 1576.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/d5078db7-3c90-4c19-a49d-b4bb9e540e1e.pdf |
|
| ID | 8721.00 |
| 3D Solar link |
