375 Wenzel

$15,100.60

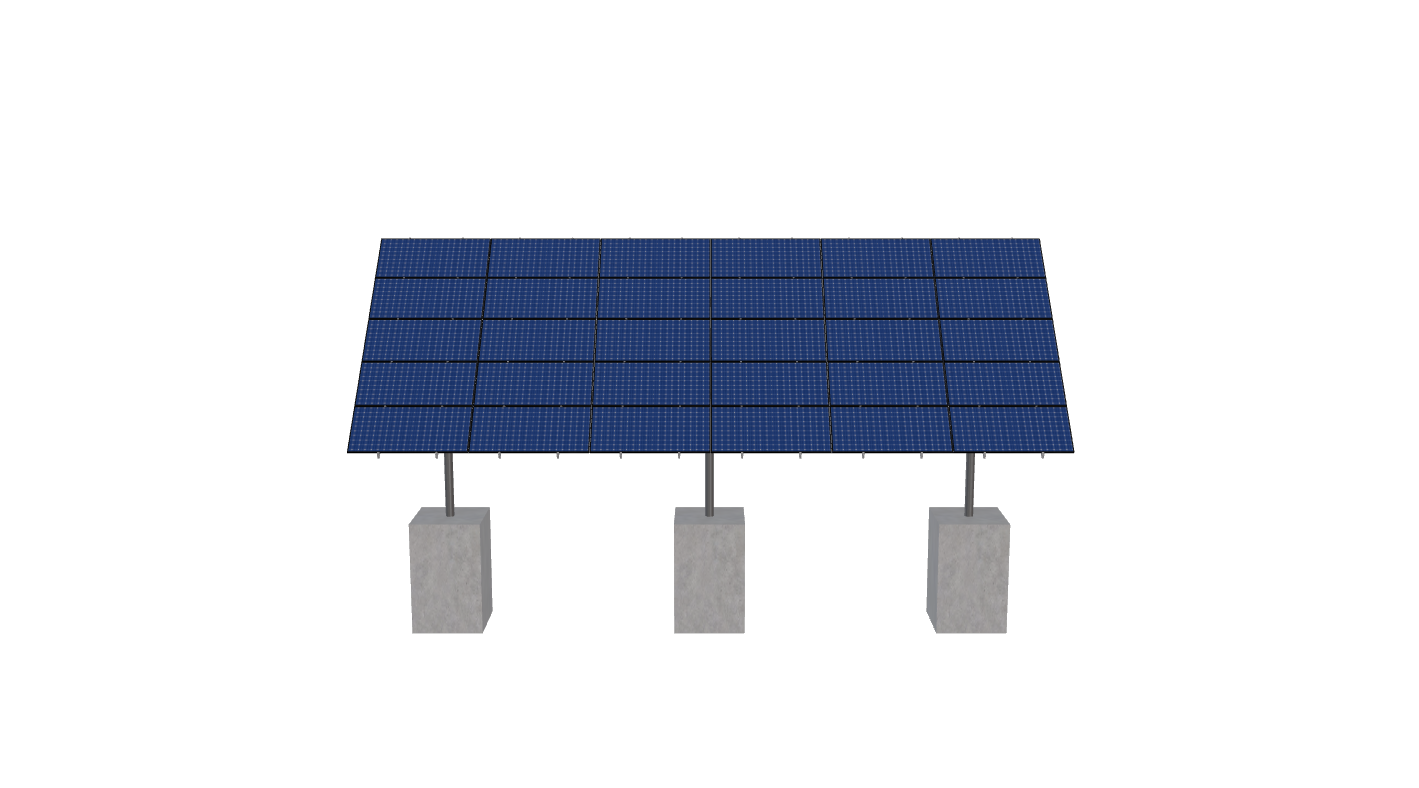

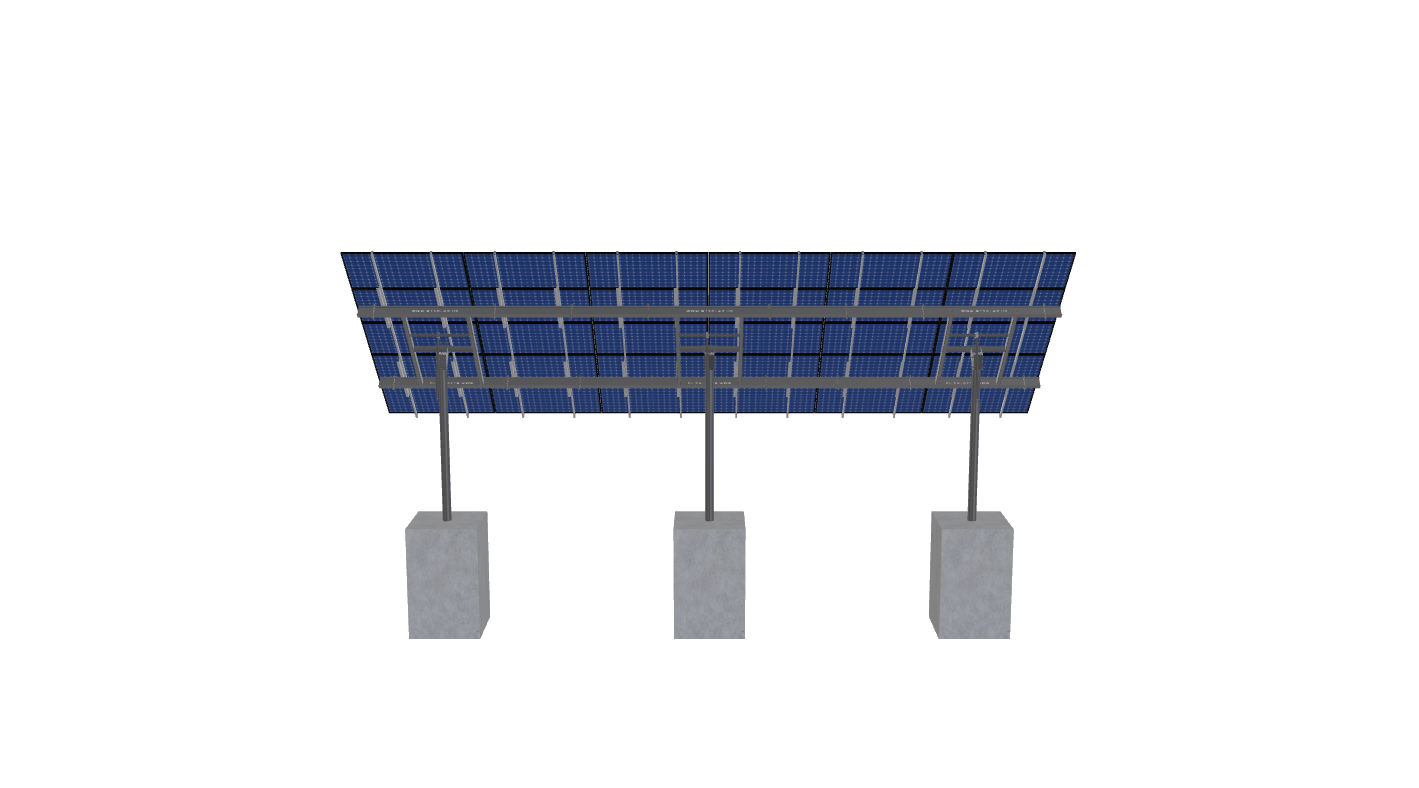

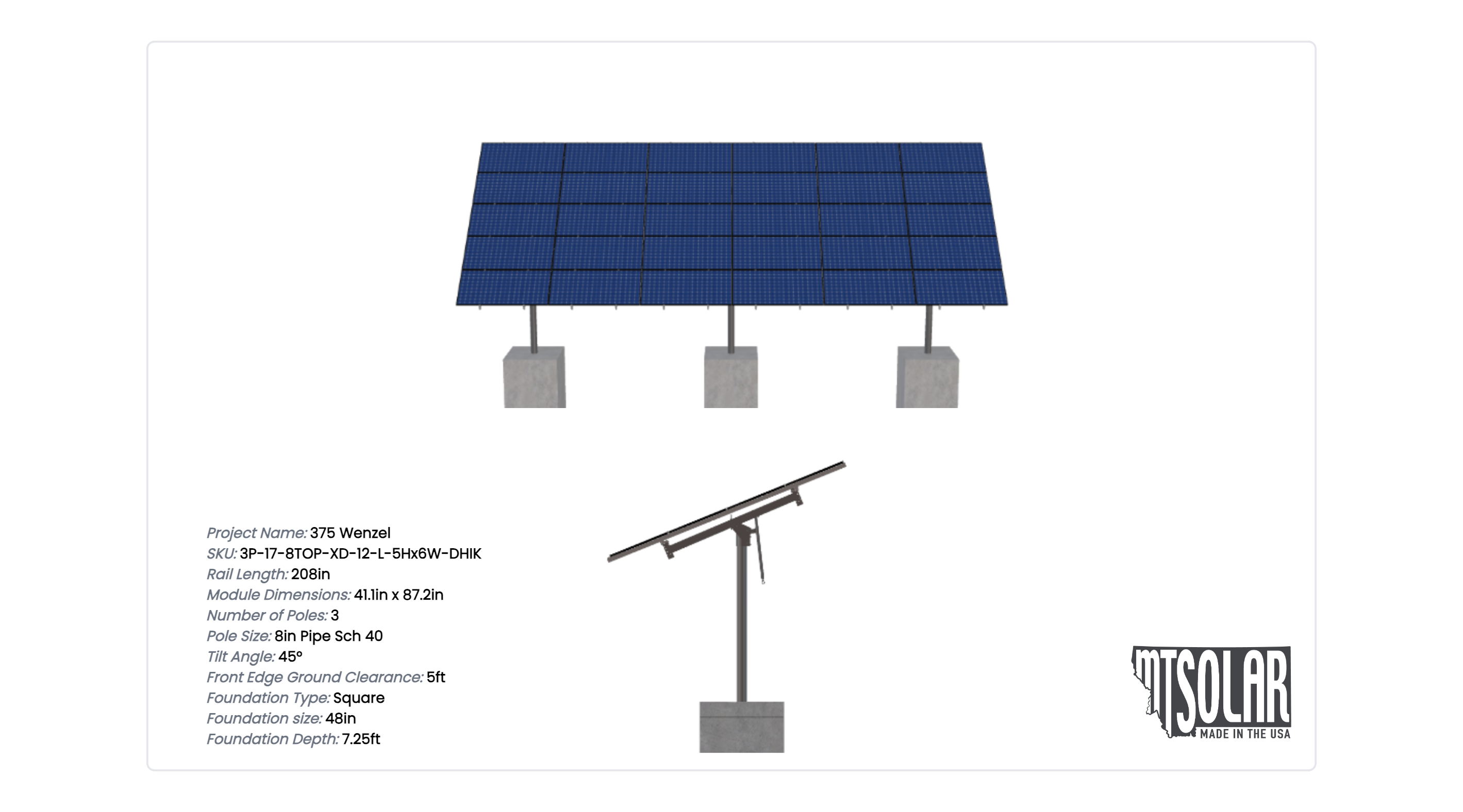

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-17-8TOP-XD-12-L-5Hx6W-DHIK Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.2 inches by 41.1 inches and an array layout of 6 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2984.49 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-17-8TOP-XD-12-L-5HX6W-DHIK

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

17.00

POLE HEIGHT

11.13

WING SPAN

12.00

MAX FOUNDATION DEPTH

7.25

TILT ANGLE

45.00

CANTILEVER

522.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

764.40

ARRAY WIDTH

44.10

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

87.20

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

43.50

GROUND TO TOP

17.18

PROJECTED PANEL HEIGHT

12.11

PROJECT ID

375, WENZEL

SITE ADDRESS

375, WENZEL, LN, WILSON, WY, 83014, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

120.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

15100.60

TOTAL WEIGHT

2984.49

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/2b768c40-3b42-4c25-98f6-1b96f43a7a3f.pdf

ID

6598.00
