3912EAVERYLN

$15,682.80

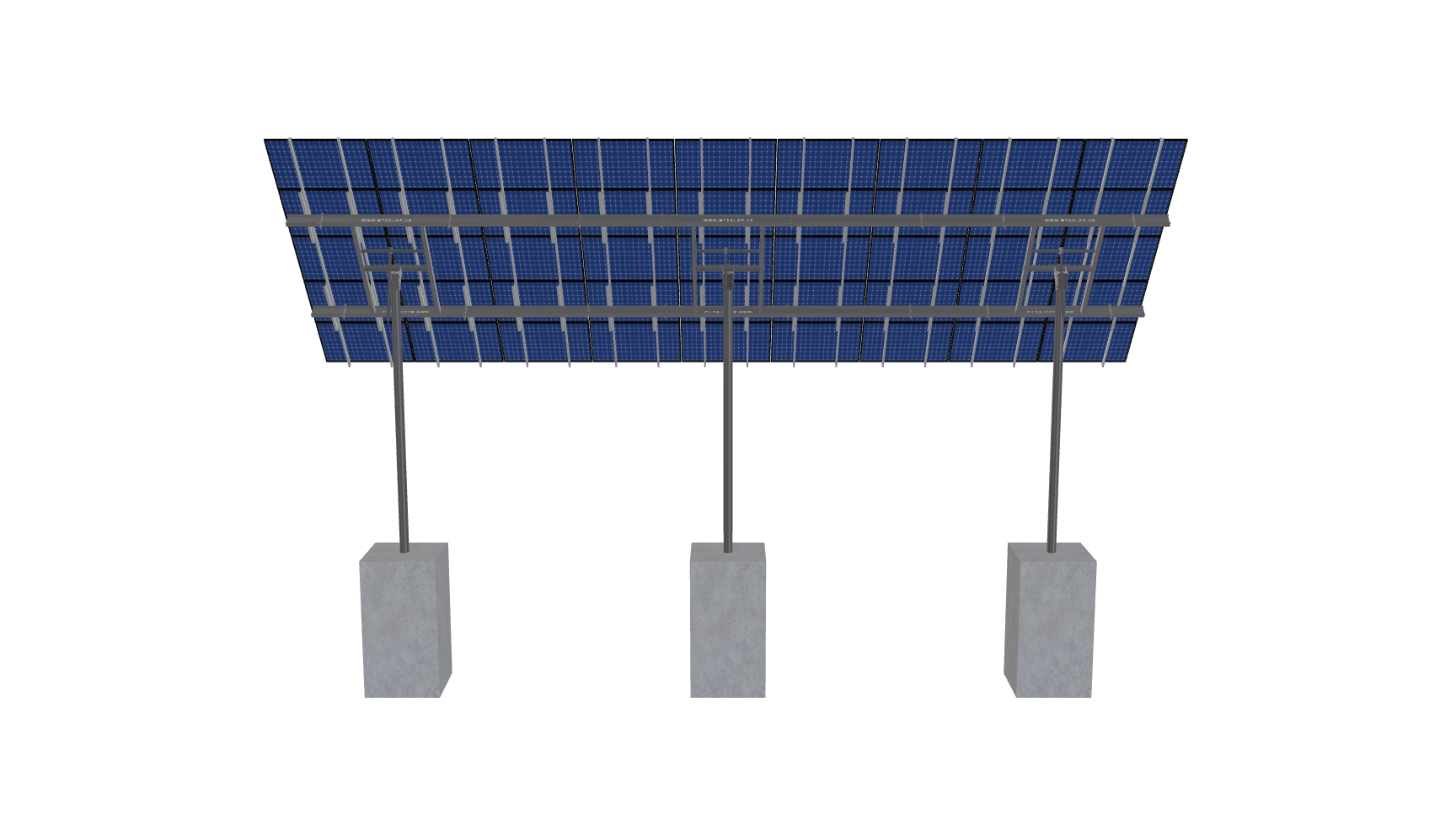

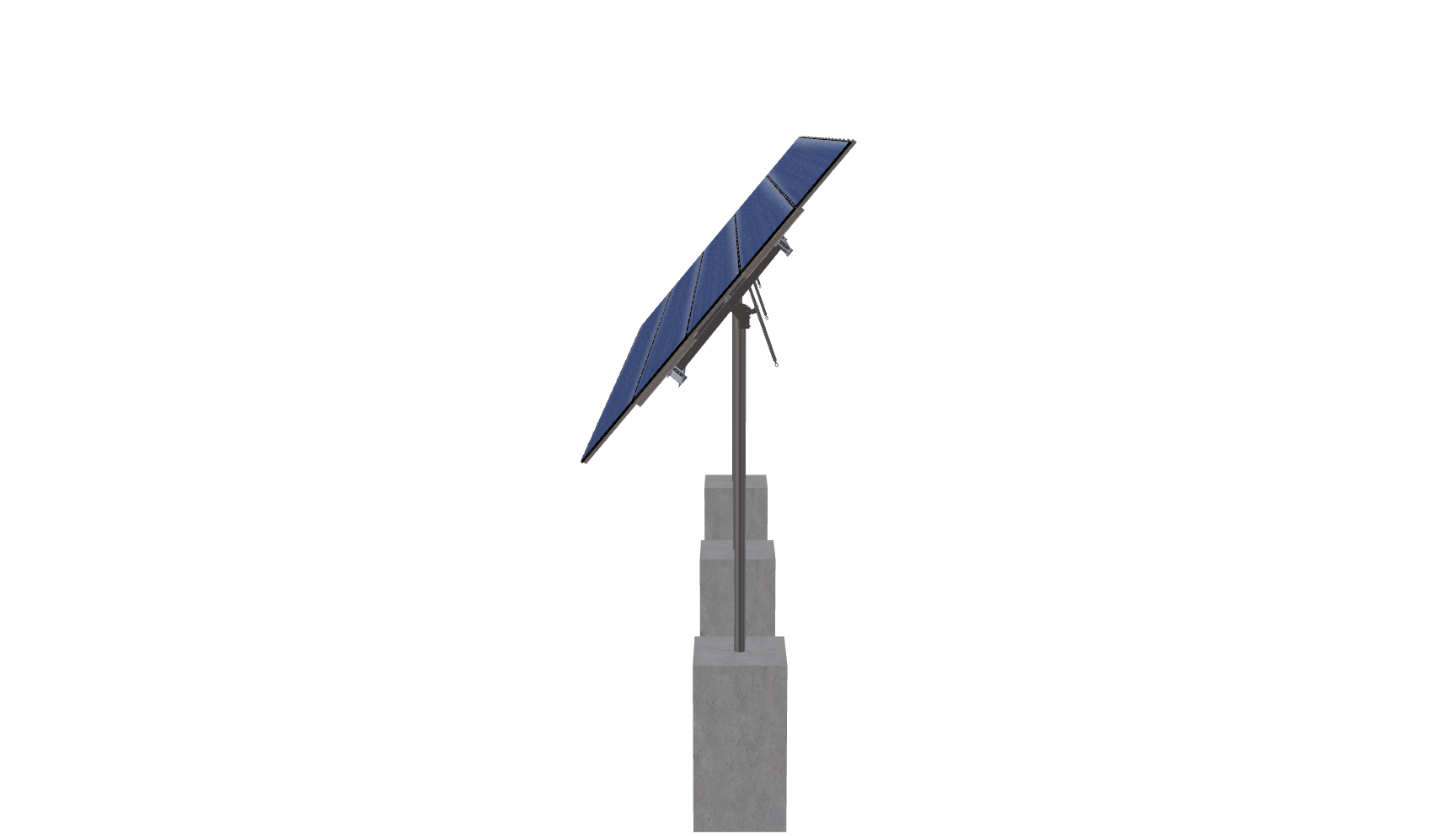

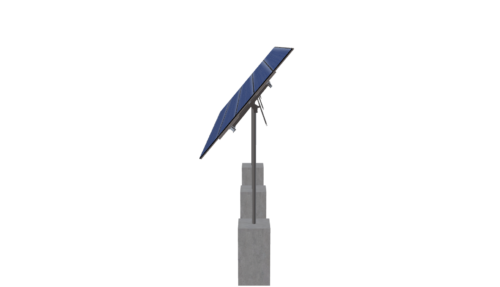

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

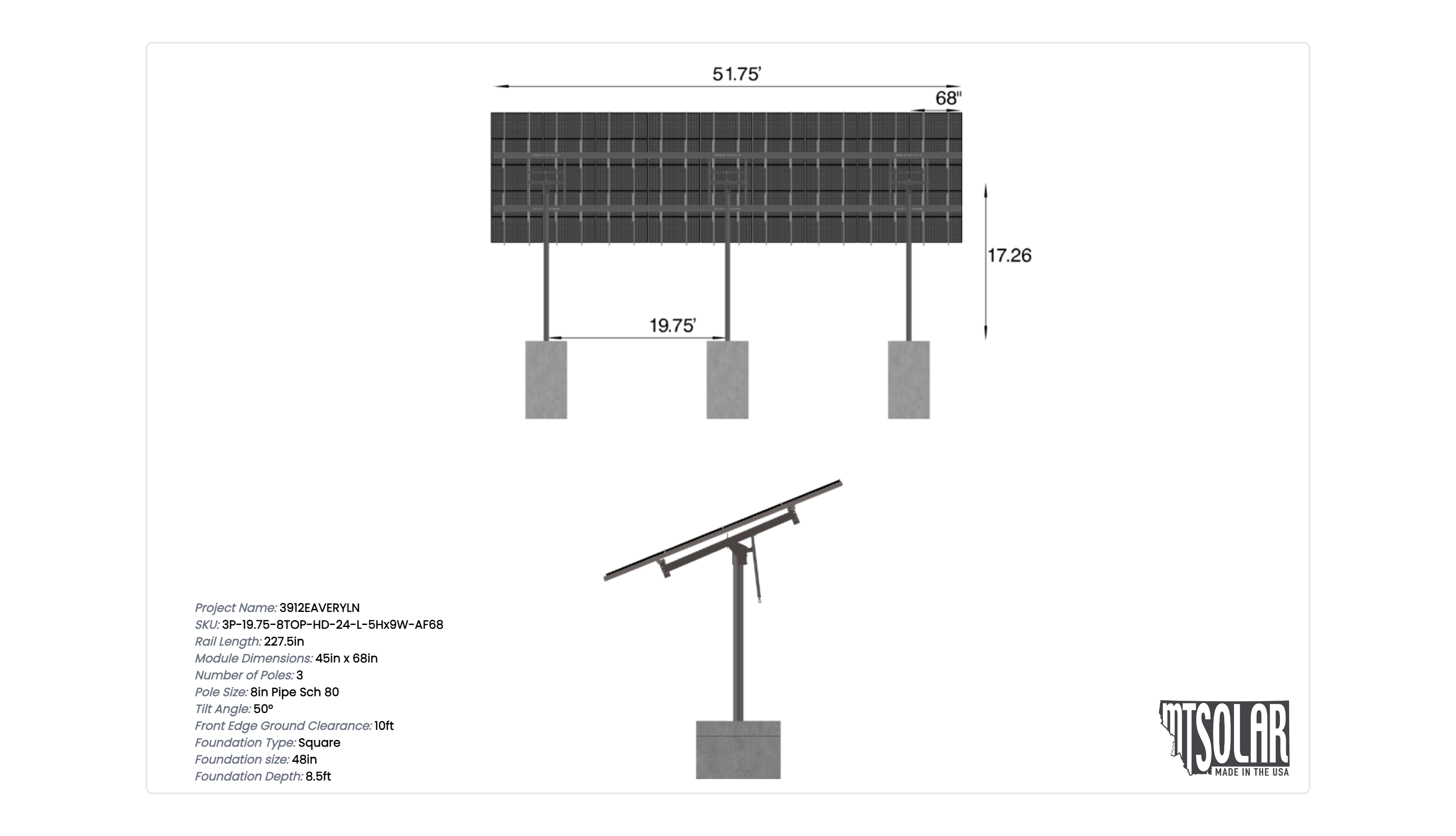

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-8TOP-HD-24-L-5Hx9W-AF68 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 9 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3138.69 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-8TOP-HD-24-L-5HX9W-AF68

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

17.26

WING SPAN

24.00

MAX FOUNDATION DEPTH

8.50

TILT ANGLE

50.00

CANTILEVER

612.00

GROUND CLEARANCE

10.00

NO POLES

3.00

MODULE AREA

981.09

ARRAY WIDTH

51.75

ARRAY HEIGHT

18.96

RAIL LENGTH

227.50

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

51.00

GROUND TO TOP

24.44

PROJECTED PANEL HEIGHT

14.36

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

3912EAVERYLN

SITE ADDRESS

3912, E, AVERY, LN, COEUR, D'ALENE, ID, 83814, USA

MODULE WIDTH

45.00

NUMBER ROWS

5.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

15682.80

TOTAL WEIGHT

3138.69

TOTAL PALLETS

3.00
