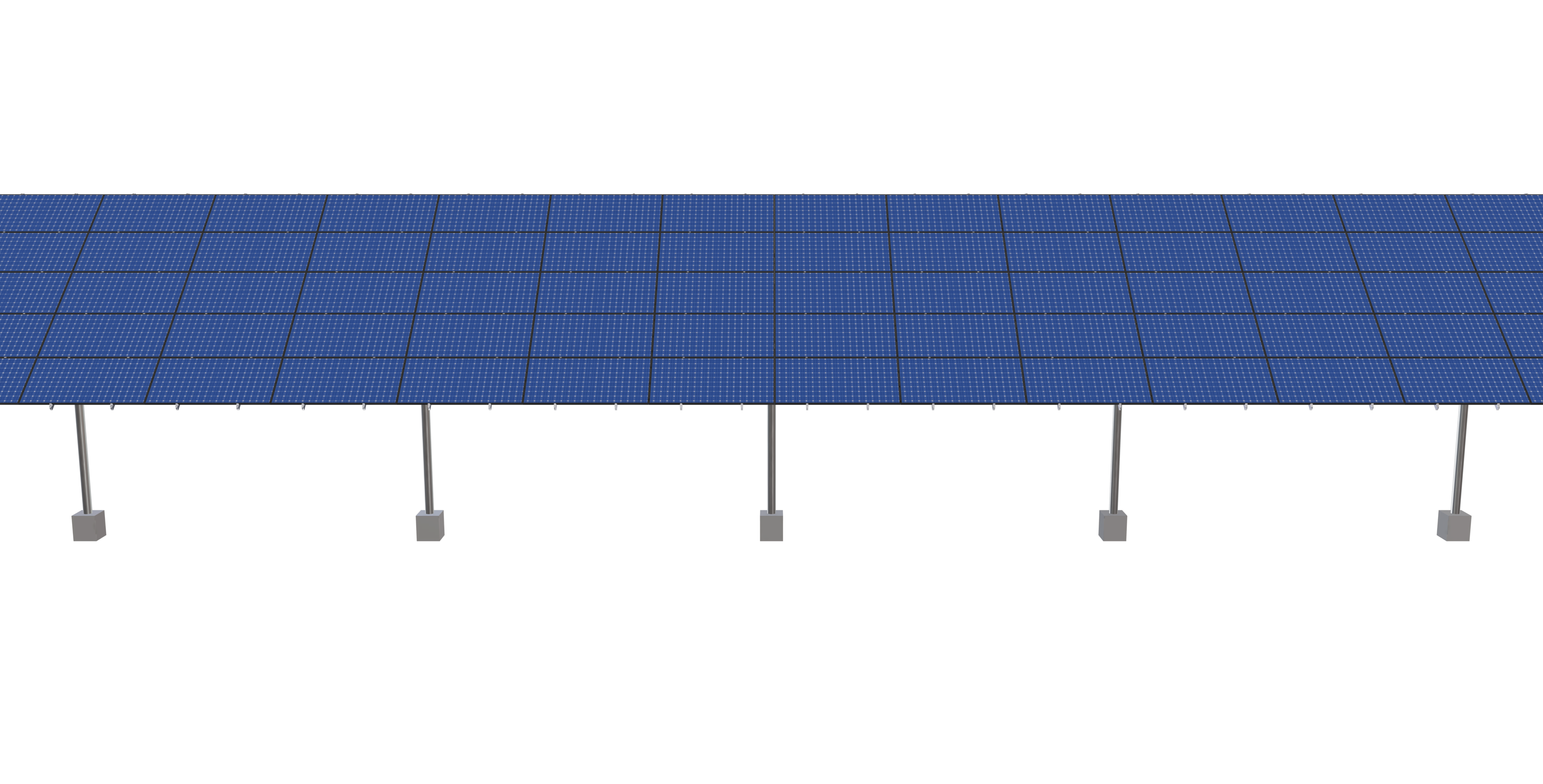

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 14 wide by 5 high.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
3978713945JBRevA_2_17_2023_12_49_23_PM
$30,650.56
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.72 inches by 44.65 inches and an array layout of 5 high by 14 wide.
This mount fits on 5 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 6257.31 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-10TOP-XD-45-L-5HX14W |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 14.05 |
| WING SPAN | 45.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 40.00 |
| CANTILEVER | 1260.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1991.11 |
| ARRAY WIDTH | 105.84 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 89.72 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 105.00 |
| GROUND TO TOP | 20.03 |
| PROJECTED PANEL HEIGHT | 11.96 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 3978713945JBREVA |
| SITE ADDRESS | 2150, RULON, WHITE, BLVD, OGDEN, UT, 84404, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 14.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 30650.56 |
| TOTAL WEIGHT | 6257.31 |
| TOTAL PALLETS | 5.00 |
