3999866089_REV.CU.B

$7,227.11

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.84 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

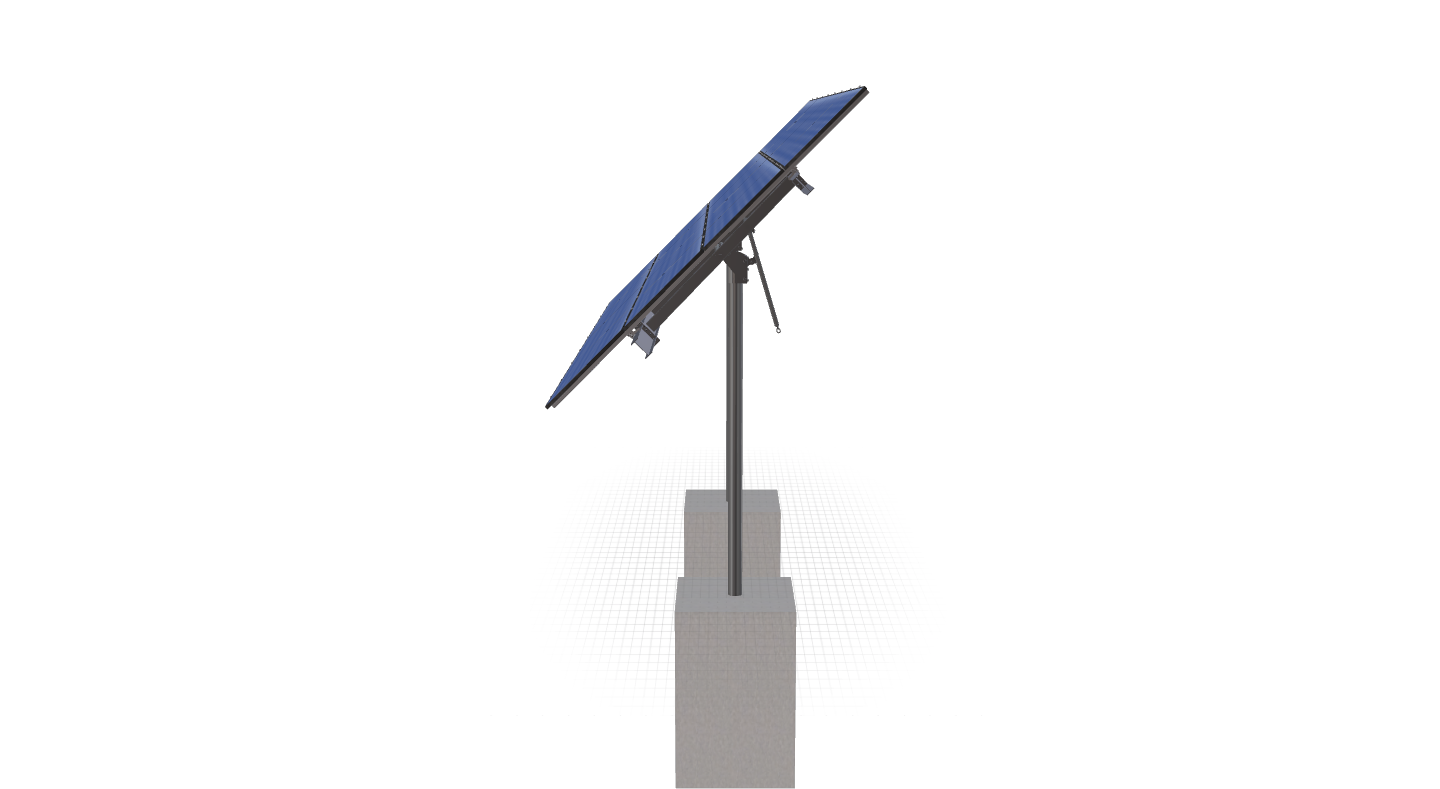

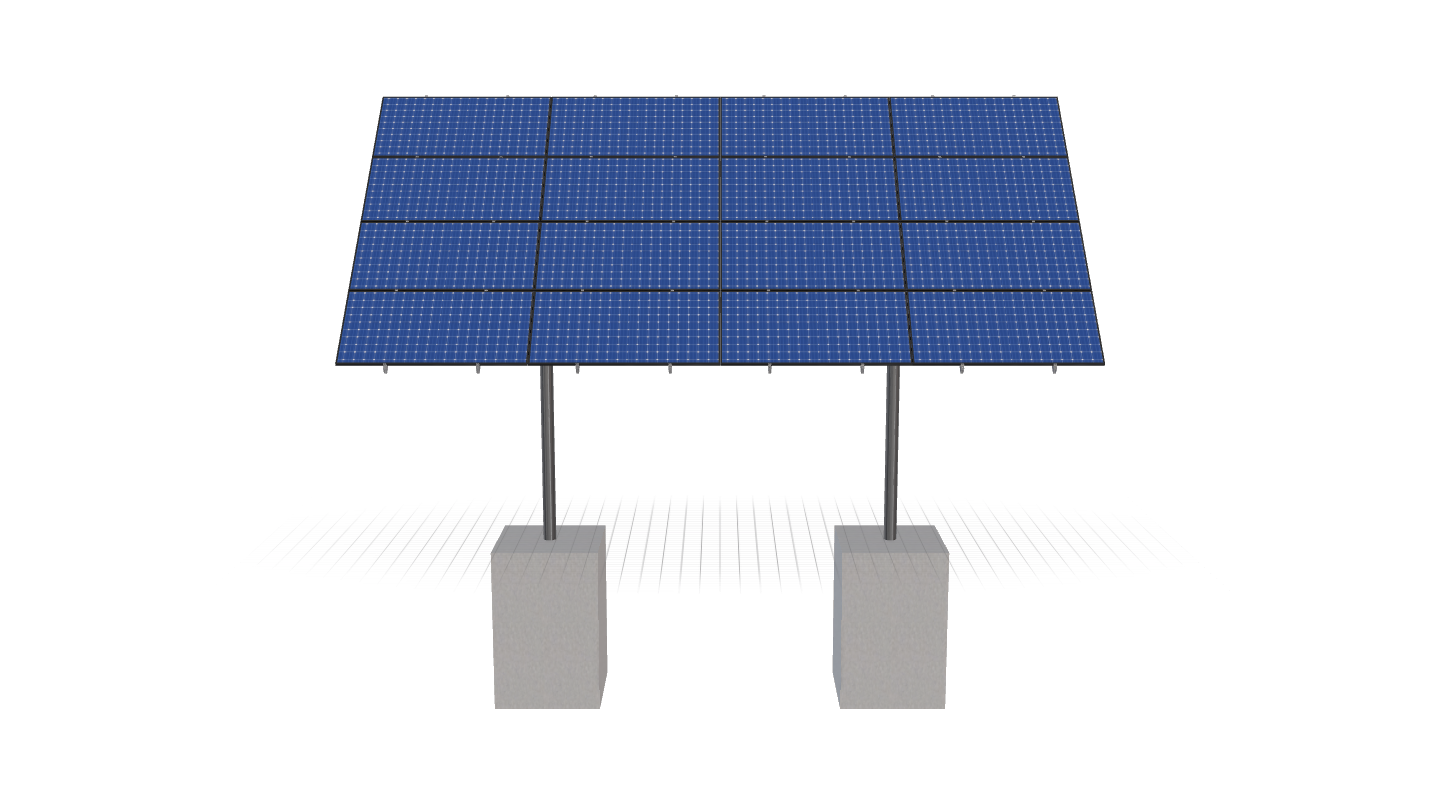

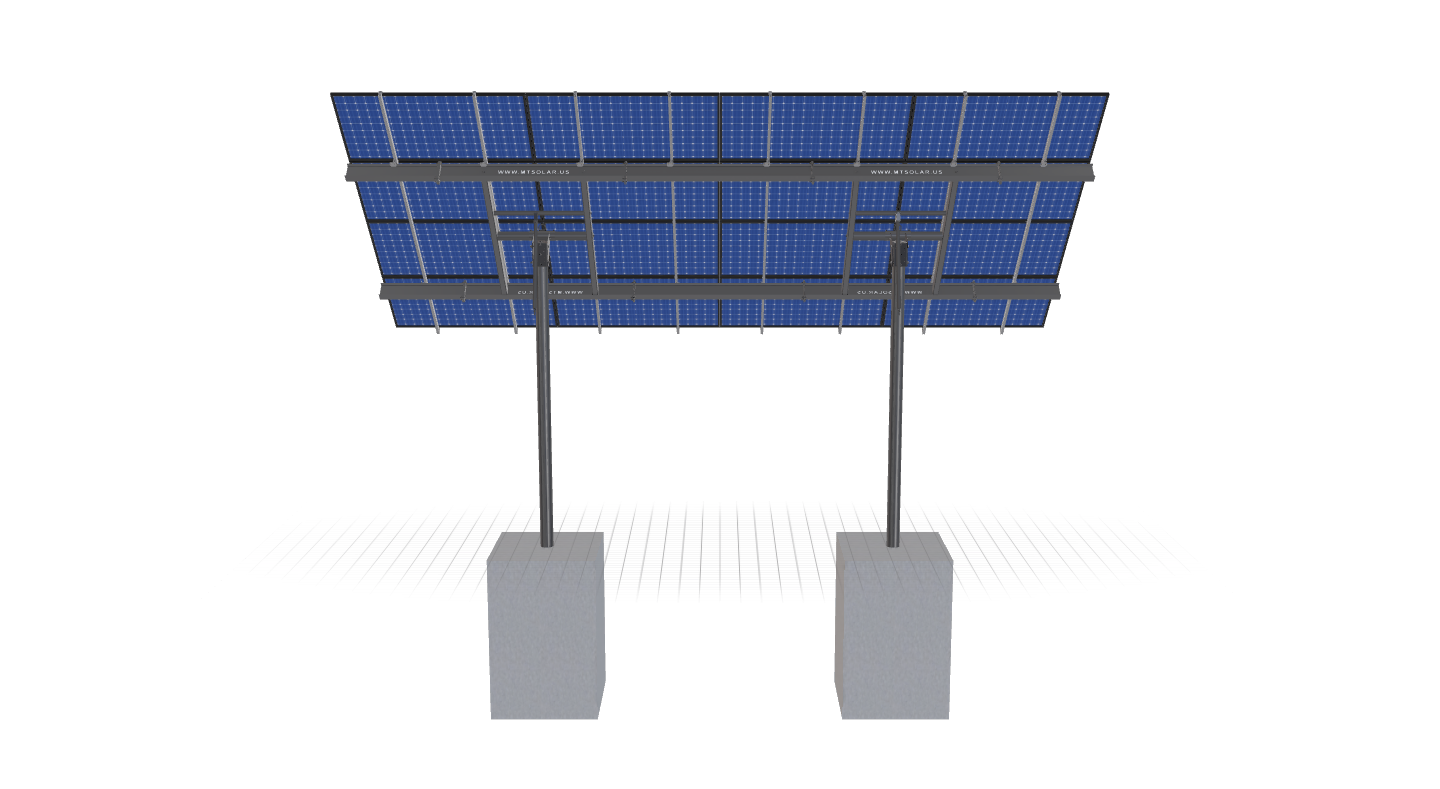

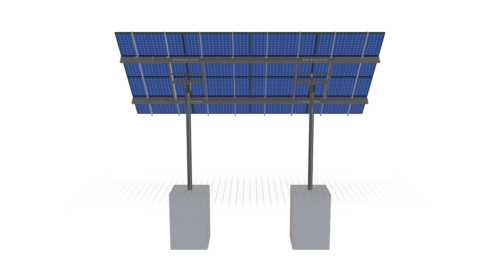

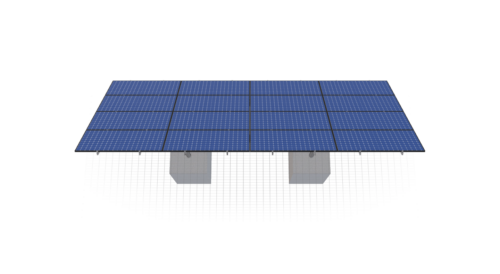

See 3D Model Here

SKU: 2P-15-8TOP-SD-45-L-4Hx4W-3J8F Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.68 inches by 44.84 inches and an array layout of 4 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1284.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-15-8TOP-SD-45-L-4HX4W-3J8F

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

15.00

POLE HEIGHT

13.34

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

45.00

CANTILEVER

360.00

GROUND CLEARANCE

8.00

NO POLES

2.00

MODULE AREA

456.83

ARRAY WIDTH

30.23

ARRAY HEIGHT

15.11

RAIL LENGTH

181.36

MODULE LENGTH

89.68

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

30.00

GROUND TO TOP

18.63

PROJECTED PANEL HEIGHT

10.57

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

3999866089, REV.CU.B

SITE ADDRESS

LUDERS, WY, BROOKLIN, ME, 04616, USA

MODULE WIDTH

44.84

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

7227.11

TOTAL WEIGHT

1284.38

TOTAL PALLETS

2.00
