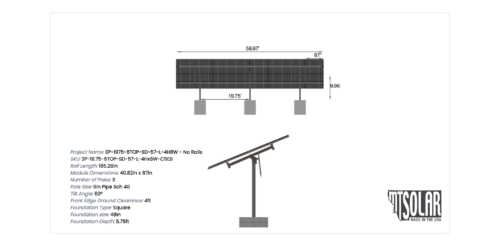

This Pole Mount is designed for modules with dimensions of 87″ by 40.82″ and an array layout of 4 high by 8 wide.
This mount fits on 3 – 6″ Sch 40 steel poles with a spacing of 19.75′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
3P-1975-6TOP-SD-57-L-4H8W – No Rails
$10,891.03
Description
This Pole Mount is designed for modules with dimensions of 87″ by 40.82″ and an array layout of 4 high by 8 wide.
This mount fits on 3 – 6″ Sch 40 steel poles with a spacing of 19.75′ (not included).
A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2208.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-6TOP-SD-57-L-4HX8W-C9EB |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 9.96 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 3.00 |
| MODULE AREA | 808.04 |
| ARRAY WIDTH | 58.67 |
| ARRAY HEIGHT | 13.77 |
| RAIL LENGTH | 165.28 |
| MODULE LENGTH | 87.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 15.86 |
| PROJECTED PANEL HEIGHT | 11.78 |
| DESIGNER EMAIL | |
| PROJECT ID | 3P-1975-6TOP-SD-57-L-4H8W, -, NO, RAILS |
| SITE ADDRESS | PETERBOROUGH, NH, 03458, USA |
| MODULE WIDTH | 40.82 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 95.00 |
| SNOW LOAD OVERRIDE | 75.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 12292.41 |
| TOTAL WEIGHT | 2208.76 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/79f64f02-4f63-46eb-9300-b7b3034cbd32.pdf |
|
| ID | 7785.00 |
| 3D Solar link |
