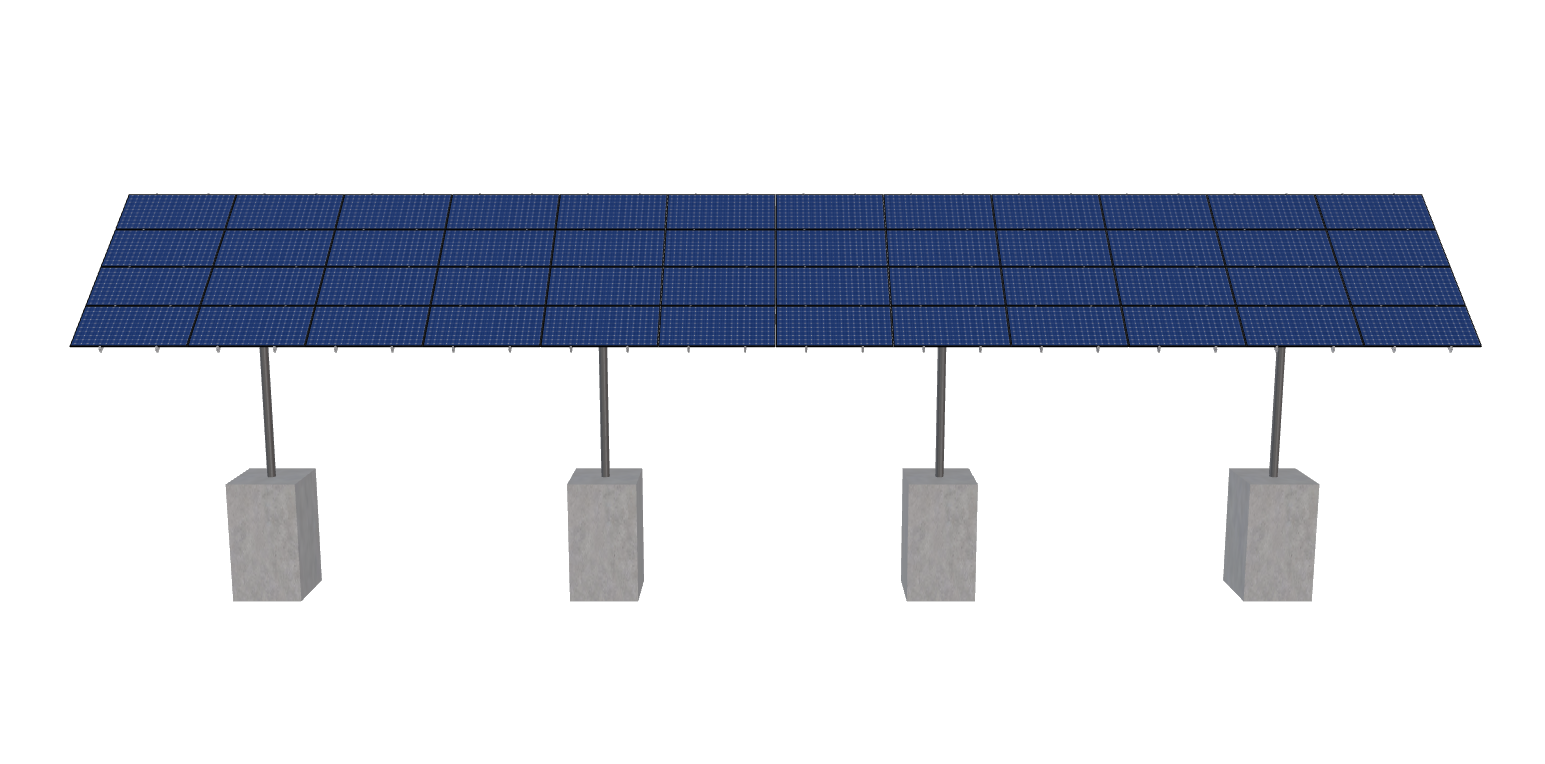

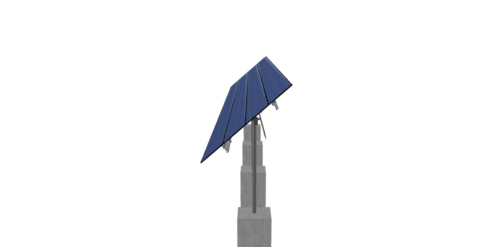

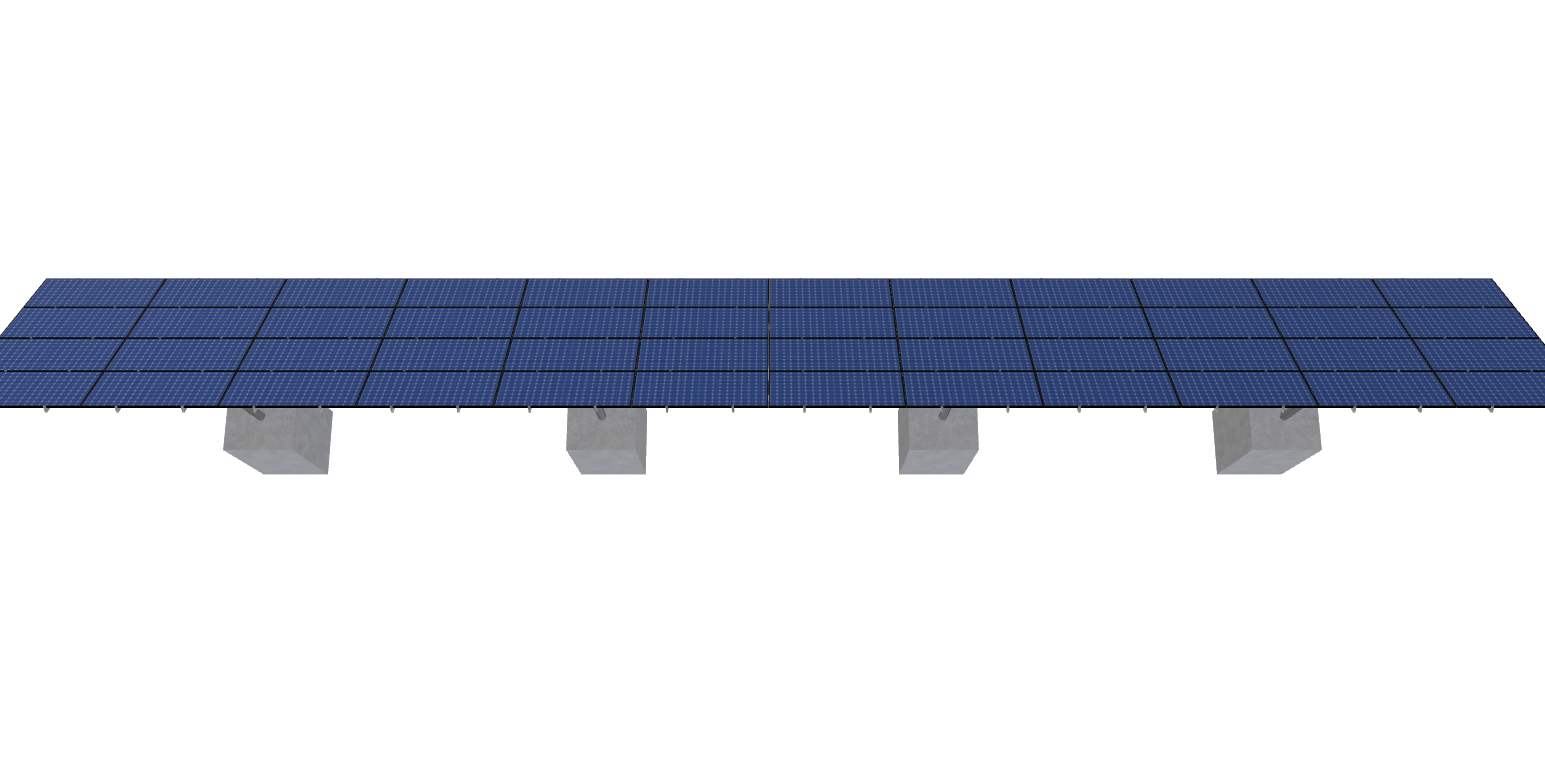

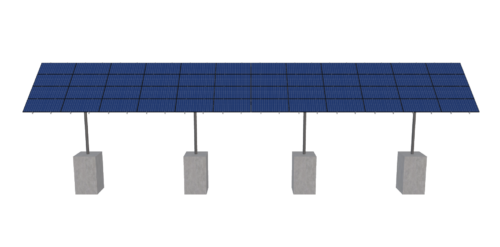

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.24 inches by 41.14 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
4 Carport Design 3×4 v2L
$20,250.34
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 87.24 inches by 41.14 inches and an array layout of 12 wide by 4 high.
This mount fits on 4 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3803.72 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-22.5-8TOP-HD-72-L-4HX12W-IJ85 |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 13.55 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 41.00 |
| CANTILEVER | 1044.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1224.77 |
| ARRAY WIDTH | 88.24 |
| ARRAY HEIGHT | 13.88 |
| RAIL LENGTH | 166.56 |
| MODULE LENGTH | 87.24 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 87.00 |
| GROUND TO TOP | 18.05 |
| PROJECTED PANEL HEIGHT | 9.00 |
| WIND SPEED OVERRIDE | 120.00 |
| SNOW LOAD OVERRIDE | 50.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | 4, CARPORT, DESIGN, 3X4, V2L |
| SITE ADDRESS | 966, 9TH, ST, OGDEN, UT, 84404, USA |
| MODULE WIDTH | 41.14 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 12.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 20250.34 |
| TOTAL WEIGHT | 3803.72 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/34346fa2-5261-48ff-881a-680f93e3848a.pdf |
|
| ID | 2085.00 |
| 3D Solar link |
