456 carport

$10,621.41

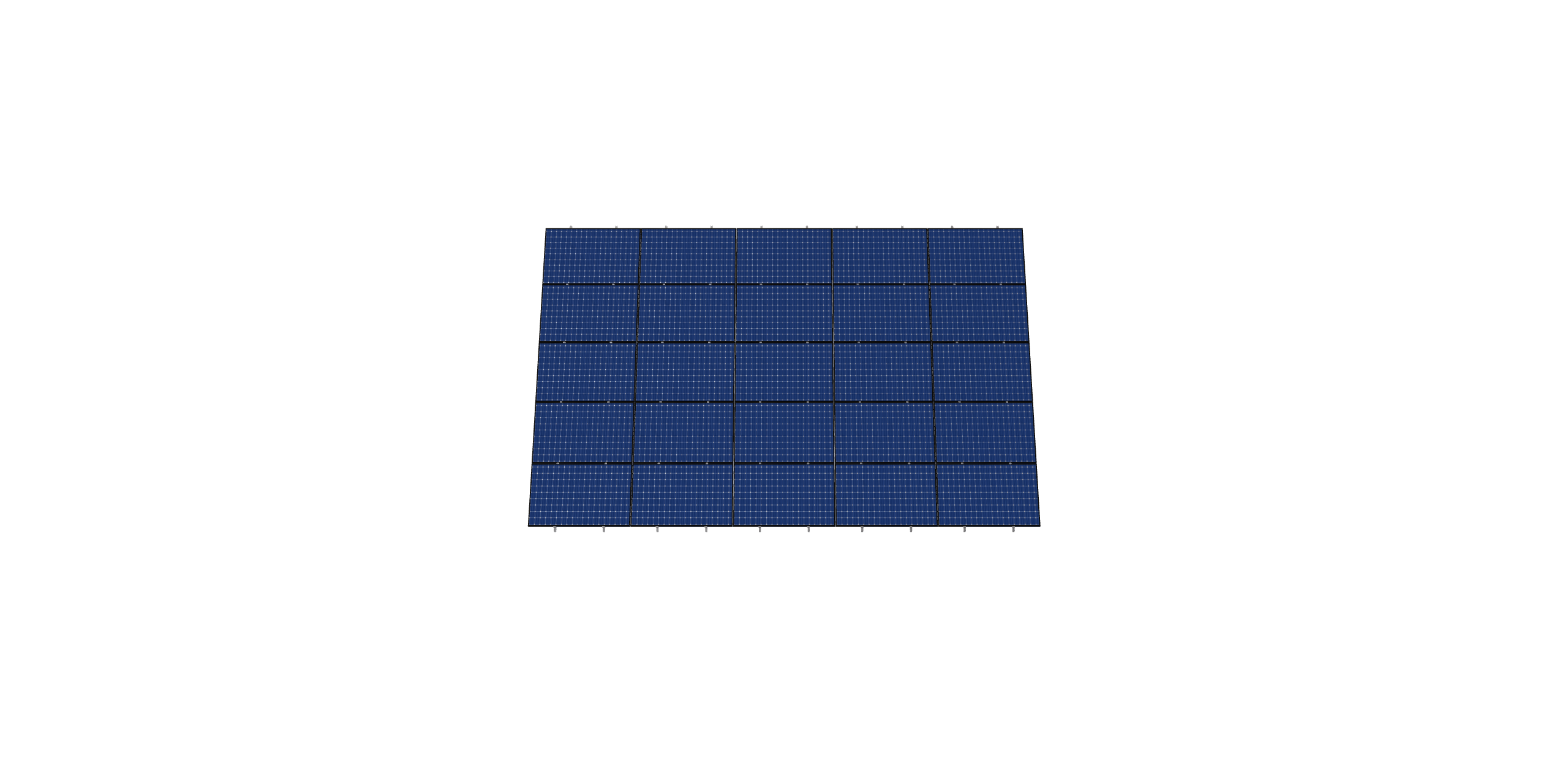

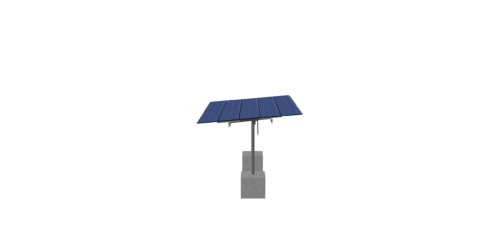

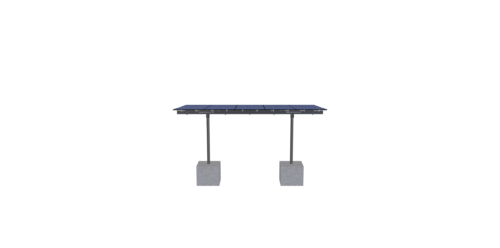

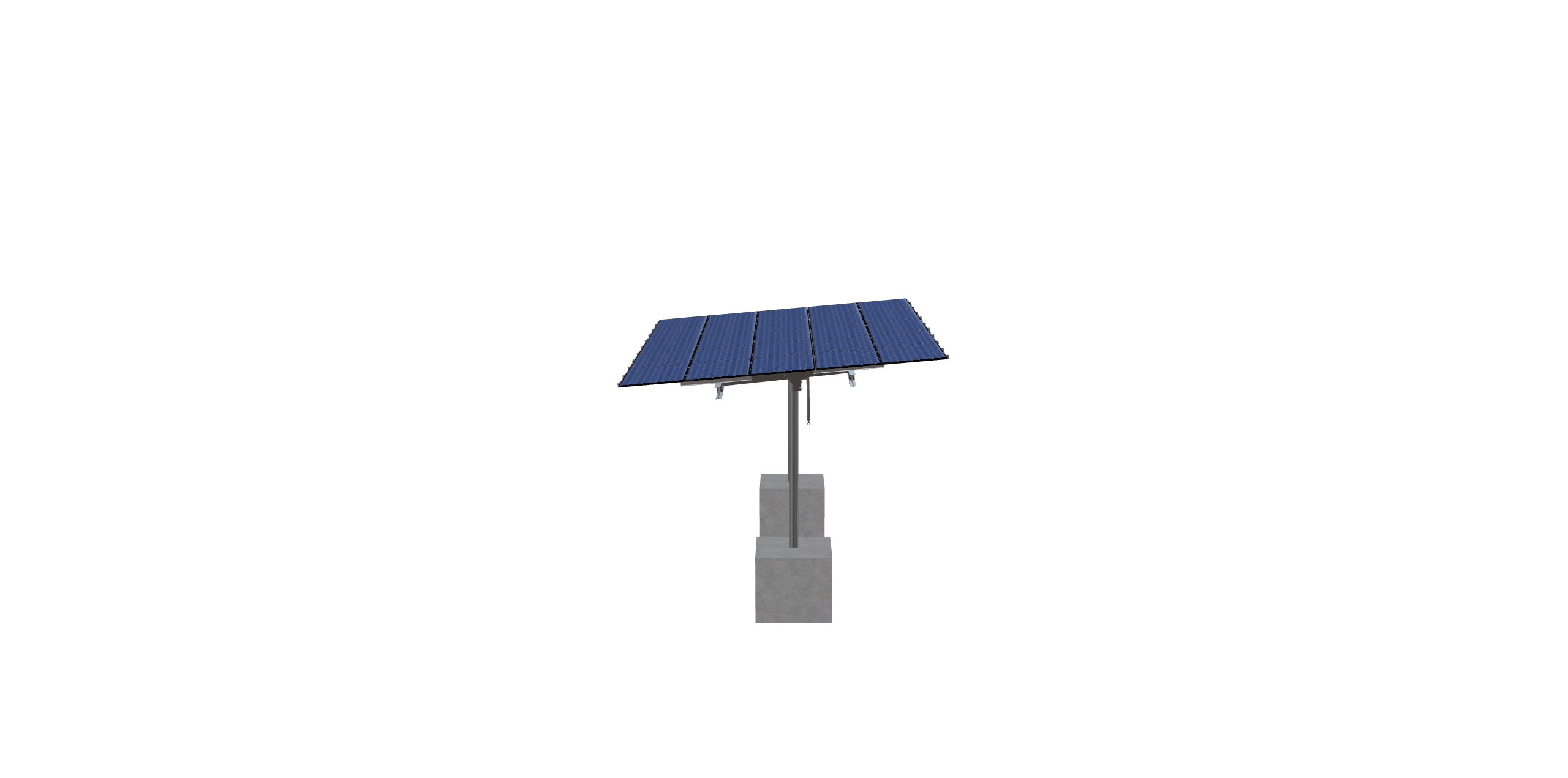

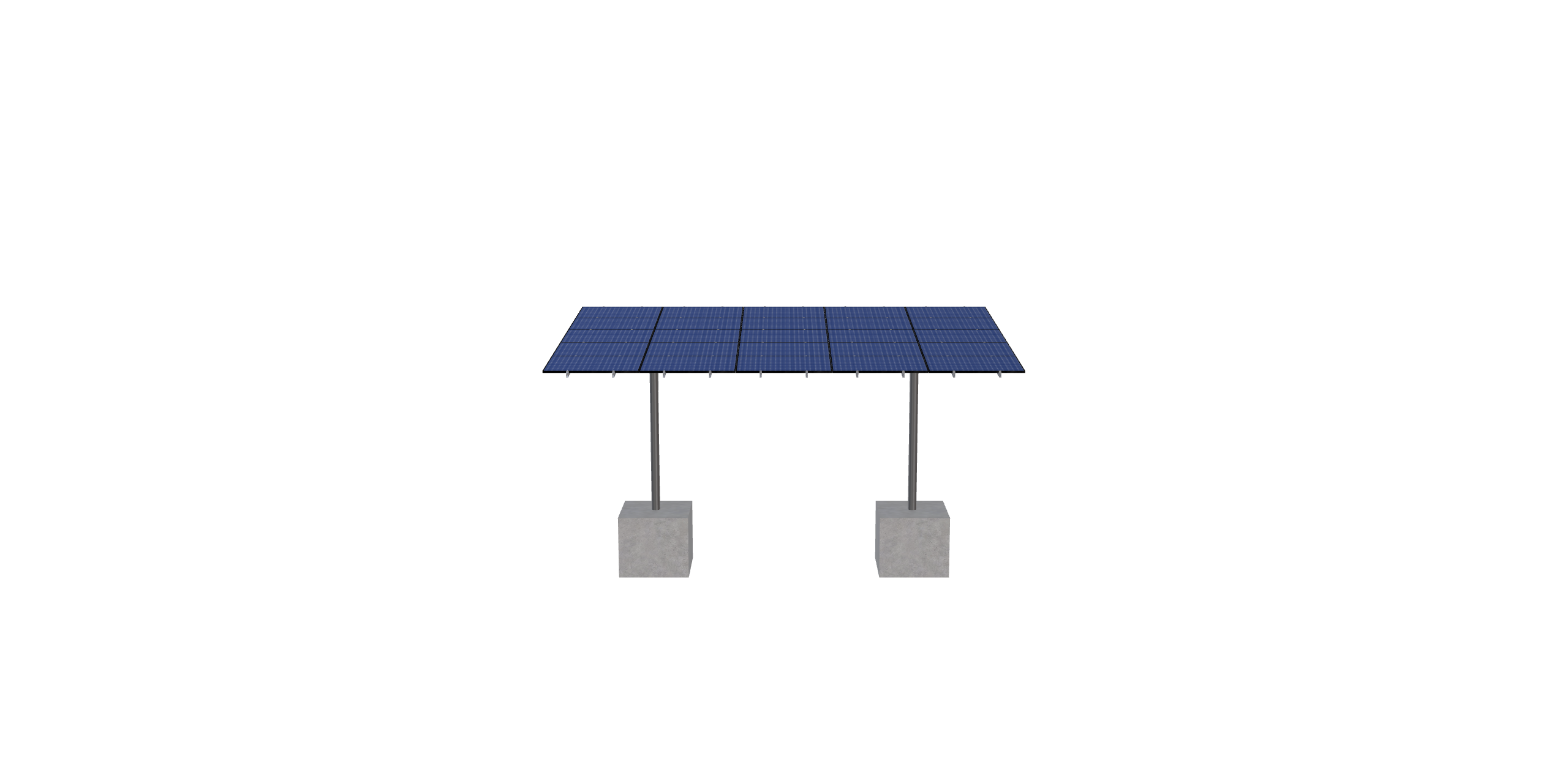

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

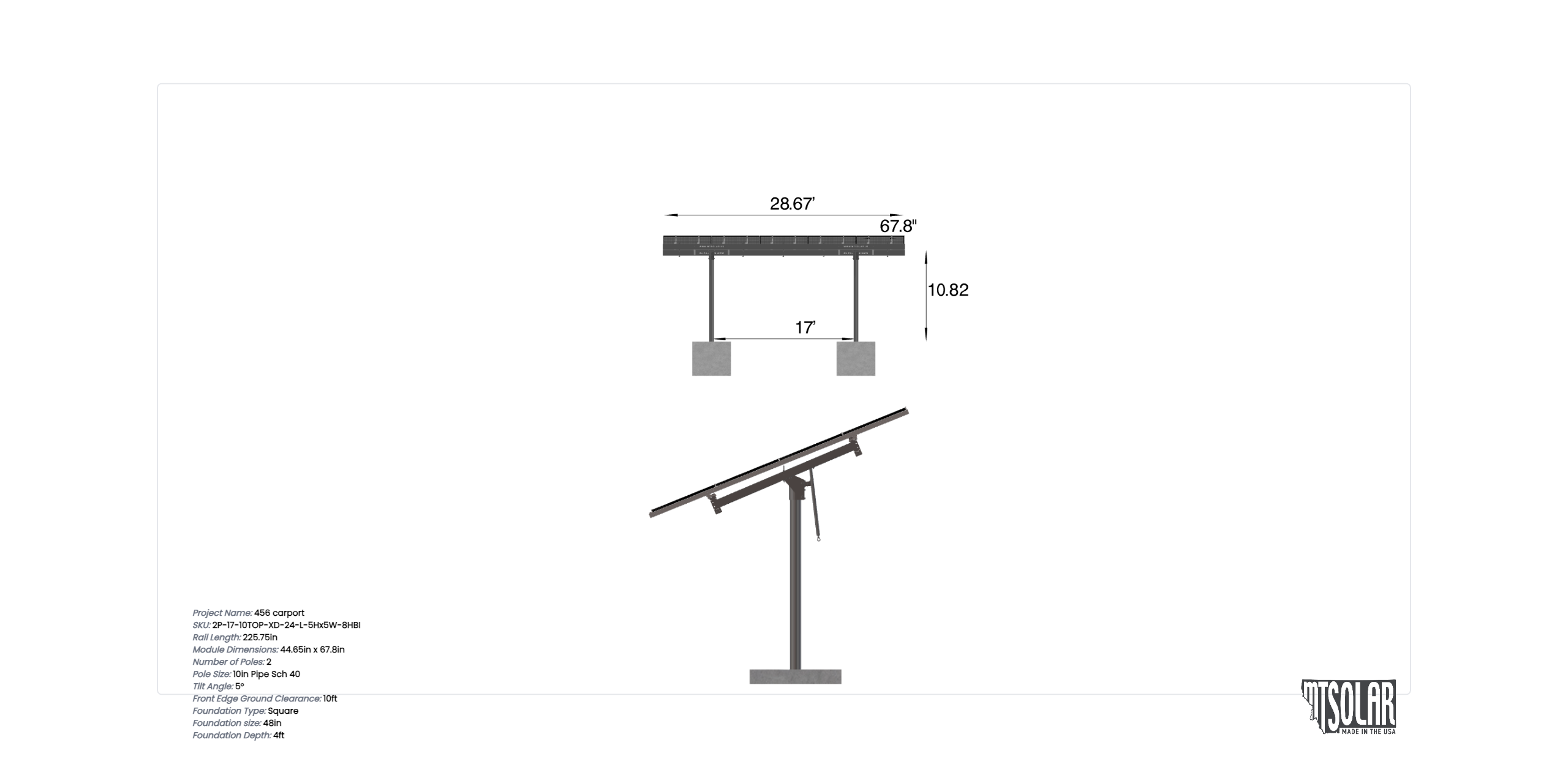

See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-17-10TOP-XD-24-L-5Hx5W-8HBI Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.8 inches by 44.65 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2097.8999999999996 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-17-10TOP-XD-24-L-5HX5W-8HBI

DUTY SIZE

XD

POLE SIZE

10IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

17.00

POLE HEIGHT

10.82

WING SPAN

24.00

MAX FOUNDATION DEPTH

4.00

TILT ANGLE

5.00

CANTILEVER

342.00

GROUND CLEARANCE

10.00

NO POLES

2.00

MODULE AREA

539.29

ARRAY WIDTH

28.67

ARRAY HEIGHT

18.81

RAIL LENGTH

225.75

MODULE LENGTH

67.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

28.50

GROUND TO TOP

11.63

PROJECTED PANEL HEIGHT

1.62

PROJECT ID

456, CARPORT

SITE ADDRESS

456, N, 700, E, NEPHI, UT, 84648, USA

MODULE WIDTH

44.65

NUMBER ROWS

5.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

XD

POLE OVERRIDE

10, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

40.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

TOTAL PRICE

10621.41

TOTAL WEIGHT

2097.90

TOTAL PALLETS

2.00
