This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 45 inches and an array layout of 7 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

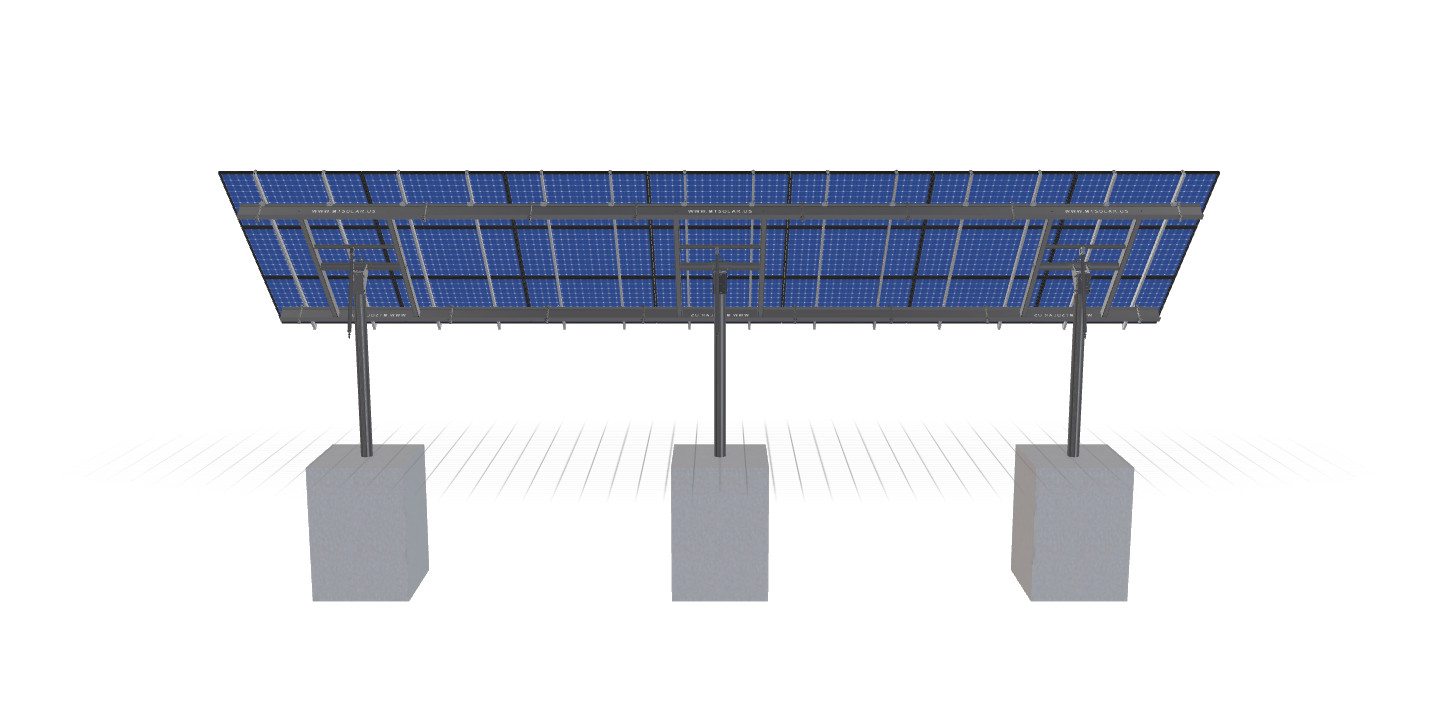

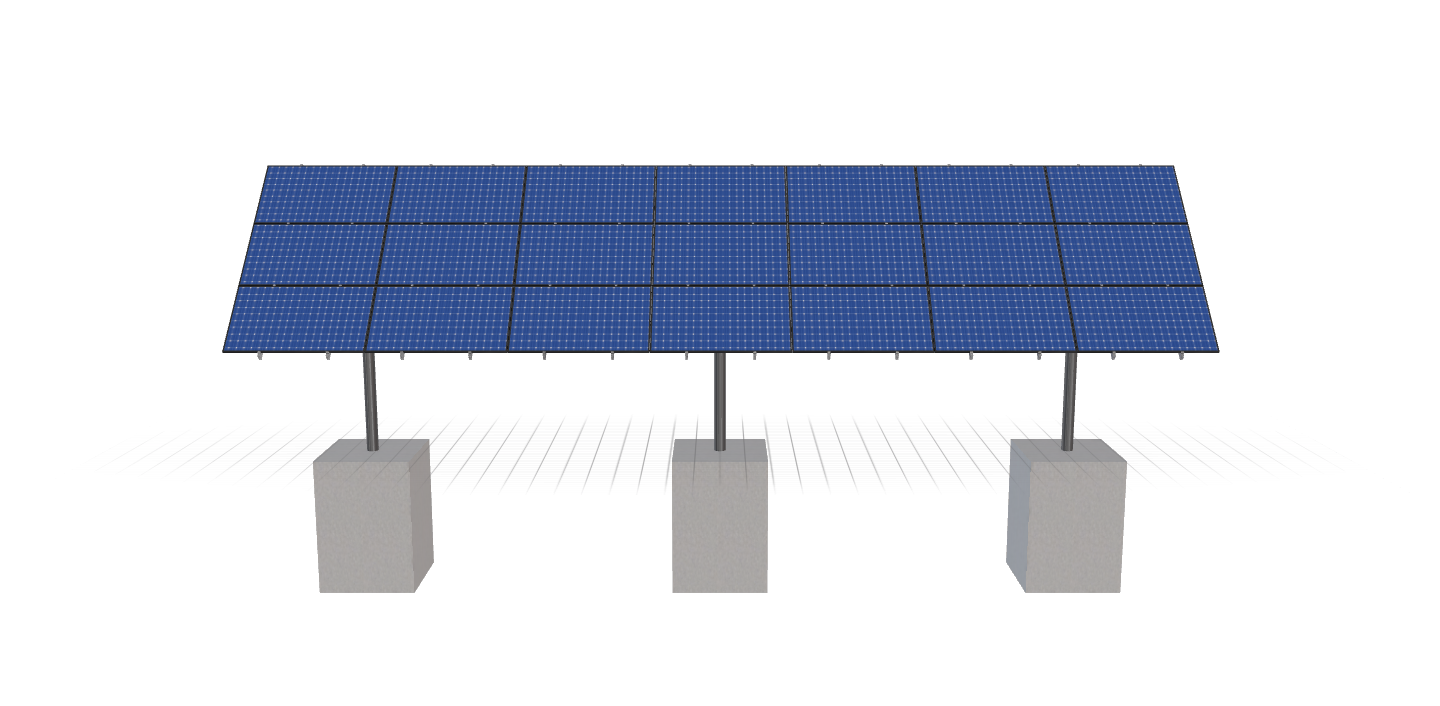

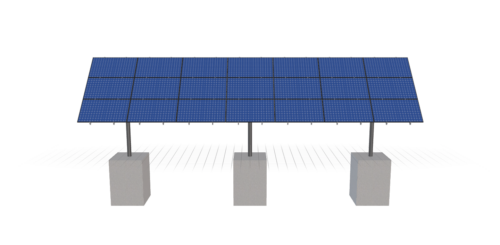

See 3D Model Here
All Off Grid 3×7
$12,845.74
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76 inches by 45 inches and an array layout of 7 wide by 3 high.
This mount fits on 3 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2240.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-17-6TOP-HD-12-L-3HX7W-6388 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 9.09 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 46.00 |
| CANTILEVER | 522.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 3.00 |
| MODULE AREA | 510.93 |
| ARRAY WIDTH | 44.92 |
| ARRAY HEIGHT | 11.38 |
| RAIL LENGTH | 136.50 |
| MODULE LENGTH | 76.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 43.50 |
| GROUND TO TOP | 13.14 |
| PROJECTED PANEL HEIGHT | 8.09 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | ALL, OFF, GRID, 3X7 |
| SITE ADDRESS | 301, MAIN, ST, E, DILLINGHAM, AK, 99576, USA |
| MODULE WIDTH | 45.00 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 7.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 12234.04 |
| TOTAL WEIGHT | 2240.21 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/87f609b1-4140-493a-b22a-7adb7187e616.pdf |
|
| ID | 1464.00 |
| 3D Solar link |
