Arch LTC JA Solar Pole

$4,771.35

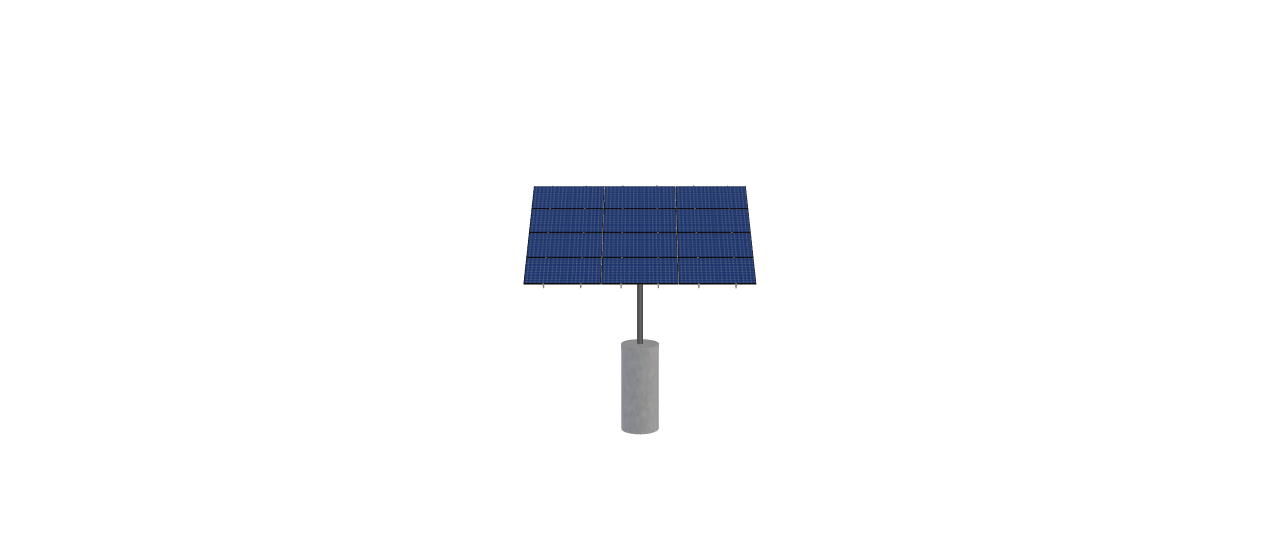

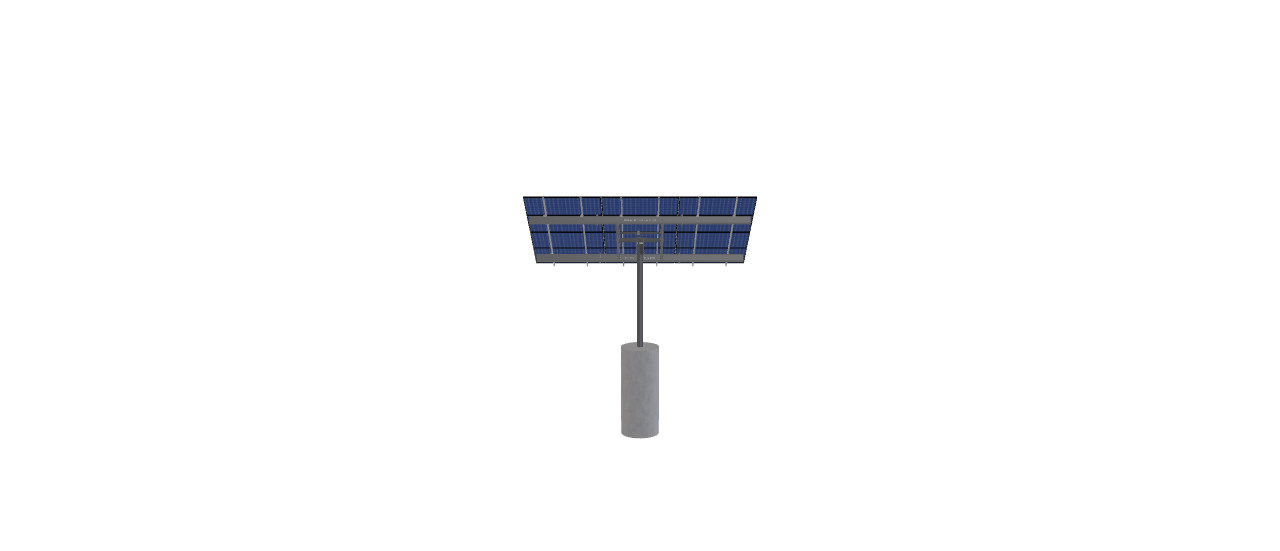

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80.12 inches by 39.57 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

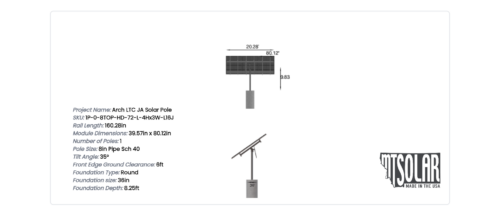

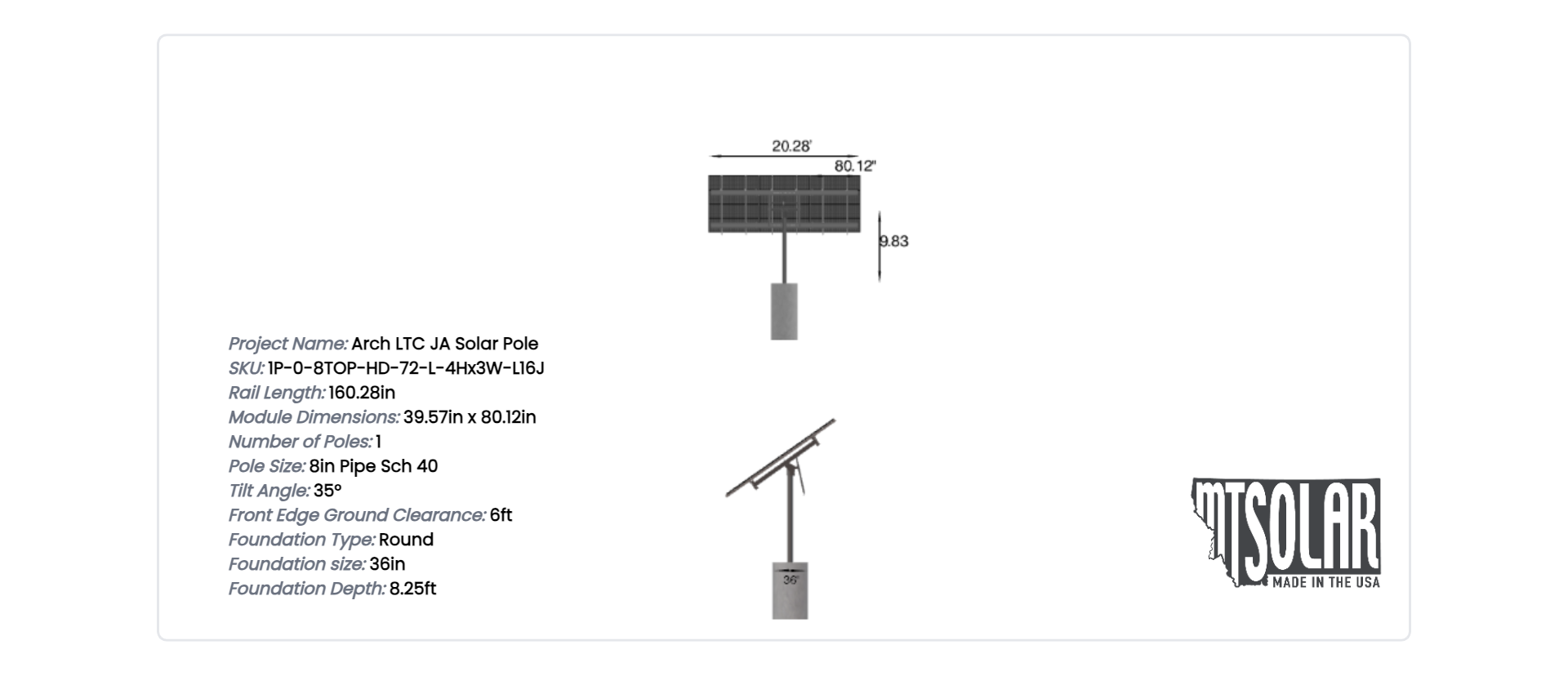

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-HD-72-L-4Hx3W-L16J Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 80.12 inches by 39.57 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 884.33 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-HD-72-L-4HX3W-L16J

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

9.83

WING SPAN

72.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

35.00

CANTILEVER

234.00

GROUND CLEARANCE

6.00

NO POLES

1.00

MODULE AREA

270.87

ARRAY WIDTH

20.28

ARRAY HEIGHT

13.36

RAIL LENGTH

160.28

MODULE LENGTH

80.12

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

19.50

GROUND TO TOP

13.61

PROJECTED PANEL HEIGHT

7.57

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

ARCH, LTC, JA, SOLAR, POLE

SITE ADDRESS

1290, NORTH, AVE, CLEVELAND, WI, 53015, USA

MODULE WIDTH

39.57

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

4771.35

TOTAL WEIGHT

884.33

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/02737d90-6eb1-4c67-8c49-b4def61e048b.pdf

ID

5214.00
