This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

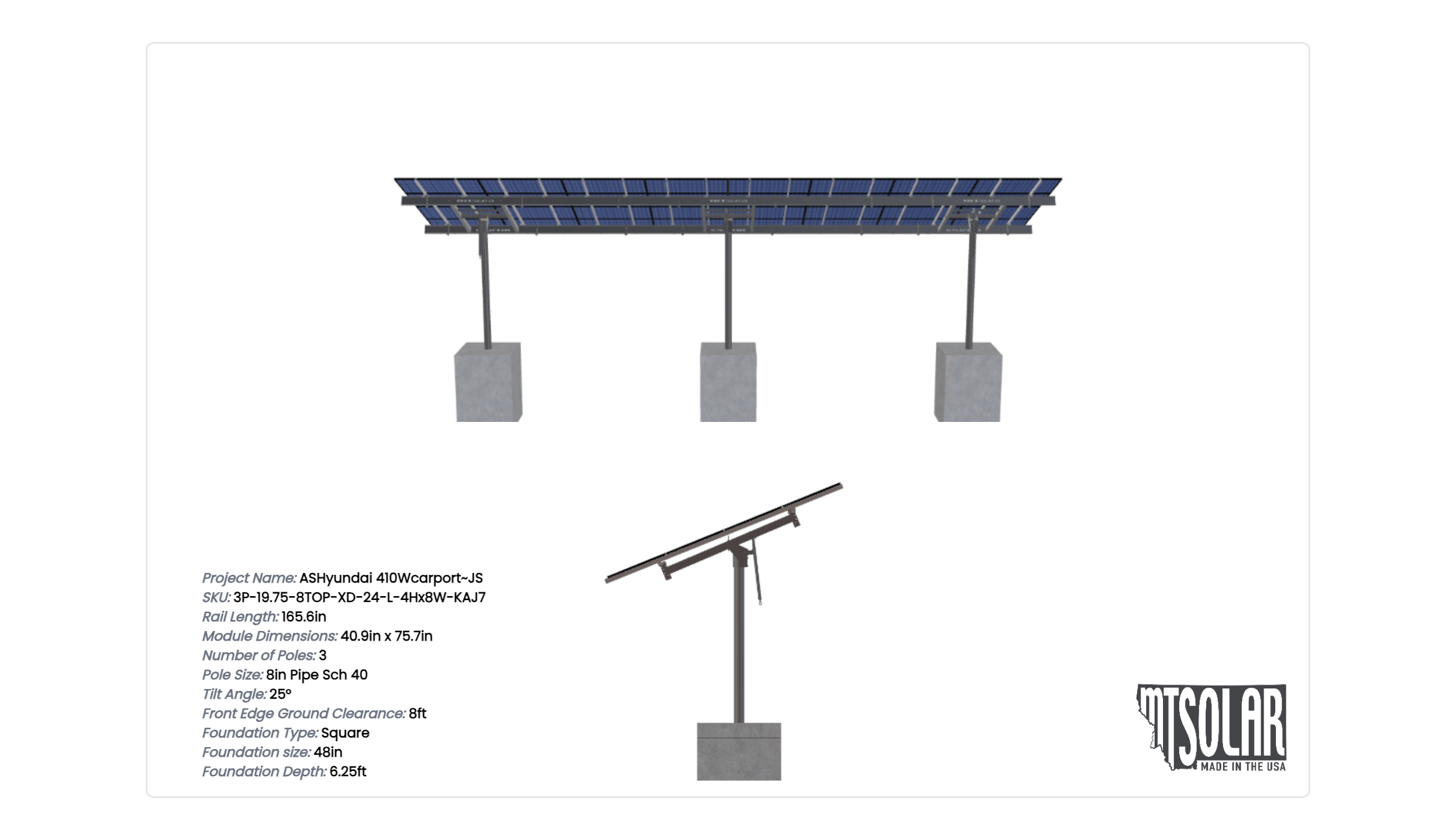

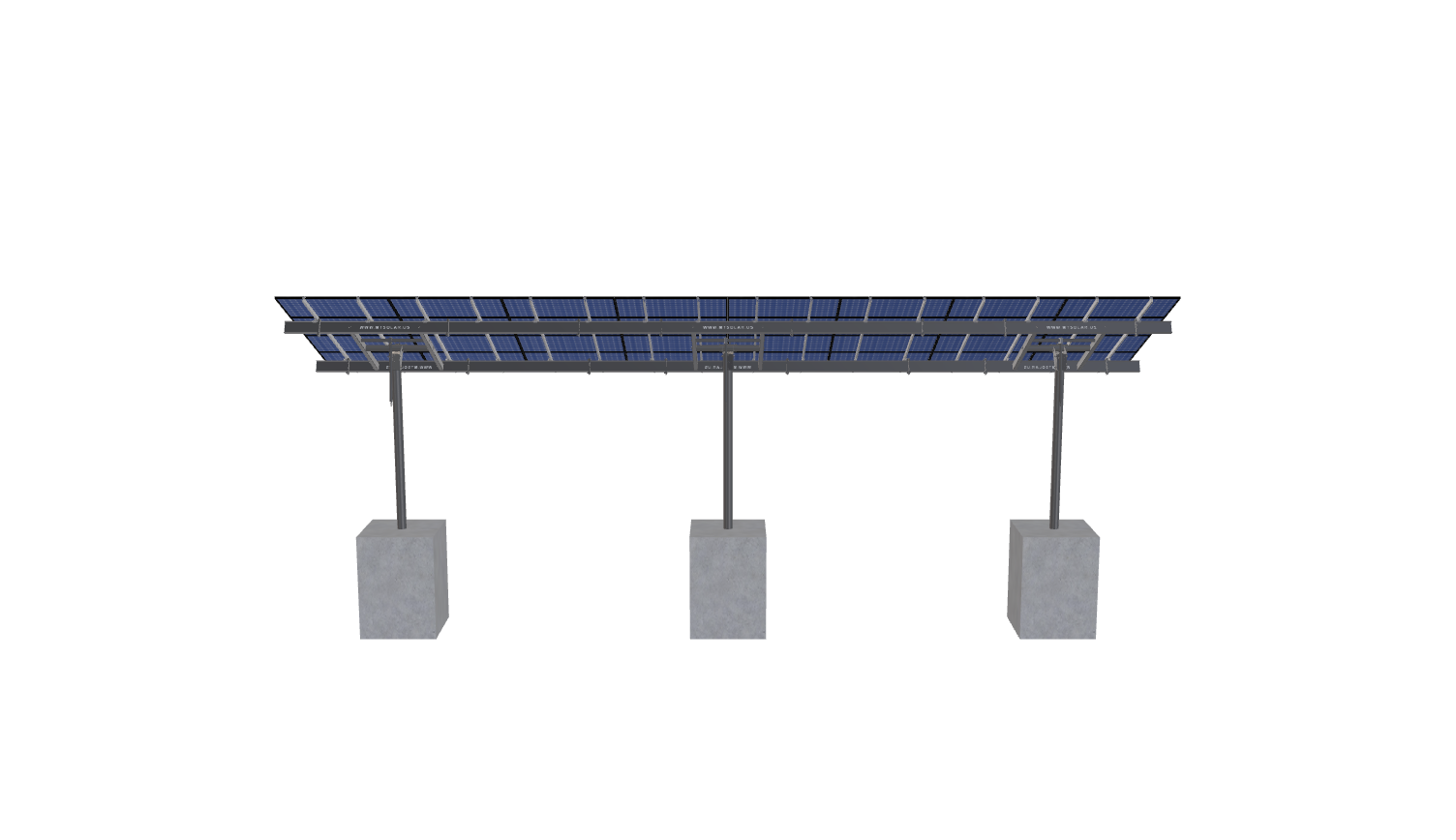

See 3D Model Here
ASHyundai 410Wcarport~JS
$16,089.70
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 75.7 inches by 40.9 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2853.6099999999997 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-19.75-8TOP-XD-24-L-4HX8W-KAJ7 |
| DUTY SIZE | XD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 10.92 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 612.00 |
| GROUND CLEARANCE | 8.00 |
| NO POLES | 3.00 |
| MODULE AREA | 705.64 |
| ARRAY WIDTH | 51.13 |
| ARRAY HEIGHT | 13.80 |
| RAIL LENGTH | 165.60 |
| MODULE LENGTH | 75.70 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 51.00 |
| GROUND TO TOP | 13.80 |
| PROJECTED PANEL HEIGHT | 5.76 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | ASHYUNDAI, 410WCARPORT~JS |
| SITE ADDRESS | ANCHORAGE, AK, 99518, USA |
| MODULE WIDTH | 40.90 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 15323.52 |
| TOTAL WEIGHT | 2853.61 |
| TOTAL PALLETS | 3.00 |
