BobSheppard%7CRevA

$5,379.24

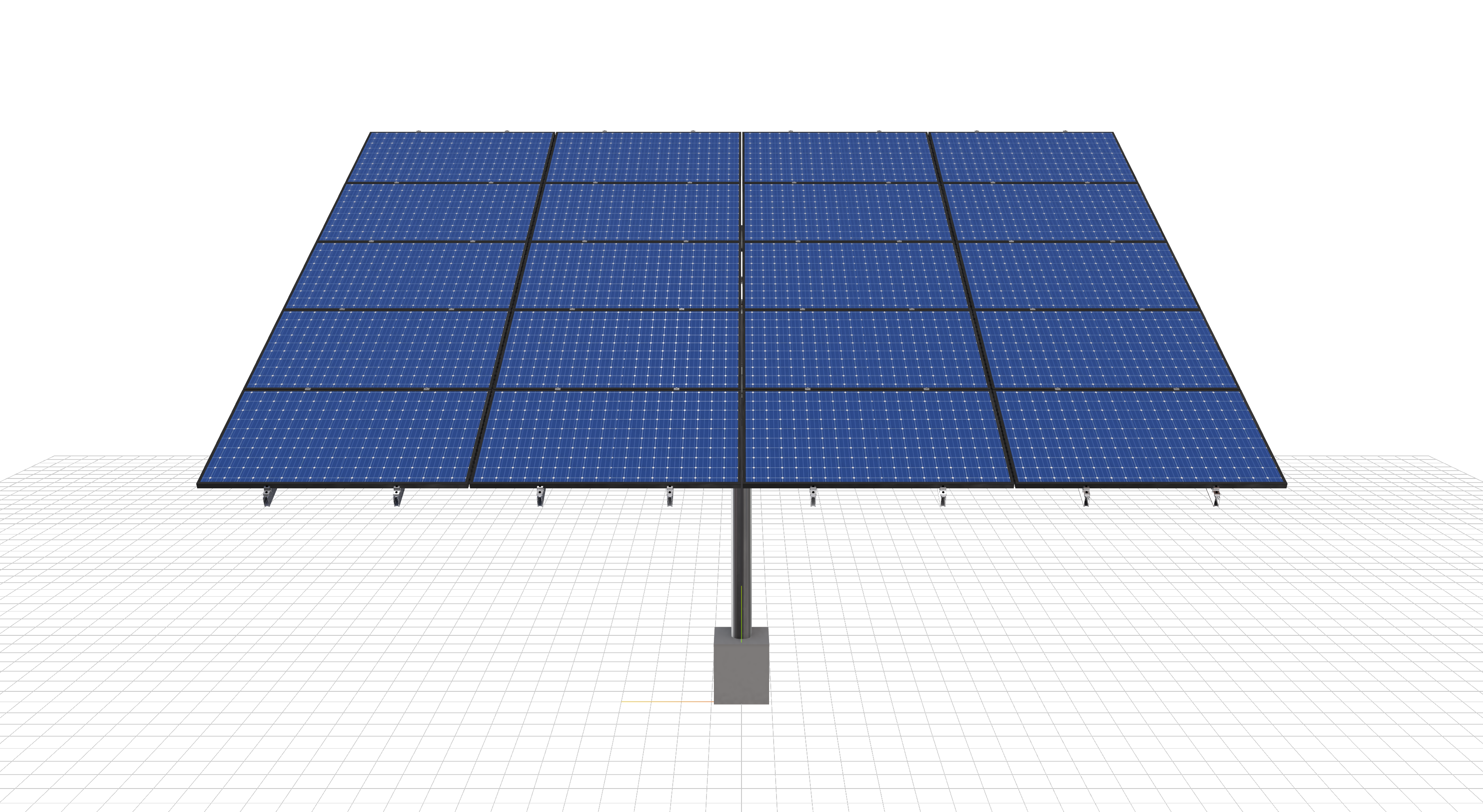

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 4 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Additional information

Weight 744 lbs
Dimensions 90 × 24 × 24 in
PDF

https://solver.skyciv.com/temp/mergedpdf_av3ytwbpdow88w0o.php

SKU CODE

1P-0-6TOP-SD-84-L-5Hx4W

DUTY SIZE

SD

POLE SIZE

6in, Pipe, Sch, 40

PRODUCT TYPE

Beam

NUMBER OF_POLES

1

POLE SPACING

15

POLE HEIGHT

10.7

WING SPAN

84

FOUNDATION DEPTHS

[object, Object]

TILT ANGLE

23

CANTILEVER

258

GROUND CLEARANCE

7

NO POLES

1

MODULE AREA

436.04166666666663

ARRAY WIDTH

23

ARRAY HEIGHT

18.958333333333332

RAIL LENGTH

227.5

MODULE LENGTH

68

PASSED OVERHANG_CHECK

true

MODULE WIDTH_GAP

0.5

MODULE LENGTH_GAP

1

TOTAL FRAME_LENGTH

21.5

GROUND TO_TOP

14.366909818391514

PROJECTED PANEL_HEIGHT

7.326208659173883

WIND SPEED_OVERRIDE

null

SNOW LOAD_OVERRIDE

null

DIRECT SNOW_LOAD

false

PROJECT ID

BobSheppard, RevA

SITE ADDRESS

179, Fielder, Ln, Grants, Pass, OR, 97526, USA

MODULE WIDTH

45

NUMBER ROWS

5

NUMBER COLUMNS

4

MAIN PIPE_SECTION

2_12GA

RISK CATEGORY

I

EXPOSURE CATEGORY

B

SOIL TYPE

sand

FOUNDATION TYPE

Square

FOUNDATION SIZE

48

CHECK RAILS

false

TOTAL PRICE

5379.24

TOTAL WEIGHT

1078.26

TOTAL PALLETS

1

ID

106
