This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

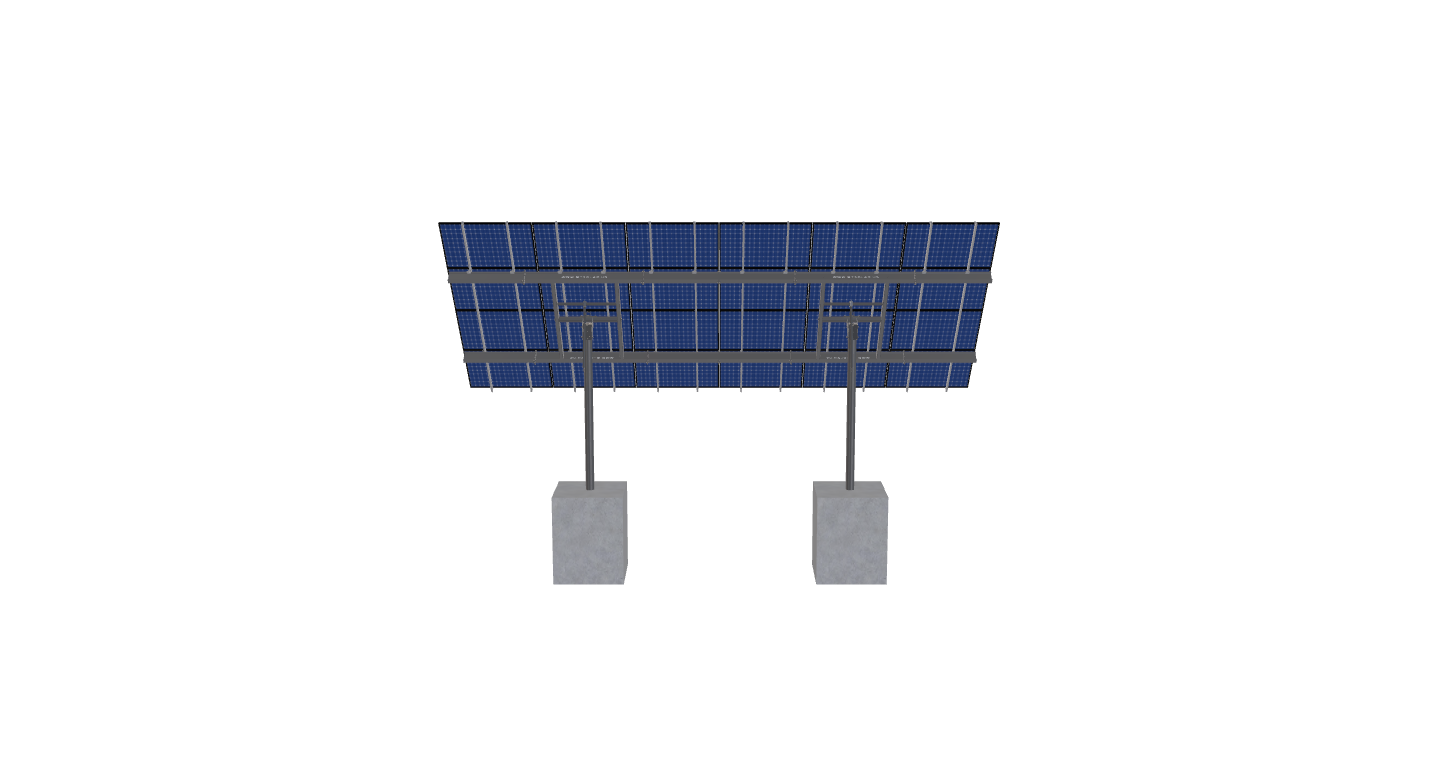

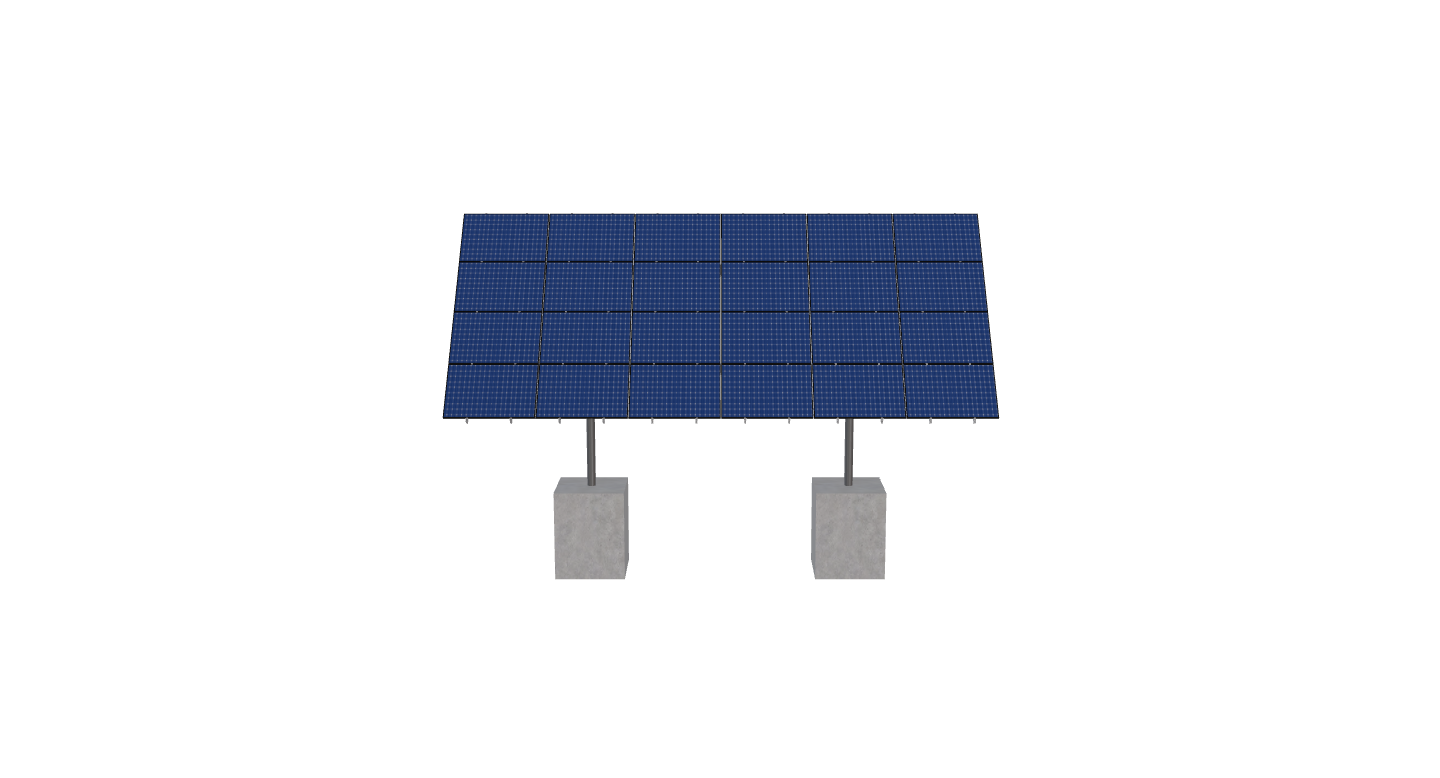

See 3D Model Here
Bonner Project – V1Jb
$8,106.53
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 47.4 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information

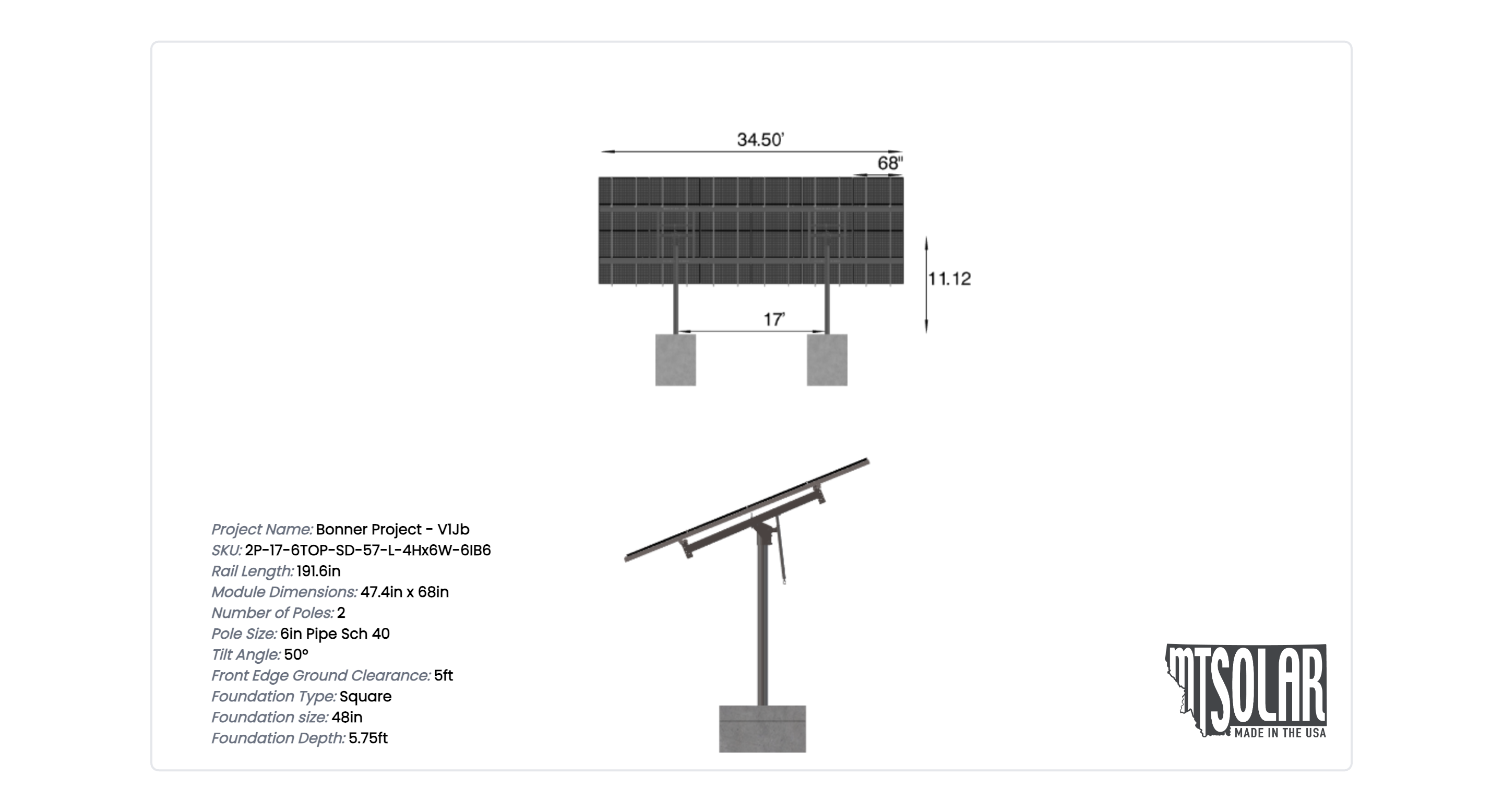

| Weight | 1423.32 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-SD-57-L-4HX6W-6IB6 |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 11.12 |
| WING SPAN | 57.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 408.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 2.00 |
| MODULE AREA | 550.85 |
| ARRAY WIDTH | 34.50 |
| ARRAY HEIGHT | 15.97 |
| RAIL LENGTH | 191.60 |
| MODULE LENGTH | 68.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 34.00 |
| GROUND TO TOP | 17.23 |
| PROJECTED PANEL HEIGHT | 12.23 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | PEDRAM |
| DESIGNER EMAIL | |
| DESIGNER PHONE | â€(406), 310-2529‬ |
| PROJECT ID | BONNER, PROJECT, -, V1JB |
| SITE ADDRESS | BONNER-WEST, RIVERSIDE, MT, USA |
| MODULE WIDTH | 47.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8106.53 |
| TOTAL WEIGHT | 1423.32 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/2210e922-9c2c-4b86-9ed6-fd462db07afa.pdf |
|
| ID | 8568.00 |
| 3D Solar link |
