Bowles

$4,647.41

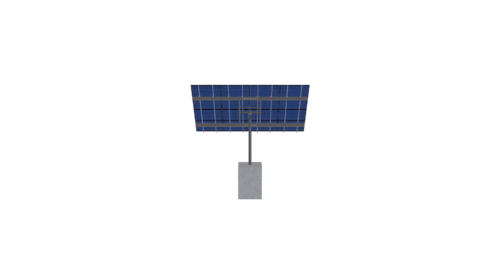

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-84-L-4Hx4W-JG90 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 65 inches by 40 inches and an array layout of 4 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 821.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-84-L-4HX4W-JG90

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

10.17

WING SPAN

84.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

50.00

CANTILEVER

258.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

297.00

ARRAY WIDTH

22.00

ARRAY HEIGHT

13.50

RAIL LENGTH

162.00

MODULE LENGTH

65.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

21.50

GROUND TO TOP

15.28

PROJECTED PANEL HEIGHT

10.21

PROJECT ID

BOWLES

SITE ADDRESS

148, ELENA, DR, FRIDAY, HARBOR, WA, 98250, USA

MODULE WIDTH

40.00

NUMBER ROWS

4.00

NUMBER COLUMNS

4.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

91.00

SNOW LOAD OVERRIDE

32.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4647.41

TOTAL WEIGHT

821.38

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/12f471f1-283a-453e-9c90-106f2dcc426f.pdf

ID

7031.00
