This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

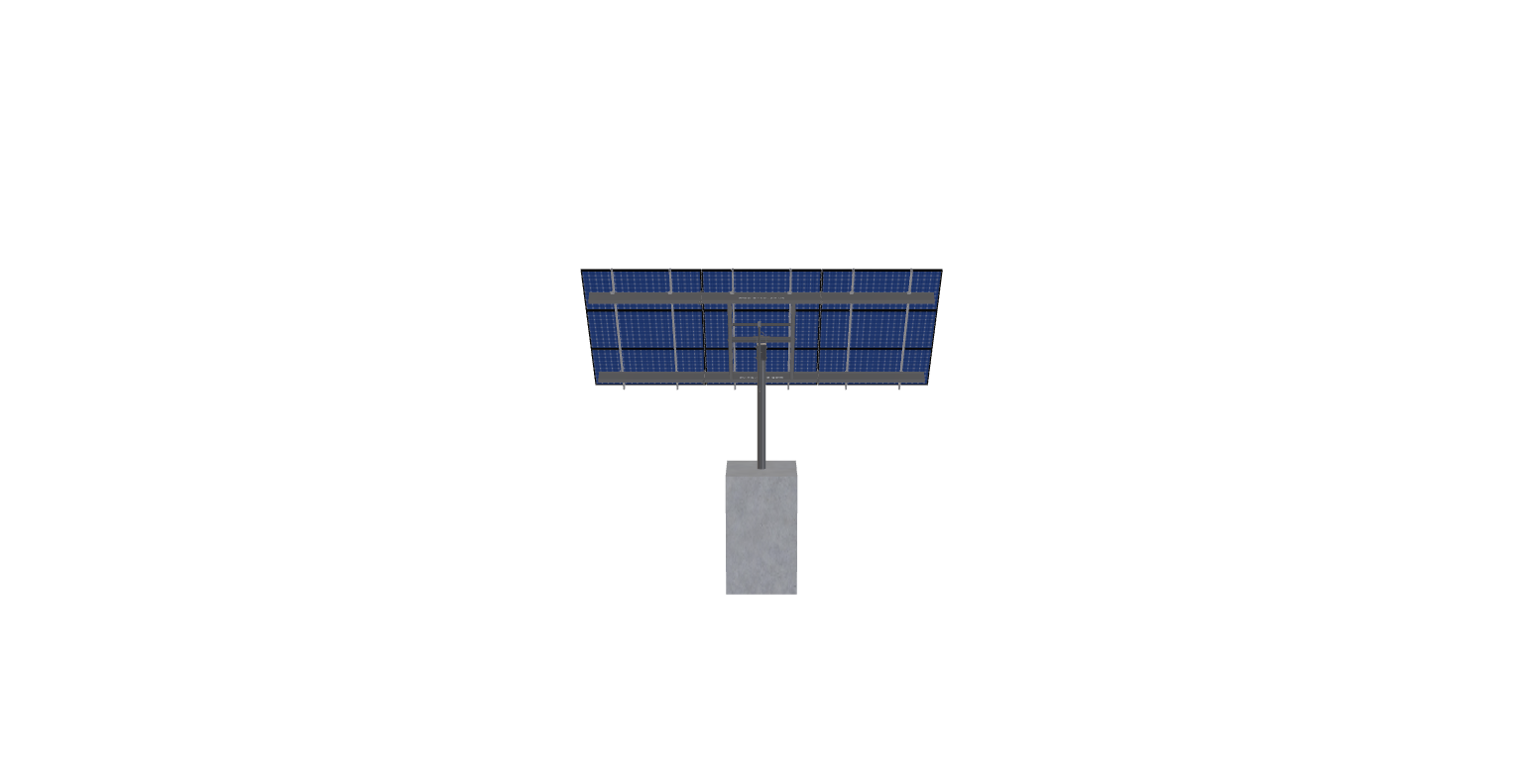

See 3D Model Here
Bruce Tonilas – 9 panel – 4ft clearance
$5,794.35
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 88.82 inches by 44.61 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1047.21 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-10TOP-XD-84-L-3HX3W-STRUTS-B378 |
| DUTY SIZE | XD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 8.32 |
| WING SPAN | 84.00 |
| MAX FOUNDATION DEPTH | 7.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 258.00 |
| GROUND CLEARANCE | 4.00 |
| NO POLES | 1.00 |
| MODULE AREA | 253.24 |
| ARRAY WIDTH | 22.45 |
| ARRAY HEIGHT | 11.28 |
| RAIL LENGTH | 135.33 |
| MODULE LENGTH | 88.82 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 21.50 |
| GROUND TO TOP | 12.64 |
| PROJECTED PANEL HEIGHT | 8.64 |
| DESIGNER NAME | HASTON |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 9706586635.00 |
| PROJECT ID | BRUCE, TONILAS, -, 9, PANEL, -, 4FT, CLEARANCE |
| SITE ADDRESS | 32, SUNDOWN, LN, FRASER, CO, 80442, USA |
| MODULE INFO | |
| MODULE WIDTH | 44.61 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | XD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 210.00 |
| SNOW LOAD OVERRIDE | 95.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | TRUE |
| TOTAL PRICE | 5518.43 |
| TOTAL WEIGHT | 1047.21 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/1f80e13b-4c98-497b-86e6-f1b99213ab9a.pdf |
|
| ID | 10844.00 |
| 3D Solar link |
