BucknerResidence-3×6-v4

$9,050.52

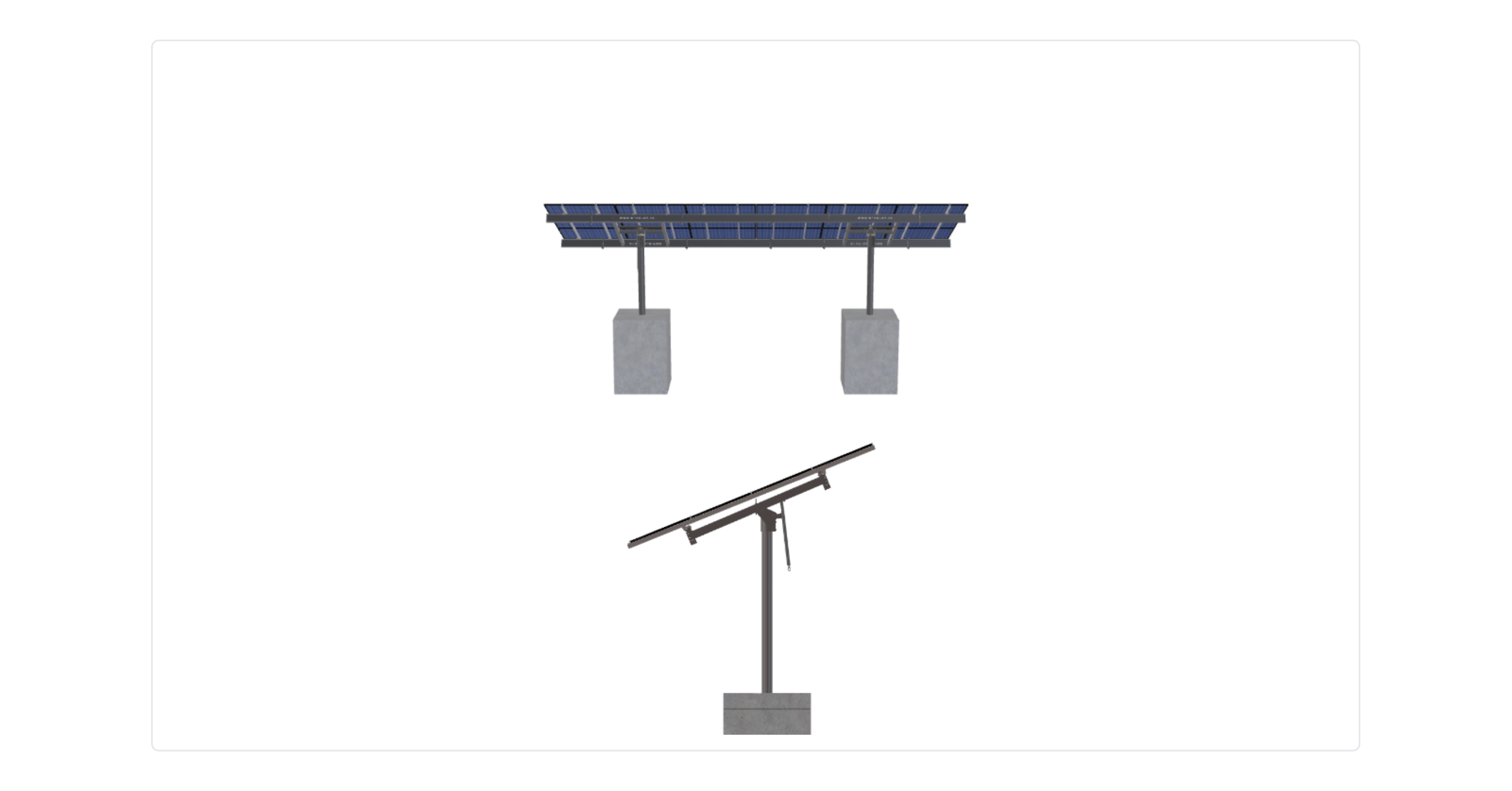

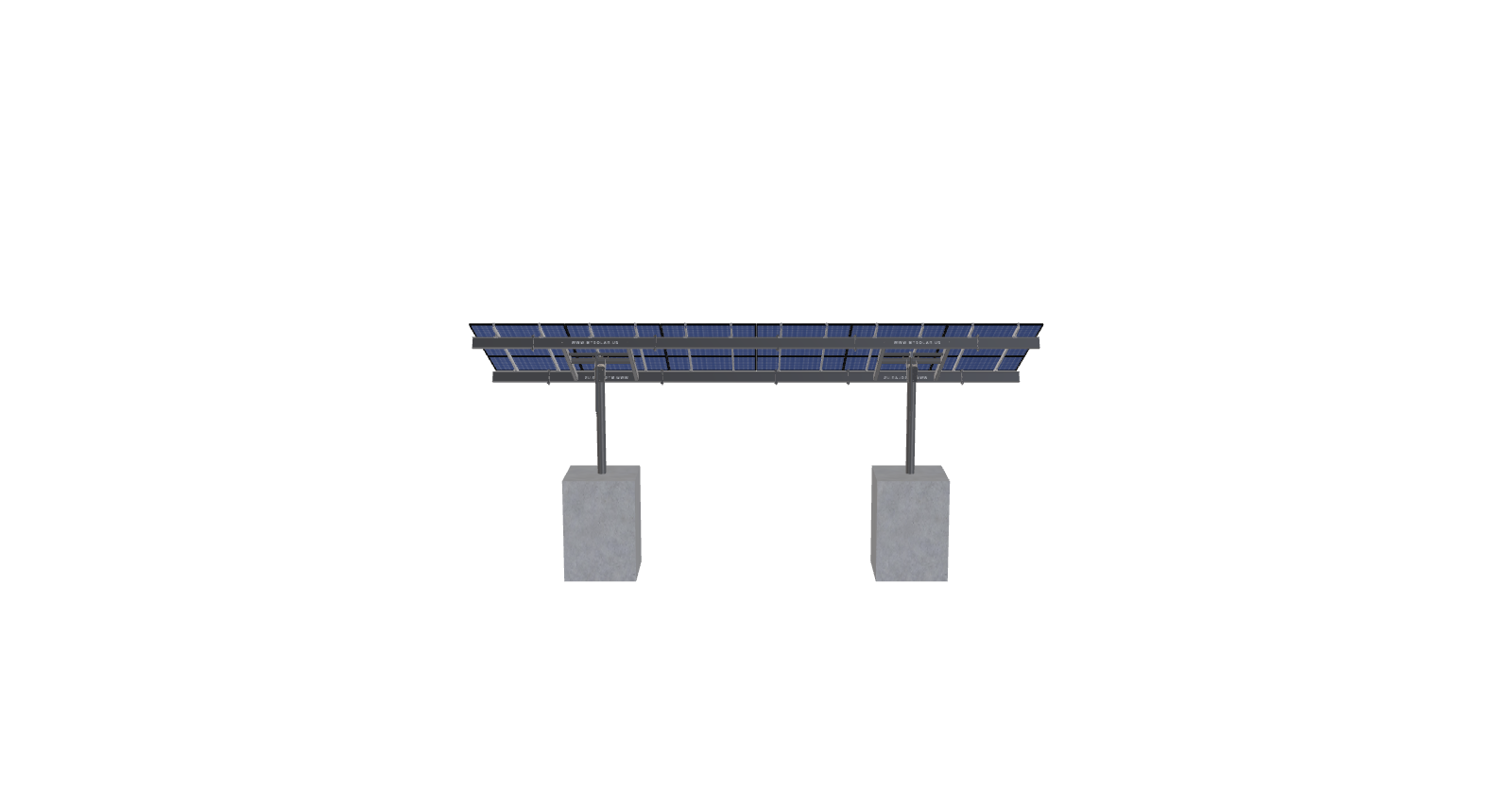

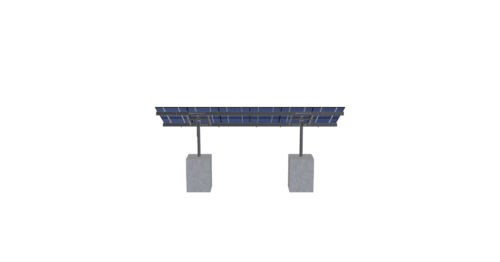

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 40.8 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-19.75-8TOP-HD-45-L-3Hx6W-5IKE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.4 inches by 40.8 inches and an array layout of 6 wide by 3 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1668.72 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-HD-45-L-3HX6W-5IKE

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

7.18

WING SPAN

45.00

MAX FOUNDATION DEPTH

6.50

TILT ANGLE

25.00

CANTILEVER

417.00

GROUND CLEARANCE

5.00

NO POLES

2.00

MODULE AREA

363.44

ARRAY WIDTH

35.20

ARRAY HEIGHT

10.32

RAIL LENGTH

123.90

MODULE LENGTH

69.40

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

9.34

PROJECTED PANEL HEIGHT

4.31

WIND SPEED OVERRIDE

160.00

SNOW LOAD OVERRIDE

42.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

BUCKNERRESIDENCE-3X6-V4

SITE ADDRESS

1077, S, CHERRYVALE, RD, BOULDER, CO, 80303, USA

MODULE WIDTH

40.80

NUMBER ROWS

3.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

9050.52

TOTAL WEIGHT

1668.72

TOTAL PALLETS

2.00
