Dave Lisonbee_Rev2_52

$26,035.83

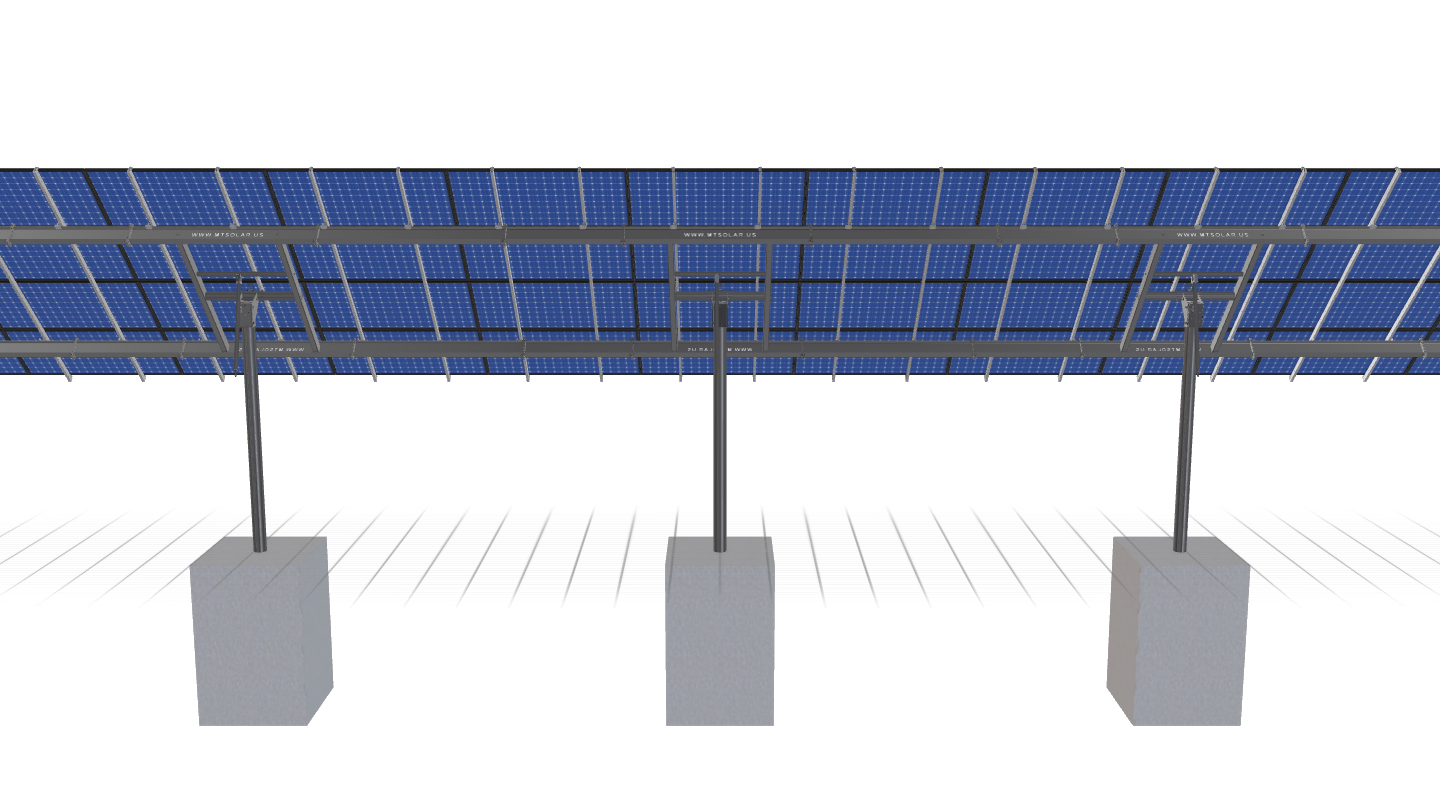

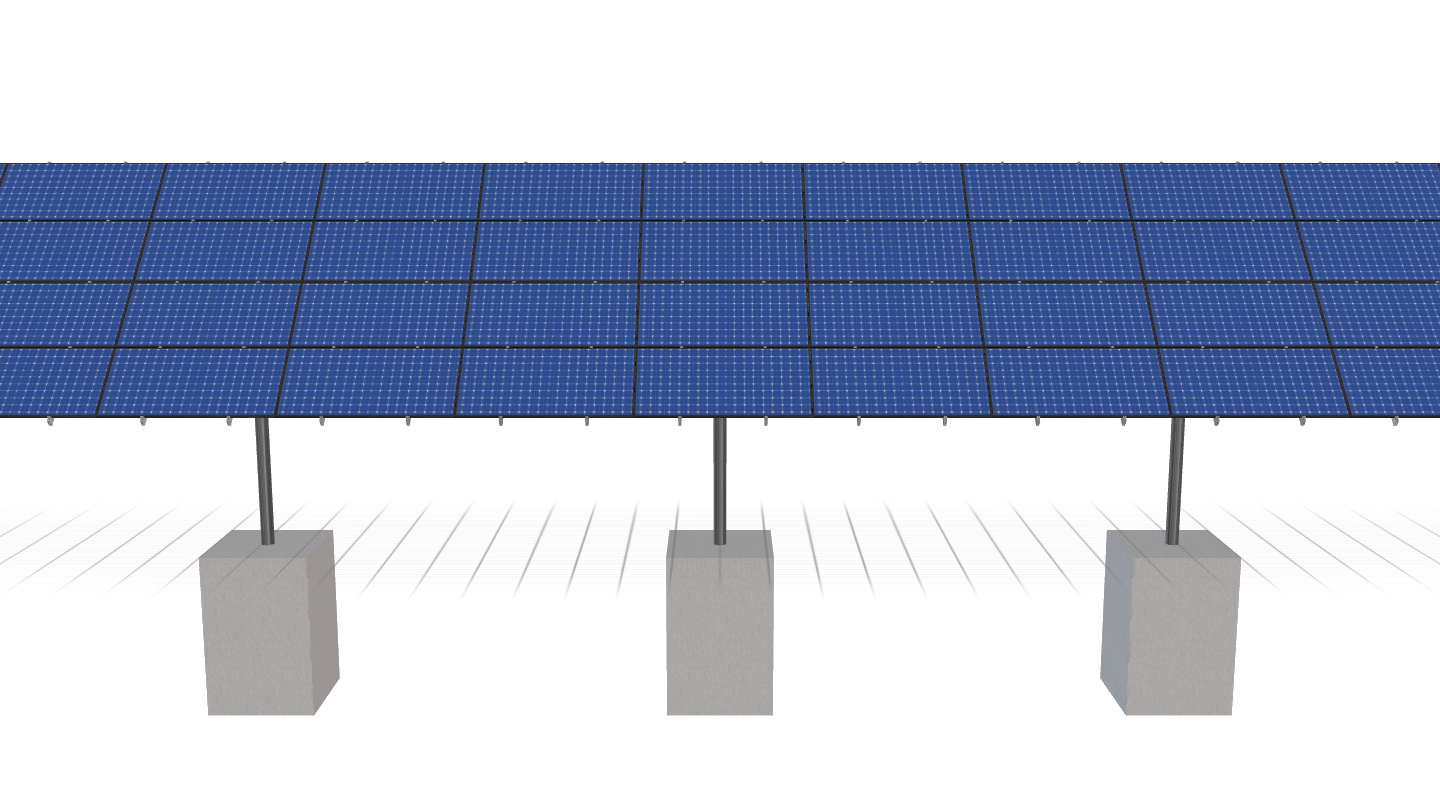

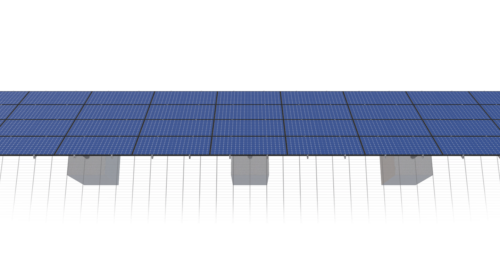

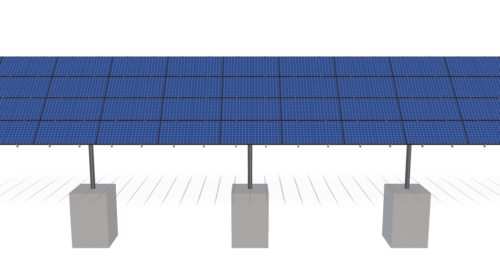

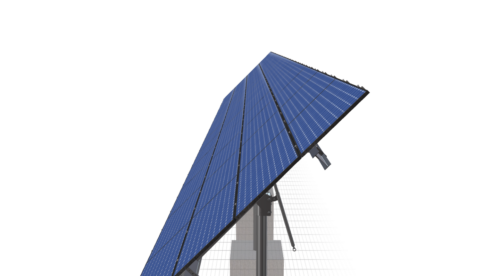

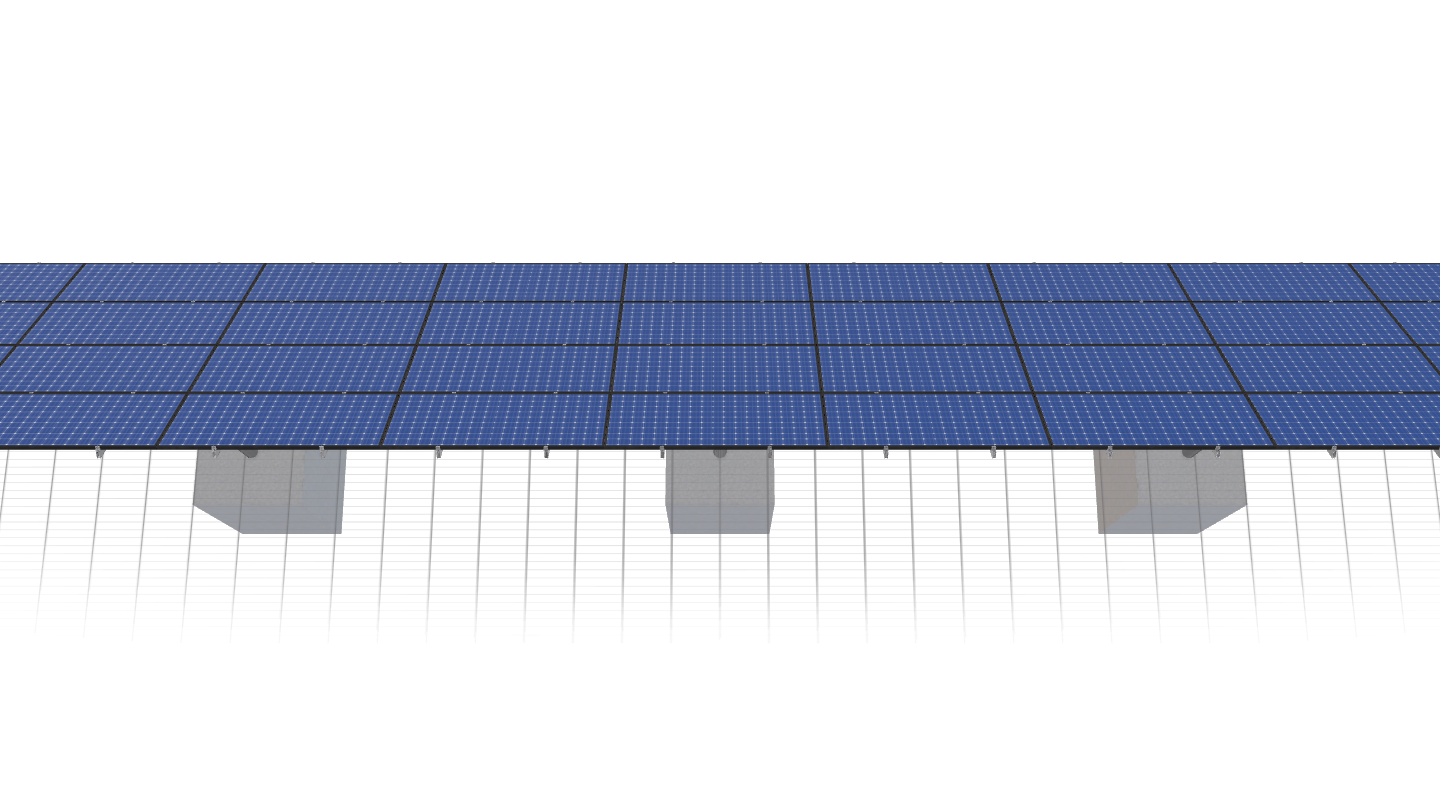

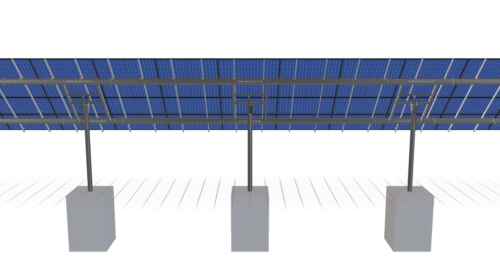

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 5P-19.75-8TOP-XD-24-L-4Hx13W-0H5L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 13 wide by 4 high.
This mount fits on 5 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 4898.01 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

5P-19.75-8TOP-XD-24-L-4HX13W-0H5L

DUTY SIZE

XD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

5.00

POLE SPACING

19.75

POLE HEIGHT

10.93

WING SPAN

24.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

45.00

CANTILEVER

1086.00

GROUND CLEARANCE

6.00

NO POLES

5.00

MODULE AREA

1281.52

ARRAY WIDTH

91.98

ARRAY HEIGHT

13.93

RAIL LENGTH

167.20

MODULE LENGTH

83.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

90.50

GROUND TO TOP

15.79

PROJECTED PANEL HEIGHT

9.73

WIND SPEED OVERRIDE

97.00

SNOW LOAD OVERRIDE

168.00

DIRECT SNOW LOAD

FALSE

PROJECT ID

DAVE, LISONBEE, REV2, 52

SITE ADDRESS

9477, E, FOREST, CREEK, RD, HEBER, CITY, UT, 84032, USA

MODULE WIDTH

41.30

NUMBER ROWS

4.00

NUMBER COLUMNS

13.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

TRUE

TOTAL PRICE

26035.83

TOTAL WEIGHT

4898.01

TOTAL PALLETS

5.00
