David Gillete

$3,306.69

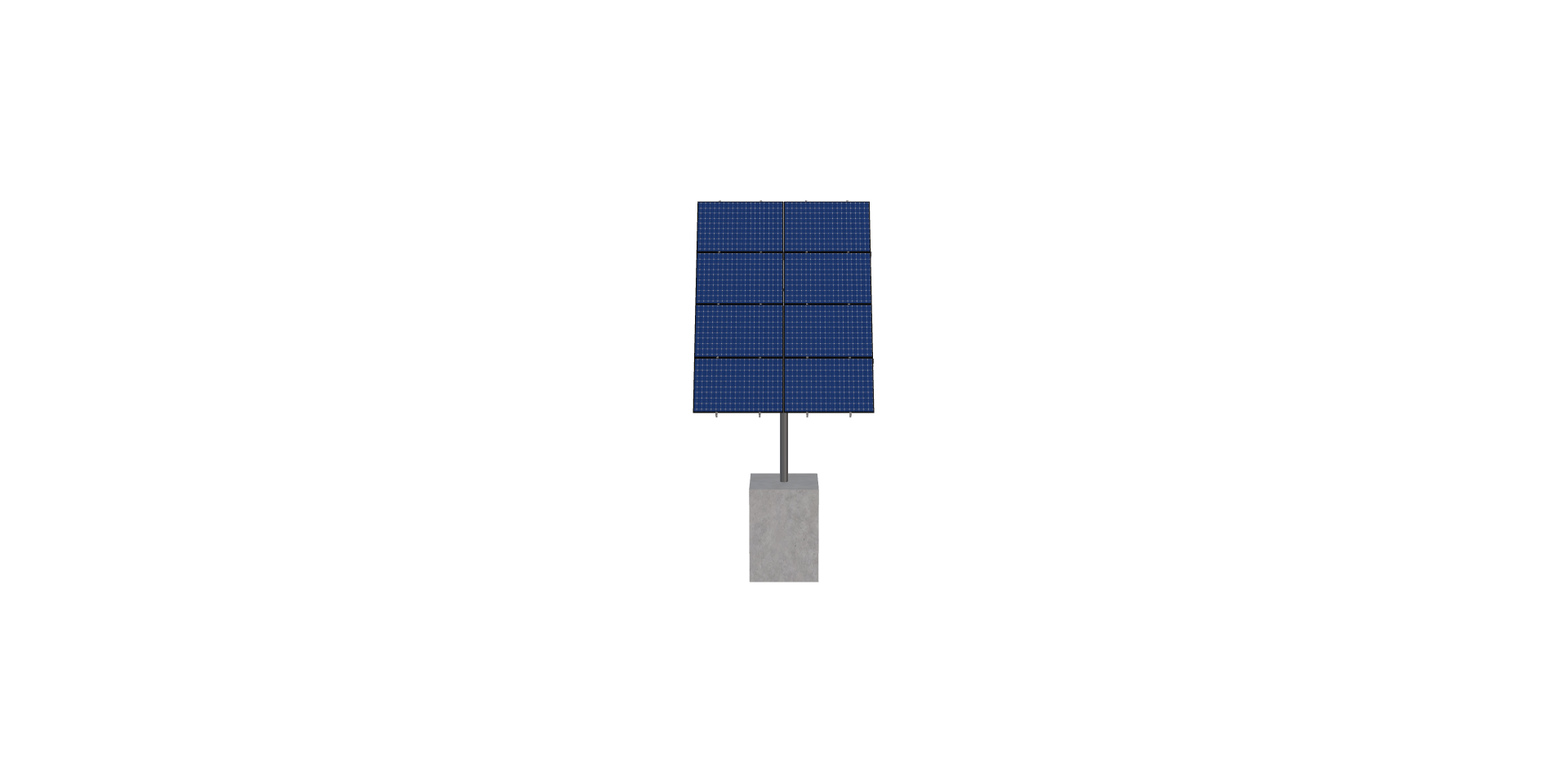

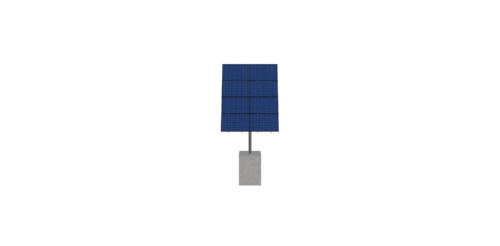

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-24-L-4Hx2W-1GGF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68 inches by 45 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 80 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 563.44 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-24-L-4HX2W-1GGF

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.57

WING SPAN

24.00

MAX FOUNDATION DEPTH

6.25

TILT ANGLE

60.00

CANTILEVER

138.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

174.42

ARRAY WIDTH

11.50

ARRAY HEIGHT

15.17

RAIL LENGTH

182.00

MODULE LENGTH

68.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

18.06

PROJECTED PANEL HEIGHT

12.99

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DAVID, GILLETE

SITE ADDRESS

84905, SISKWIT, SHORES, DR, CORNUCOPIA, WI, 54827, USA

MODULE WIDTH

45.00

NUMBER ROWS

4.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3306.69

TOTAL WEIGHT

563.44

TOTAL PALLETS

1.00
