Dickerson

$14,899.26

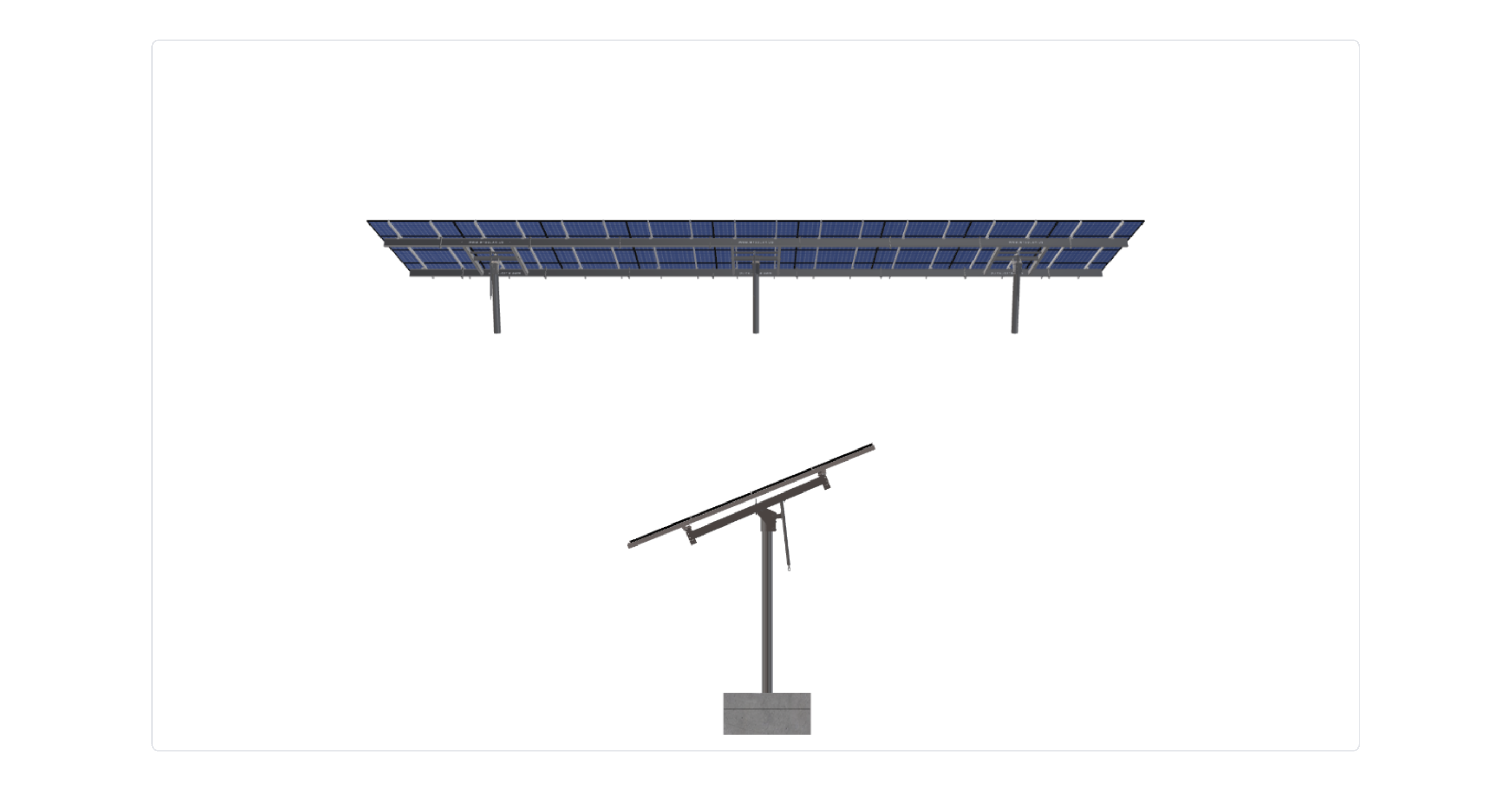

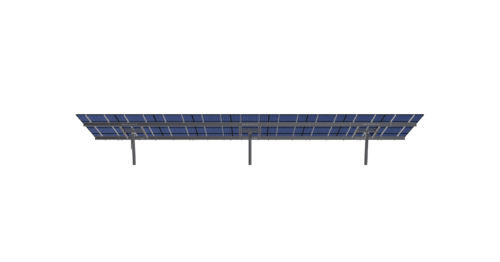

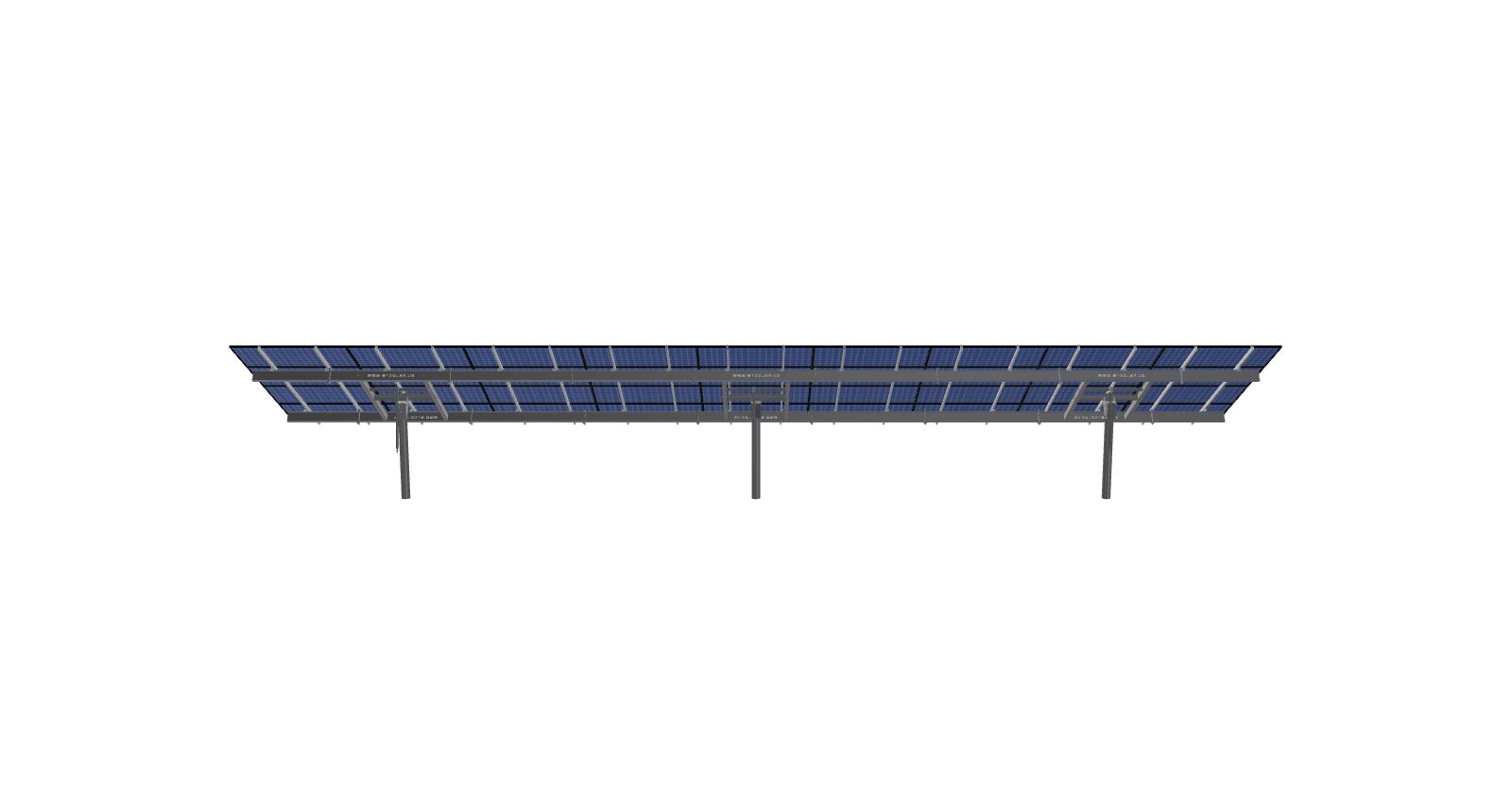

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-22.5-8TOP-HD-57-L-4Hx9W-4A48 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41 inches and an array layout of 9 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2780.63 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-22.5-8TOP-HD-57-L-4HX9W-4A48

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

22.50

POLE HEIGHT

6.46

WING SPAN

57.00

MAX FOUNDATION DEPTH

8.25

TILT ANGLE

30.00

CANTILEVER

744.00

GROUND CLEARANCE

3.00

NO POLES

3.00

MODULE AREA

881.88

ARRAY WIDTH

63.75

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

84.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

62.00

GROUND TO TOP

9.87

PROJECTED PANEL HEIGHT

6.83

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

DICKERSON

SITE ADDRESS

FRANKLIN, TX, 77856, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

9.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

TOTAL PRICE

14899.26

TOTAL WEIGHT

2780.63

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/0ae1a498-4512-408e-b3c2-592996953673.pdf

ID

7008.00
