This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

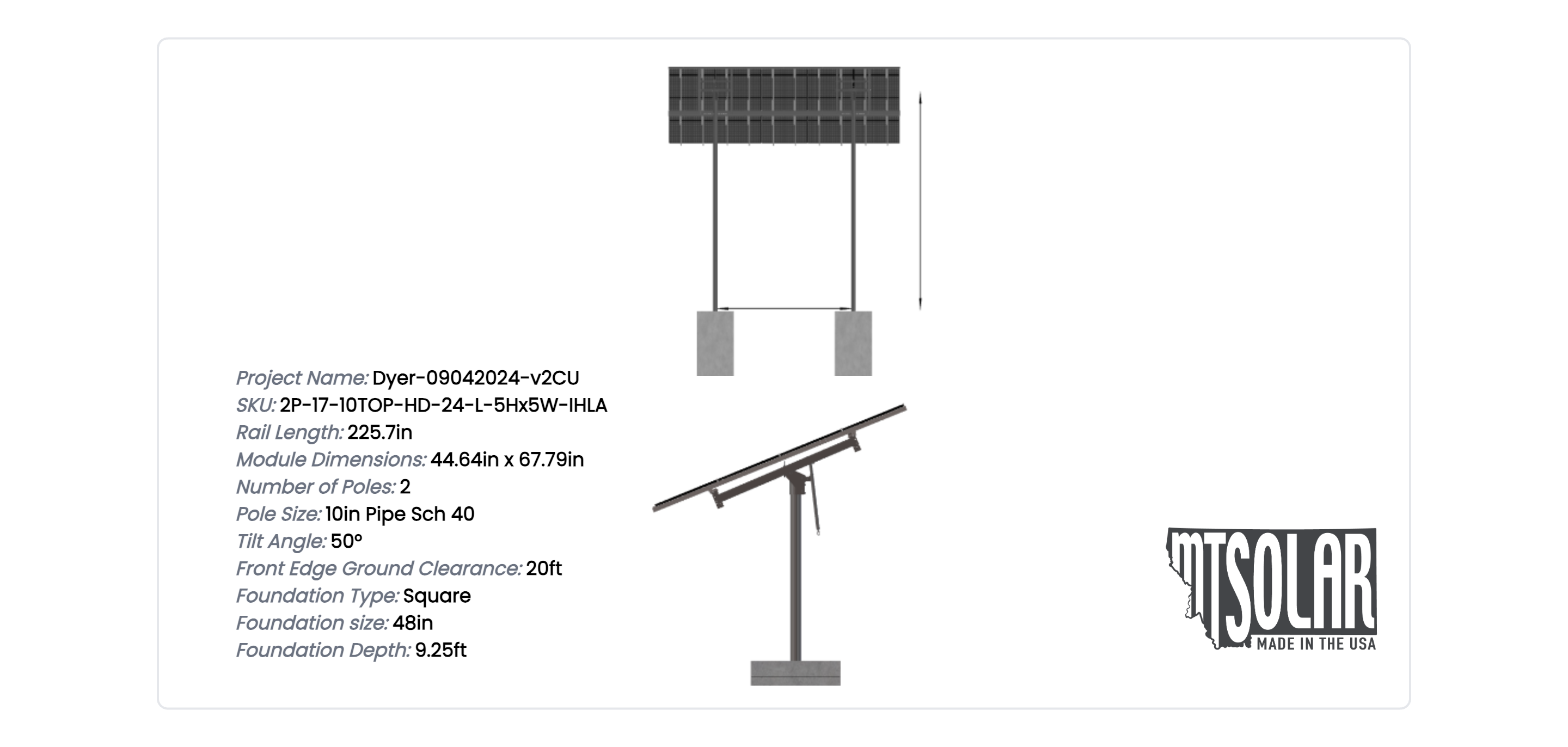

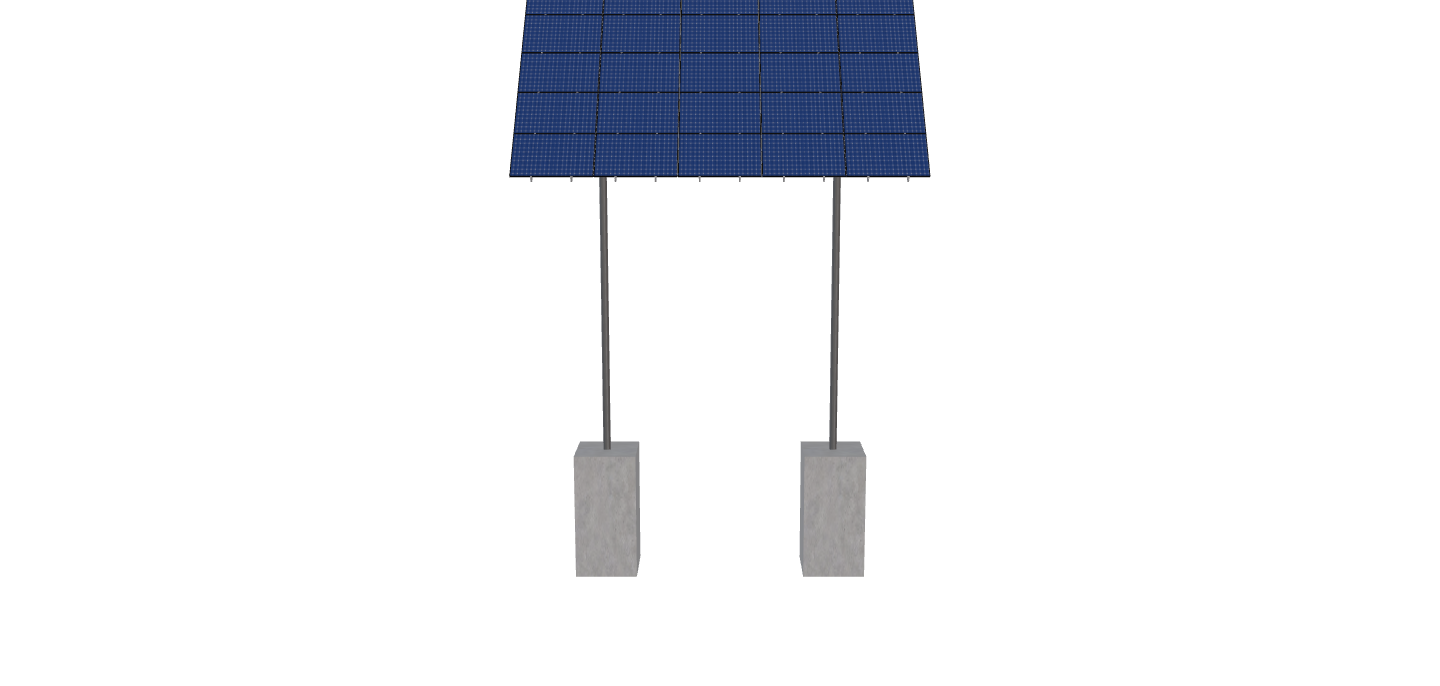

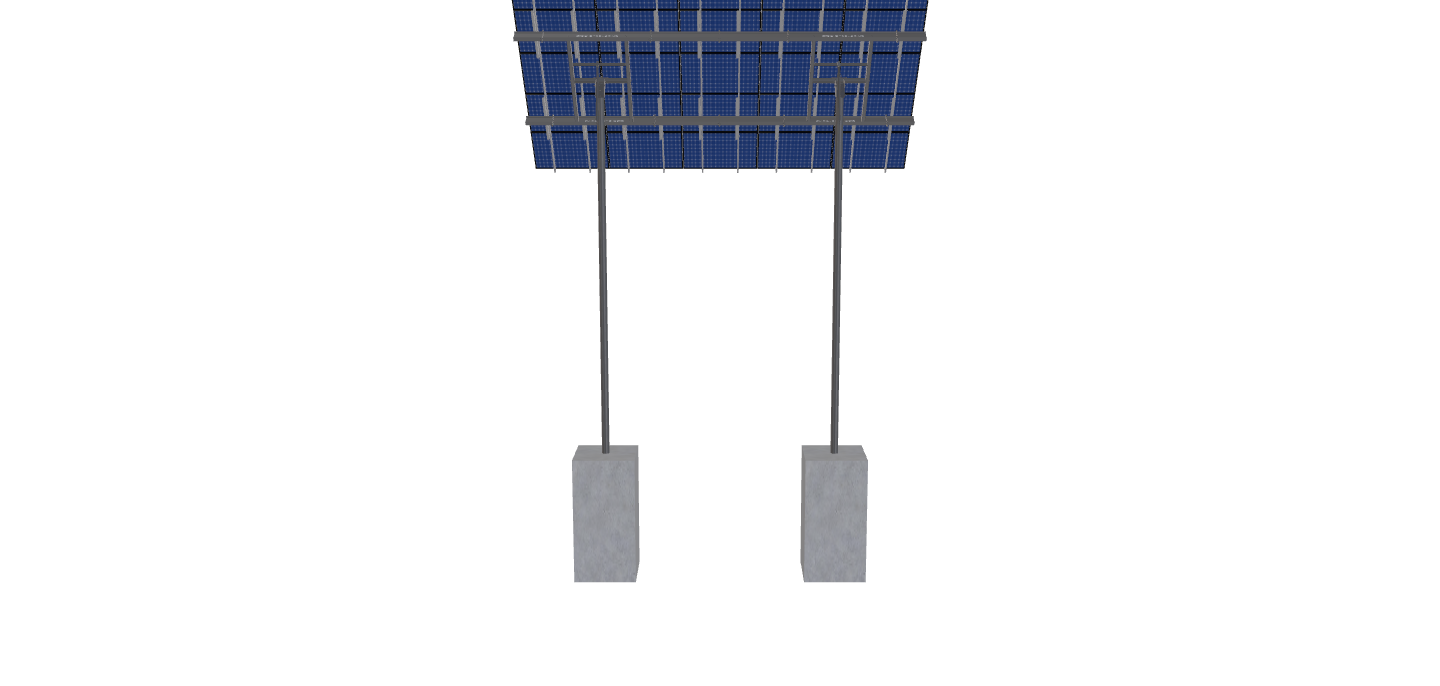

See 3D Model Here
Dyer-09042024-v2CU
$9,633.68
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.79 inches by 44.64 inches and an array layout of 5 wide by 5 high.
This mount fits on 2 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1901.46 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-10TOP-HD-24-L-5HX5W-IHLA |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 27.20 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 9.25 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 342.00 |
| GROUND CLEARANCE | 20.00 |
| NO POLES | 2.00 |
| MODULE AREA | 539.09 |
| ARRAY WIDTH | 28.66 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.70 |
| MODULE LENGTH | 67.79 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 28.50 |
| GROUND TO TOP | 34.41 |
| PROJECTED PANEL HEIGHT | 14.41 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 29.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | DYER-09042024-V2CU |
| SITE ADDRESS | 20755, BREWER, RD, GRASS, VALLEY, CA, 95949, USA |
| MODULE WIDTH | 44.64 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 5.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | HD |
| POLE OVERRIDE | 10, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 9633.68 |
| TOTAL WEIGHT | 1901.46 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/b7eaea93-8285-41d7-a585-0264cf8d881f.pdf |
|
| ID | 8381.00 |
| 3D Solar link |
