Ferris – V1Jb

$4,622.99

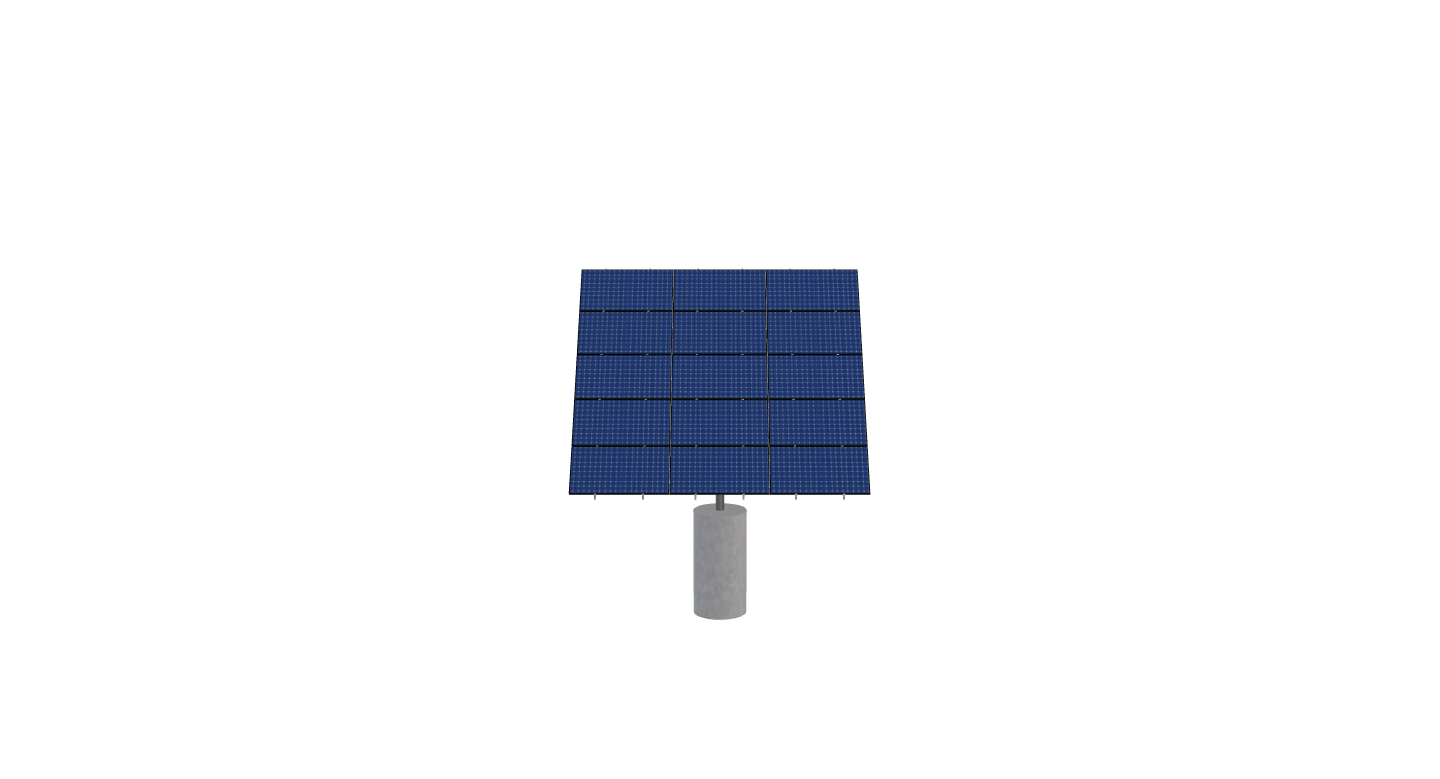

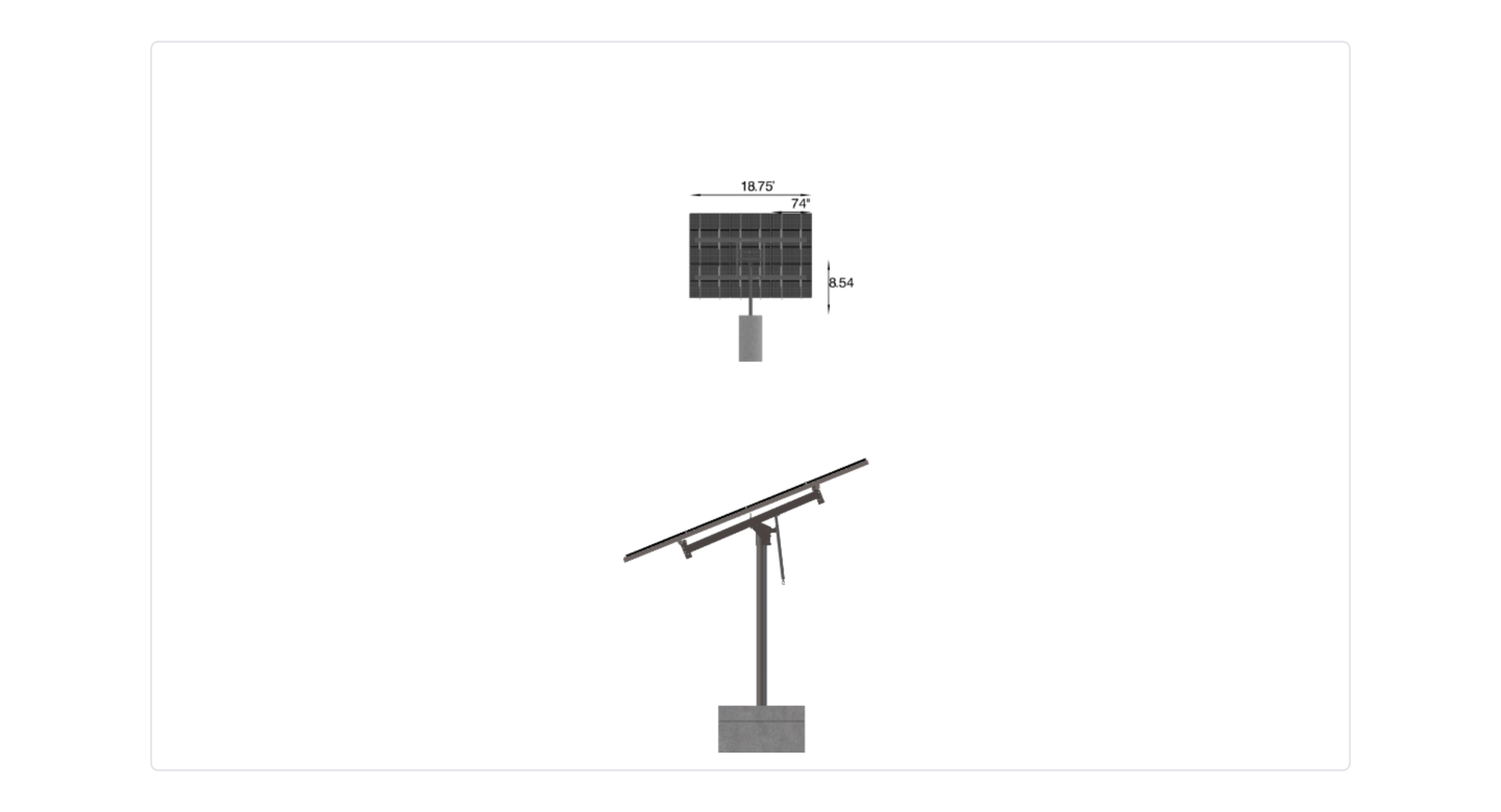

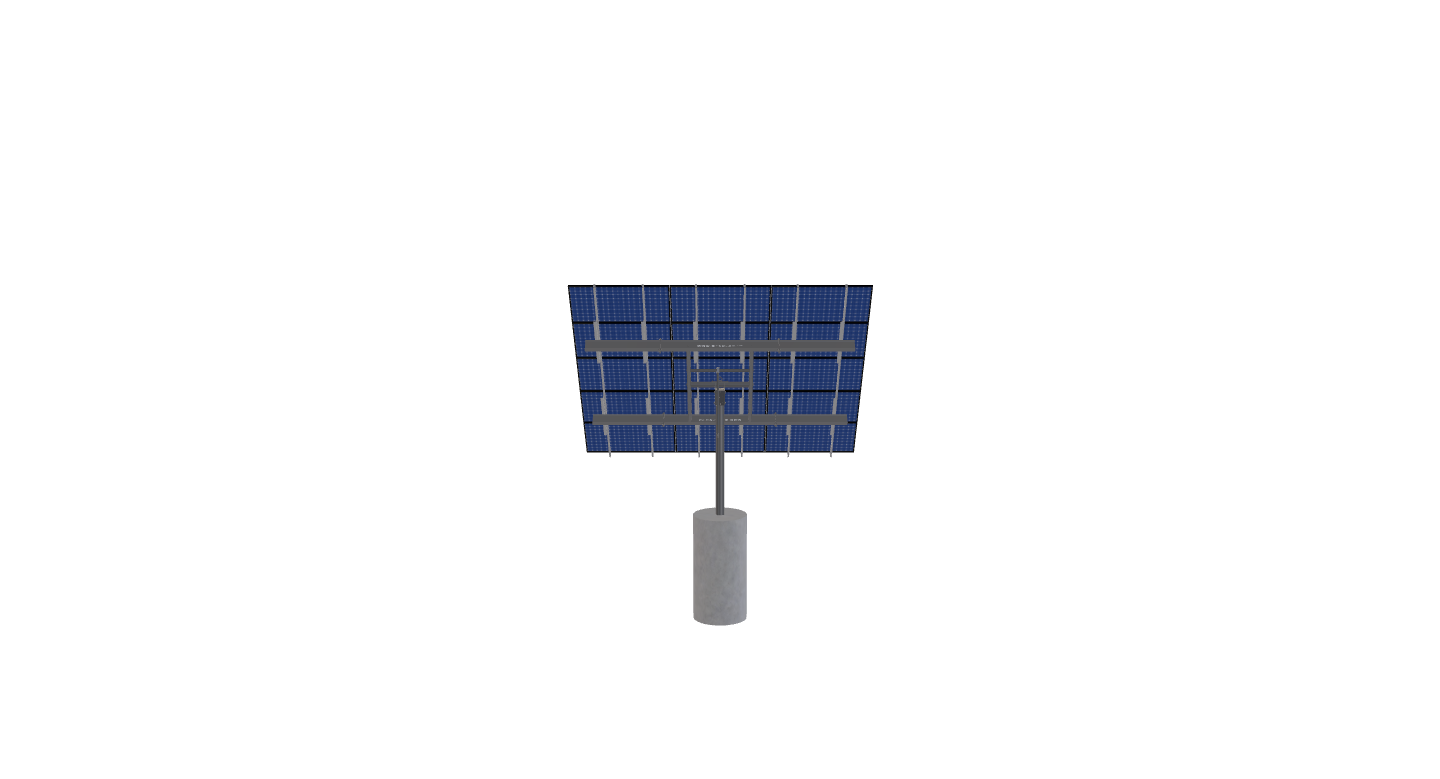

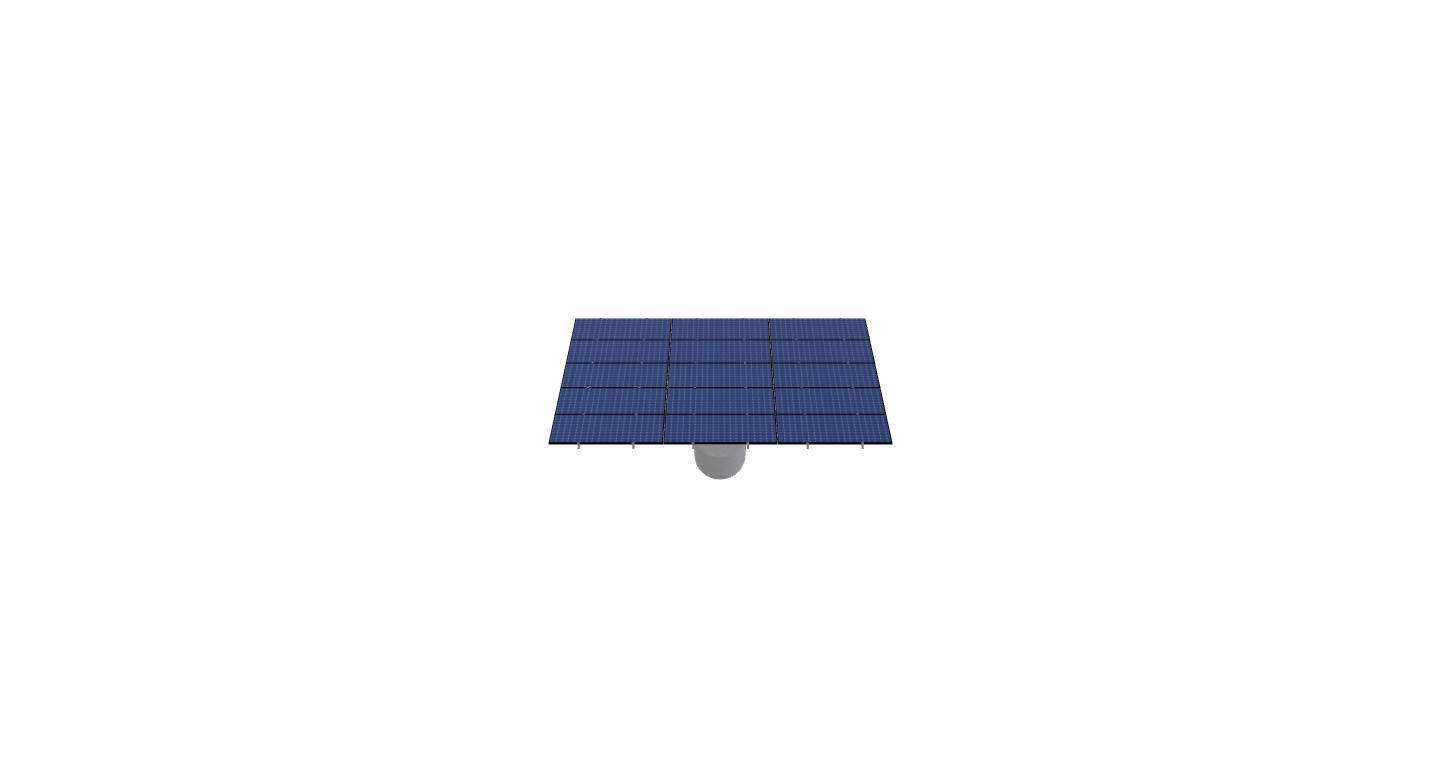

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-57-L-5Hx3W-7I53 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74 inches by 41.1 inches and an array layout of 3 wide by 5 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 907.3199999999999 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-5HX3W-7I53

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

8.54

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

49.00

CANTILEVER

204.00

GROUND CLEARANCE

2.00

NO POLES

1.00

MODULE AREA

325.00

ARRAY WIDTH

18.75

ARRAY HEIGHT

17.33

RAIL LENGTH

208.00

MODULE LENGTH

74.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

15.00

PROJECTED PANEL HEIGHT

12.92

PROJECT ID

FERRIS, -, V1JB

SITE ADDRESS

117, NORTHFIELD, ST, MONTPELIER, VT, 05602, USA

MODULE WIDTH

41.10

NUMBER ROWS

5.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

36, ROUND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

78.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

4622.99

TOTAL WEIGHT

907.32

TOTAL PALLETS

1.00
