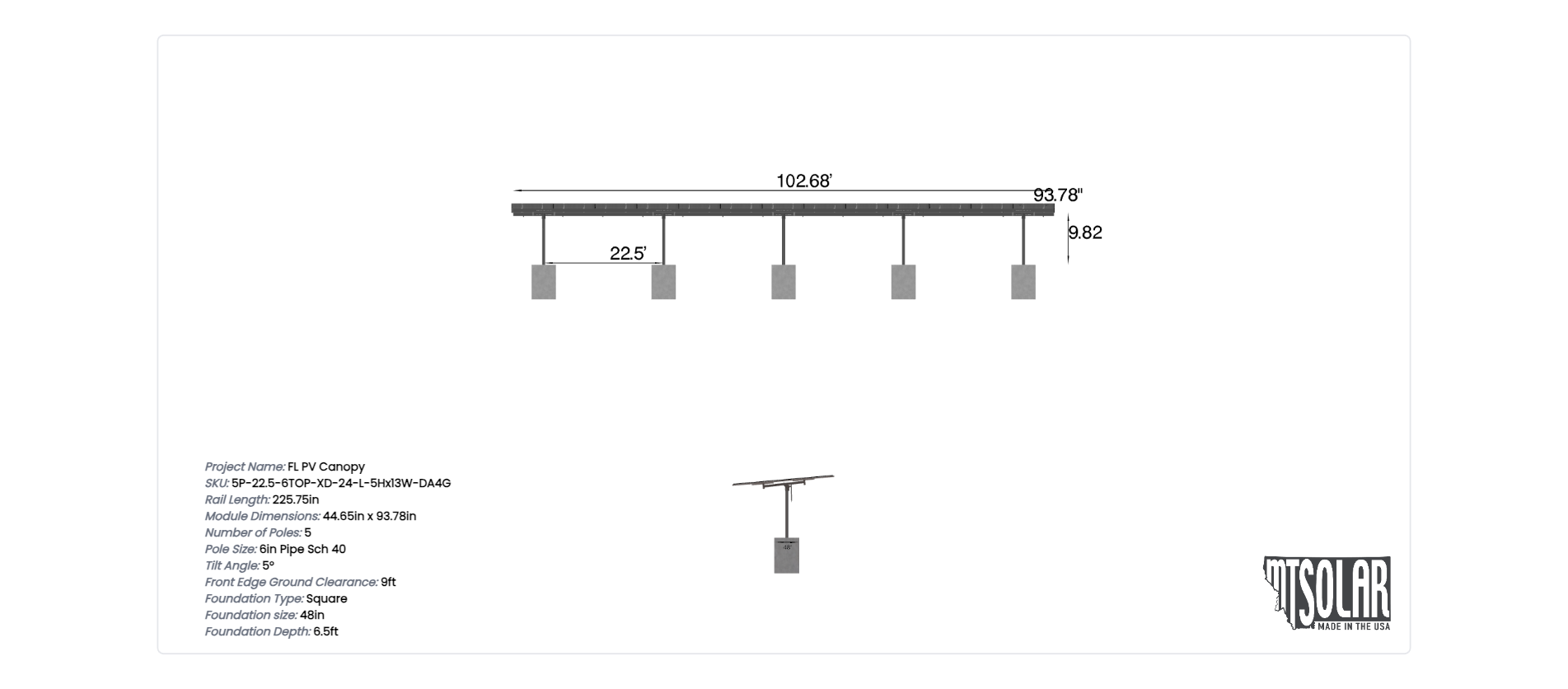

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.78 inches by 44.65 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

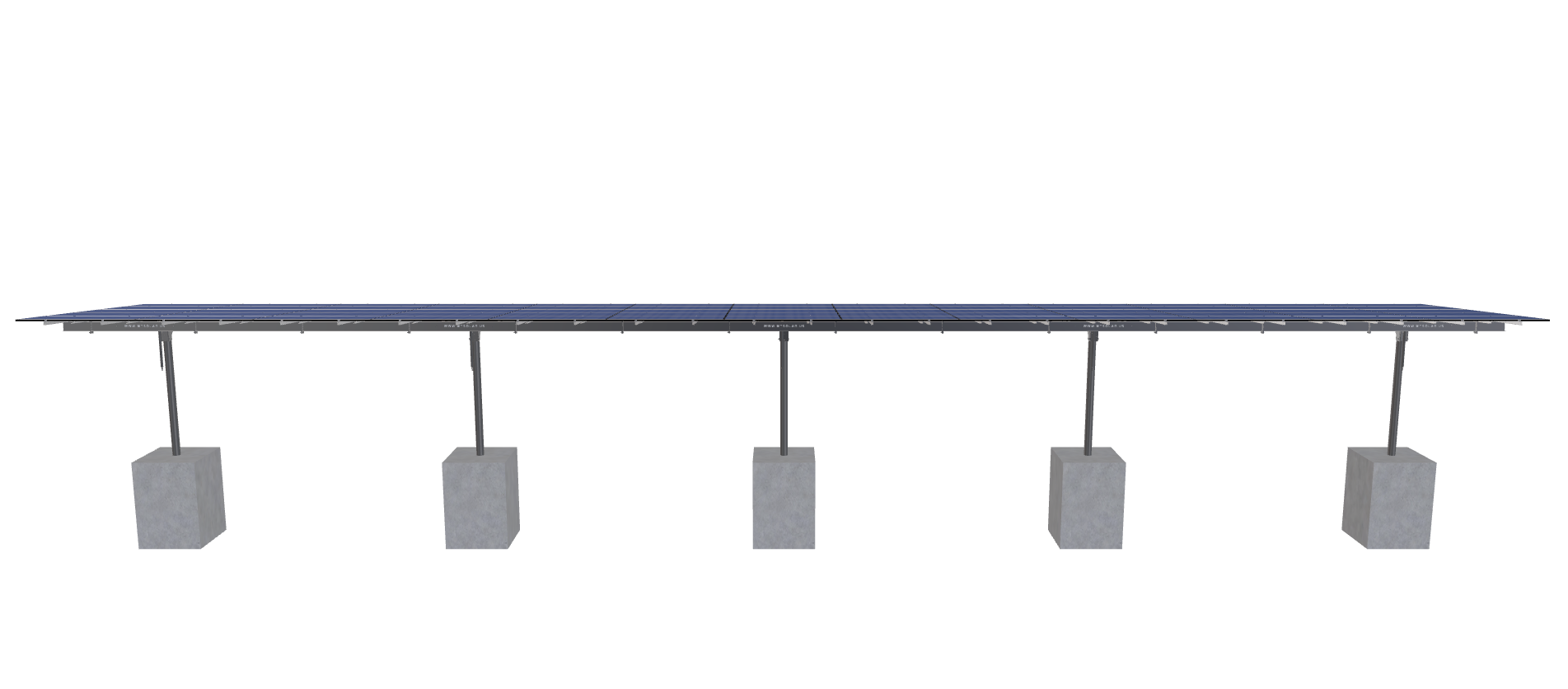

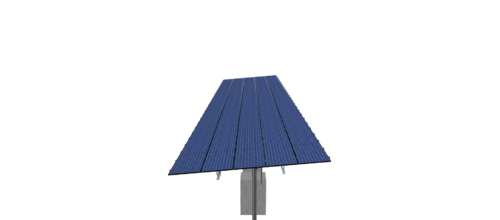

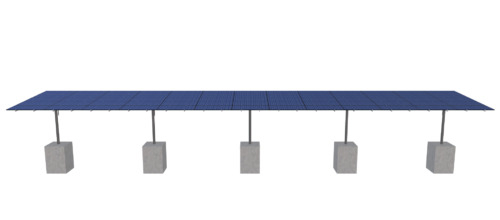

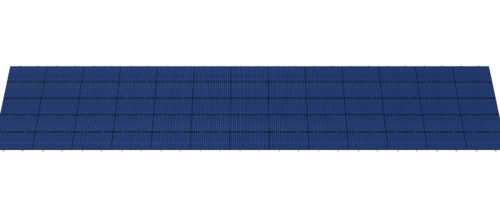

See 3D Model Here
FL PV Canopy
$29,078.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 93.78 inches by 44.65 inches and an array layout of 13 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 5921.870000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-XD-24-L-5HX13W-DA4G |
| DUTY SIZE | XD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 5.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 9.82 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 6.50 |
| TILT ANGLE | 5.00 |
| CANTILEVER | 1218.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 5.00 |
| MODULE AREA | 1931.64 |
| ARRAY WIDTH | 102.68 |
| ARRAY HEIGHT | 18.81 |
| RAIL LENGTH | 225.75 |
| MODULE LENGTH | 93.78 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 101.50 |
| GROUND TO TOP | 10.64 |
| PROJECTED PANEL HEIGHT | 1.64 |
| WIND SPEED OVERRIDE | 140.00 |
| SNOW LOAD OVERRIDE | 0.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | ZACH, BRINKER |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 919-462-7397 |
| PROJECT ID | FL, PV, CANOPY |
| SITE ADDRESS | WINTER, HAVEN, FL, USA |
| MODULE WIDTH | 44.65 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 13.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 29078.81 |
| TOTAL WEIGHT | 5921.87 |
| TOTAL PALLETS | 5.00 |
https://skycivquotes.s3.amazonaws.com/286db148-3110-446a-8330-17dfa51c0ebe.pdf |
|
| ID | 8724.00 |
| 3D Solar link |
