This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.25 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

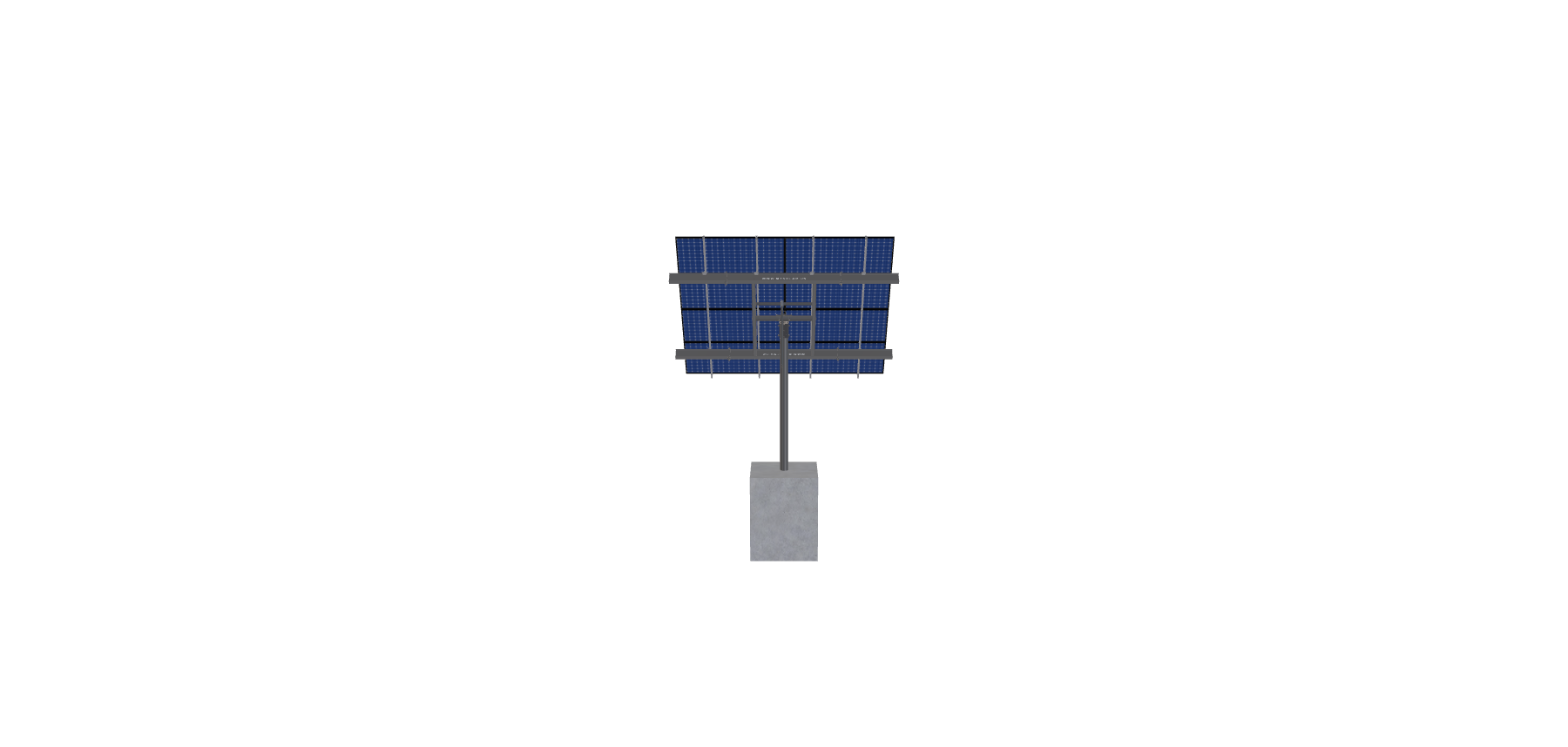

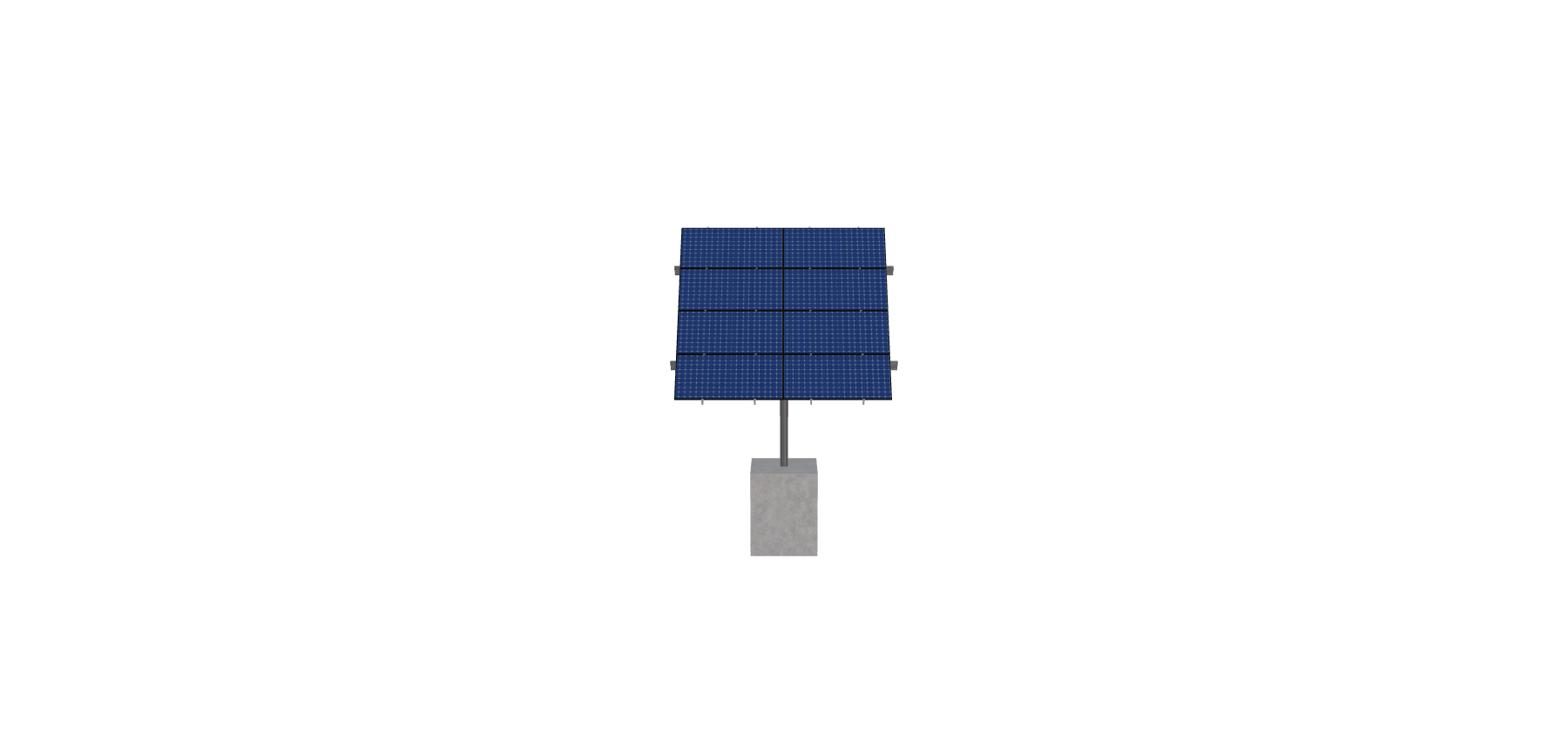

See 3D Model Here
GERRY-4×2-v2cu
$3,626.81
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 41.25 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

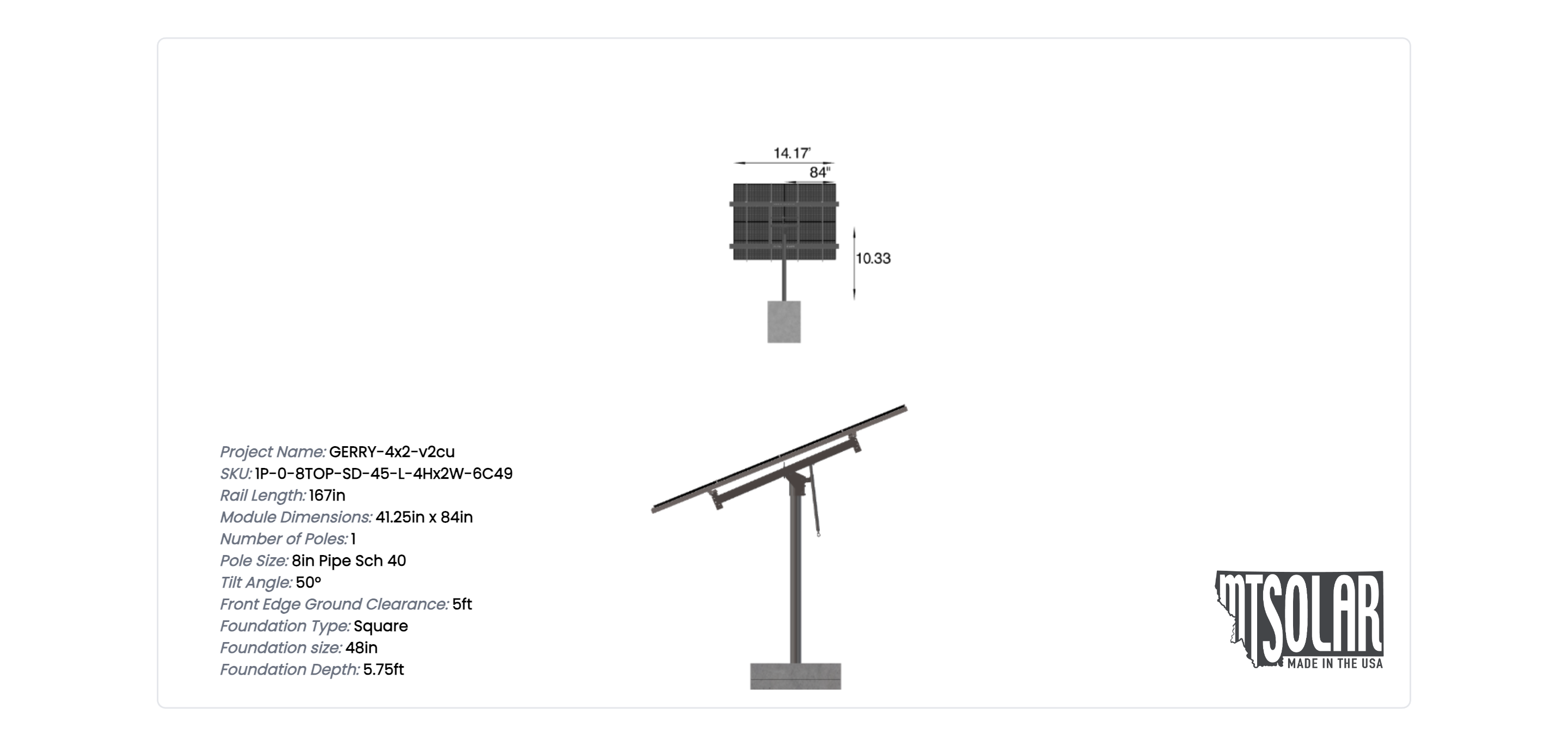

Additional information
| Weight | 641.44 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-8TOP-SD-45-L-4HX2W-6C49 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.33 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 180.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 197.15 |
| ARRAY WIDTH | 14.17 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 15.00 |
| GROUND TO TOP | 15.66 |
| PROJECTED PANEL HEIGHT | 10.66 |
| WIND SPEED OVERRIDE | 101.00 |
| SNOW LOAD OVERRIDE | 95.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | GERRY-4X2-V2CU |
| SITE ADDRESS | LOWVILLE, NY, 13367, USA |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | 8, 40 |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 3626.81 |
| TOTAL WEIGHT | 641.44 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/91329ca2-a26b-491a-9a10-f0d49741378c.pdf |
|
| ID | 8723.00 |
| 3D Solar link |
