This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 55.1 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

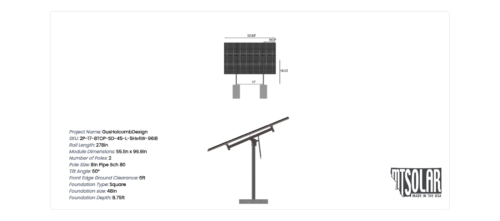

See 3D Model Here
GusHolcombDesign
$8,228.18
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 96.9 inches by 55.1 inches and an array layout of 4 wide by 5 high.
This mount fits on 2 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1599.76 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-8TOP-SD-45-L-5HX4W-96I8 |
| DUTY SIZE | SD |
| POLE SIZE | 8IN, PIPE, SCH, 80 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 16.03 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 60.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 2.00 |
| MODULE AREA | 756.01 |
| ARRAY WIDTH | 32.63 |
| ARRAY HEIGHT | 23.17 |
| RAIL LENGTH | 278.00 |
| MODULE LENGTH | 96.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 26.06 |
| PROJECTED PANEL HEIGHT | 20.06 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | MIKE, KING |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 4068805952.00 |
| PROJECT ID | GUSHOLCOMBDESIGN |
| SITE ADDRESS | BELGRADE, MT, 59714, USA |
| MODULE WIDTH | 55.10 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 8228.18 |
| TOTAL WEIGHT | 1599.76 |
| TOTAL PALLETS | 2.00 |
