This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.5 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

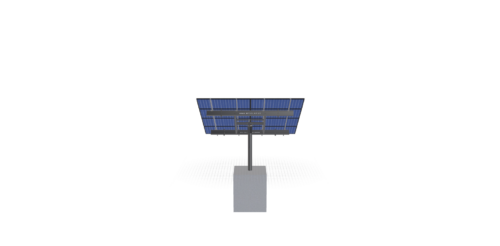

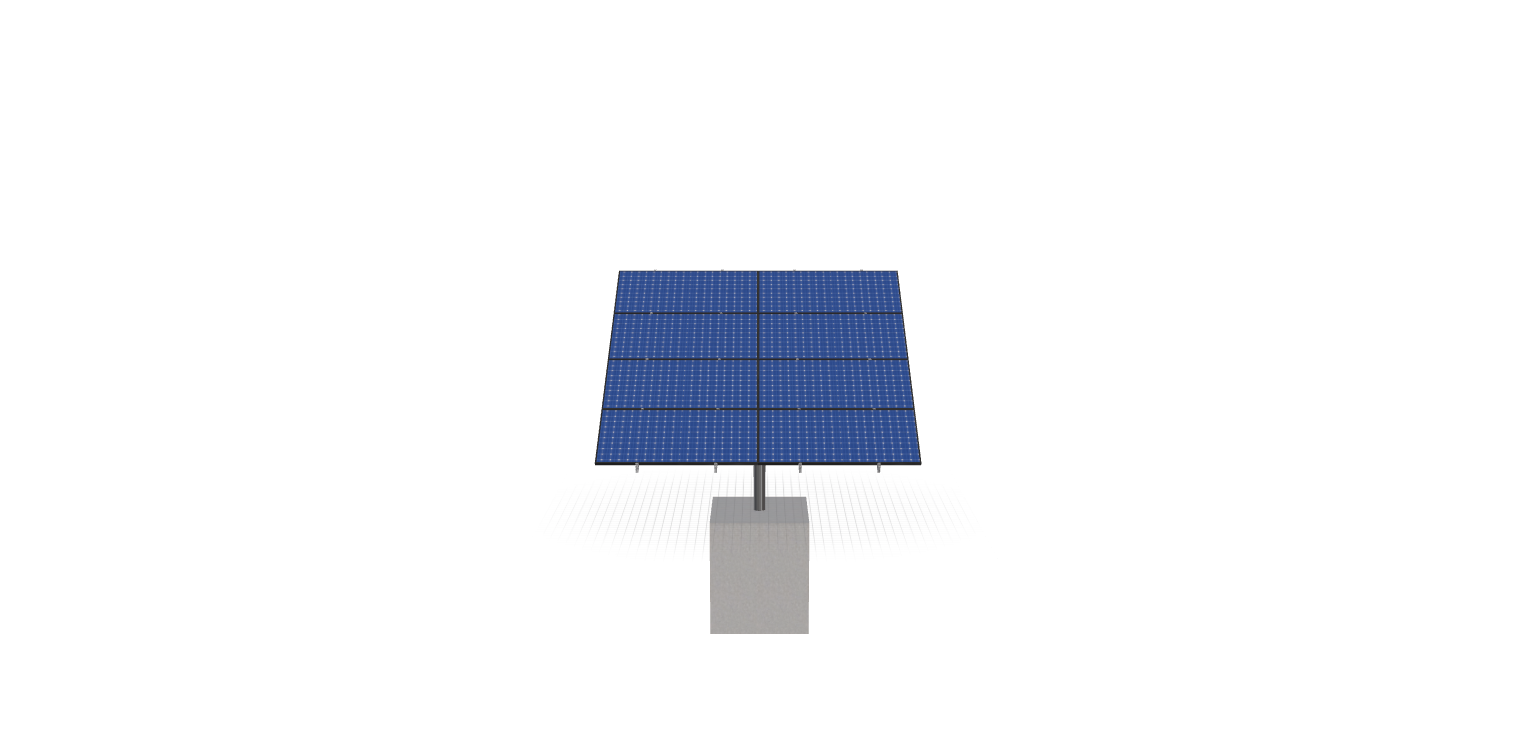

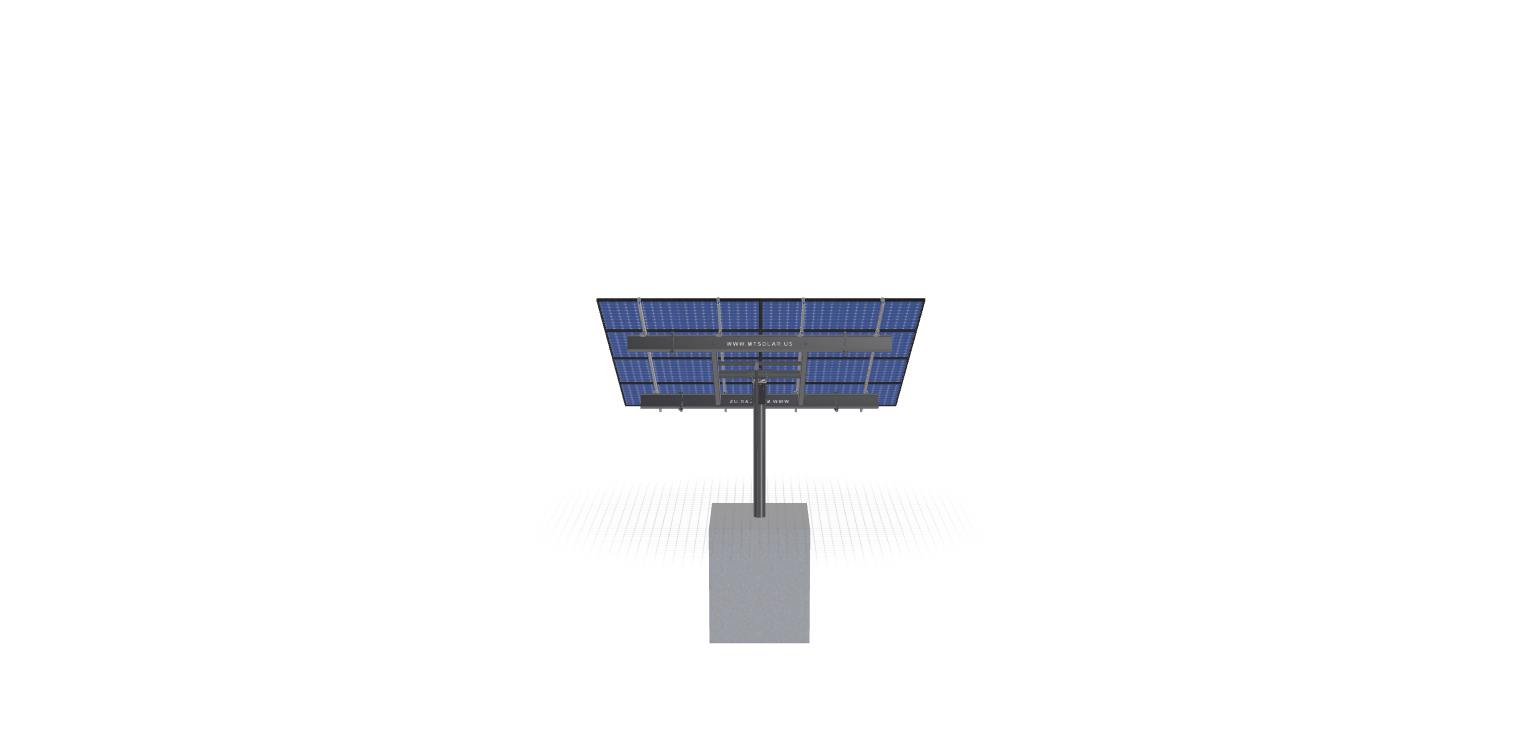

See 3D Model Here
HedgesRevB
$3,306.69
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.12 inches by 41.5 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
Weight | 563.44 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
SKU CODE | 1P-0-6TOP-SD-24-L-4HX2W-LDHF |
DUTY SIZE | SD |
POLE SIZE | 6IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF POLES | 1.00 |
POLE SPACING | 0.00 |
POLE HEIGHT | 6.50 |
WING SPAN | 24.00 |
MAX FOUNDATION DEPTH | 5.25 |
TILT ANGLE | 30.00 |
CANTILEVER | 138.00 |
GROUND CLEARANCE | 3.00 |
NO POLES | 1.00 |
MODULE AREA | 193.95 |
ARRAY WIDTH | 13.85 |
ARRAY HEIGHT | 14.00 |
RAIL LENGTH | 168.00 |
MODULE LENGTH | 82.12 |
PASSED OVERHANG CHECK | TRUE |
MODULE WIDTH GAP | 0.50 |
MODULE LENGTH GAP | 1.00 |
TOTAL FRAME LENGTH | 11.50 |
GROUND TO TOP | 9.96 |
PROJECTED PANEL HEIGHT | 6.92 |
WIND SPEED OVERRIDE | NULL |
SNOW LOAD OVERRIDE | NULL |
DIRECT SNOW LOAD | FALSE |
PROJECT ID | HEDGESREVB |
SITE ADDRESS | 1280, CROSS, RD, CHURCH, RD, BLAND, MO, 65014, USA |
MODULE WIDTH | 41.50 |
NUMBER ROWS | 4.00 |
NUMBER COLUMNS | 2.00 |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
FRAME DUTY OVERRIDE | AUTO |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48.00 |
CHECK RAILS | FALSE |
TOTAL PRICE | 3306.69 |
TOTAL WEIGHT | 563.44 |
TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/c3c0294f-95c0-406c-83e9-e8fedca220db.pdf |
|
ID | 379.00 |
3D Solar link |
