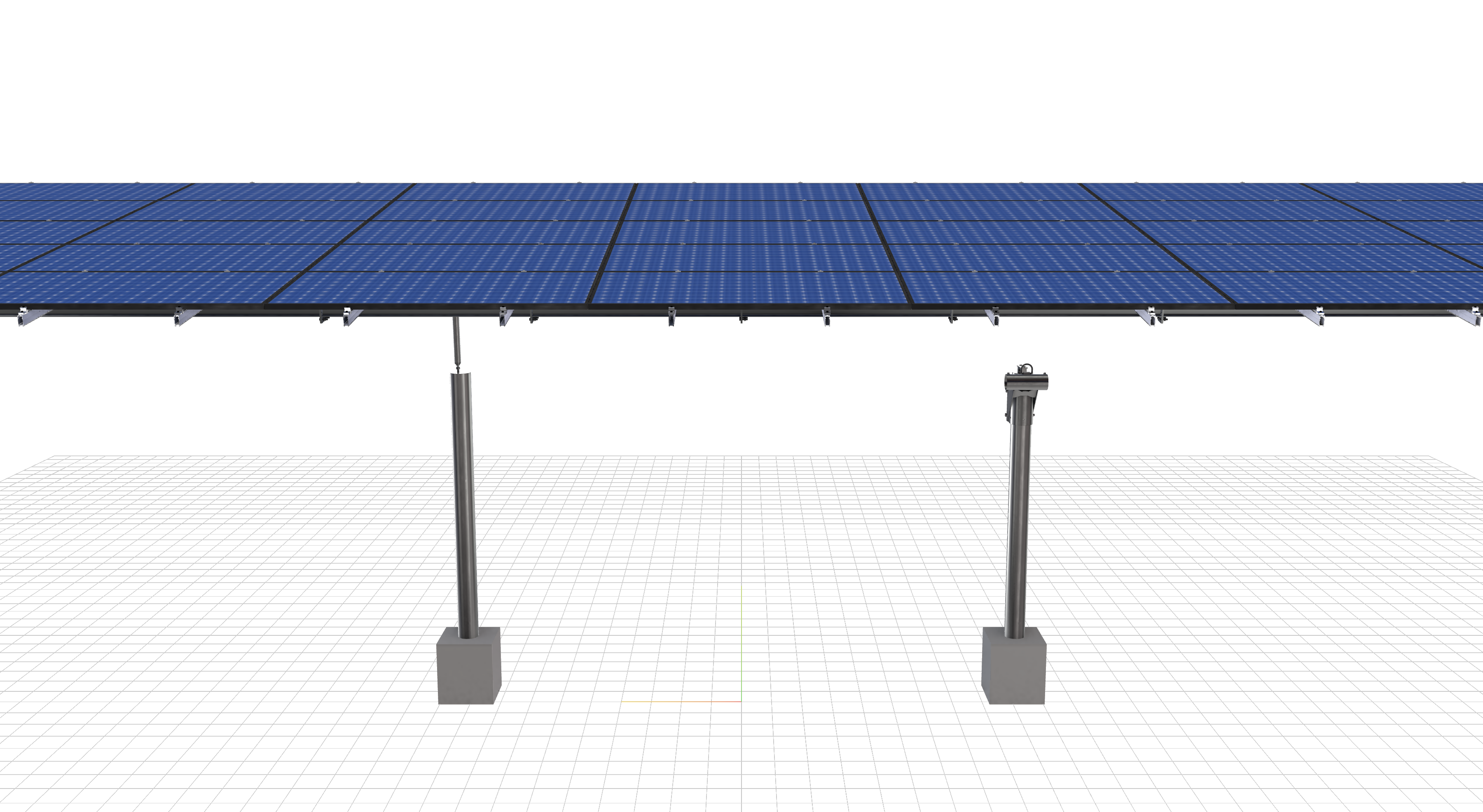

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.1 inches by 39.3 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
HeraeusSolarPanelCarportsSFSCA-JB-RevJ
$24,347.16
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.1 inches by 39.3 inches and an array layout of 15 wide by 5 high.
This mount fits on 5 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 3448 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 5P-22.5-6TOP-SD-24-L-5HX15W |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF_POLES | 5 |
| POLE SPACING | 15 |
| POLE HEIGHT | 9.01 |
| WING SPAN | 24 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| TILT ANGLE | 7 |
| CANTILEVER | 1218 |
| GROUND CLEARANCE | 8 |
| NO POLES | 5 |
| MODULE AREA | 1701.8645833333333 |
| ARRAY WIDTH | 102.625 |
| ARRAY HEIGHT | 16.583333333333332 |
| RAIL LENGTH | 199 |
| MODULE LENGTH | 81.1 |
| PASSED OVERHANG_CHECK | TRUE |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 101.5 |
| GROUND TO_TOP | 10.008305221530659 |
| PROJECTED PANEL_HEIGHT | 1.995610498259289 |
| WIND SPEED_OVERRIDE | NULL |
| SNOW LOAD_OVERRIDE | NULL |
| DIRECT SNOW_LOAD | FALSE |
| PROJECT ID | HERAEUSSOLARPANELCARPORTSSFSCA-JB-REVJ |
| SITE ADDRESS | 15524, CARMENITA, RD, SANTA, FE, SPRINGS, CA, 90670, USA |
| MODULE WIDTH | 39.3 |
| NUMBER ROWS | 5 |
| NUMBER COLUMNS | 15 |
| MAIN PIPE_SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 24347.159999999996 |
| TOTAL WEIGHT | 4854.6 |
| TOTAL PALLETS | 5 |
