This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.1 inches by 39.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

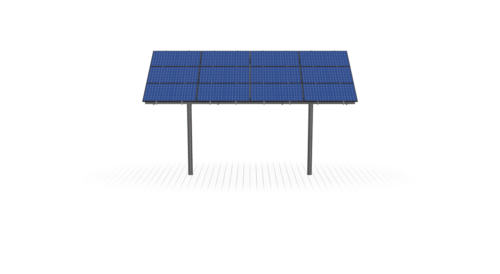

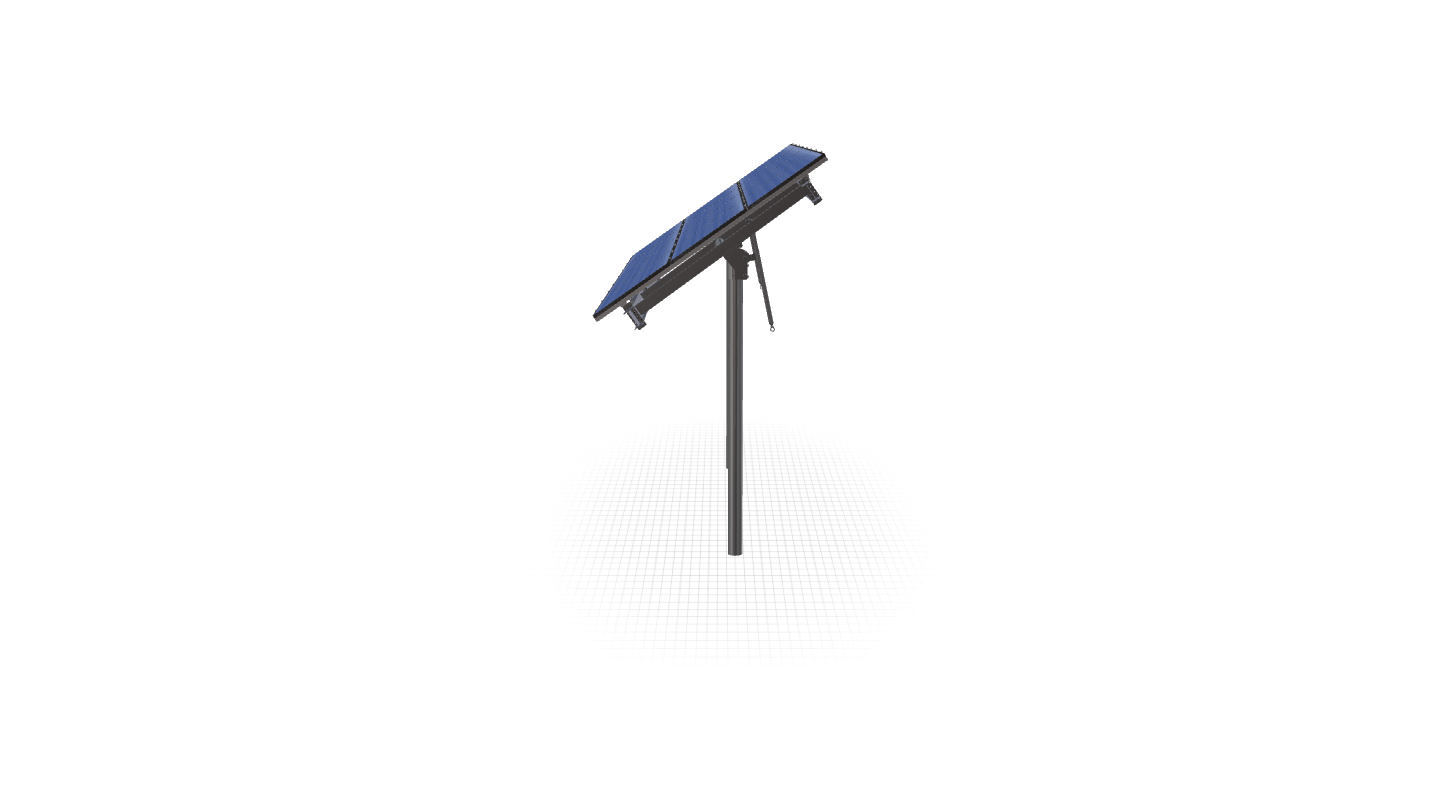

See 3D Model Here
HomeSolar-RevA
$6,484.09
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 73.1 inches by 39.3 inches and an array layout of 4 wide by 3 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 1126.18 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-15-6TOP-SD-12-L-3HX4W-69KC |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 15.00 |
| POLE HEIGHT | 11.85 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 8.00 |
| TILT ANGLE | 35.00 |
| CANTILEVER | 294.00 |
| GROUND CLEARANCE | 9.00 |
| NO POLES | 2.00 |
| MODULE AREA | 245.76 |
| ARRAY WIDTH | 24.70 |
| ARRAY HEIGHT | 9.95 |
| RAIL LENGTH | 119.40 |
| MODULE LENGTH | 73.10 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 24.50 |
| GROUND TO TOP | 14.67 |
| PROJECTED PANEL HEIGHT | 5.64 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HOMESOLAR-REVA |
| SITE ADDRESS | 1245, WYNNSTONE, DR, ANN, ARBOR, MI, 48105, USA |
| MODULE WIDTH | 39.30 |
| NUMBER ROWS | 3.00 |
| NUMBER COLUMNS | 4.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | ROUND |
| FOUNDATION SIZE | 36.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 6484.09 |
| TOTAL WEIGHT | 1126.18 |
| TOTAL PALLETS | 2.00 |
https://skycivquotes.s3.amazonaws.com/daafdd60-0311-449f-9d85-d7a8840f91e2.pdf |
|
| ID | 404.00 |
| 3D Solar link |
