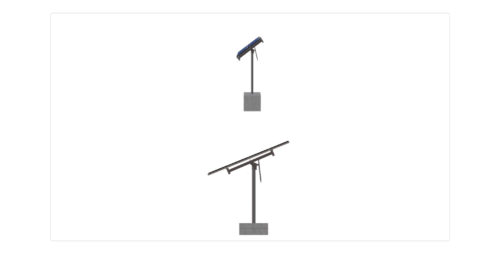

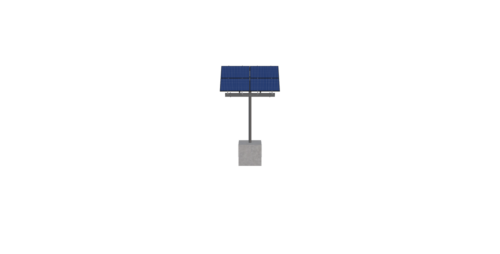

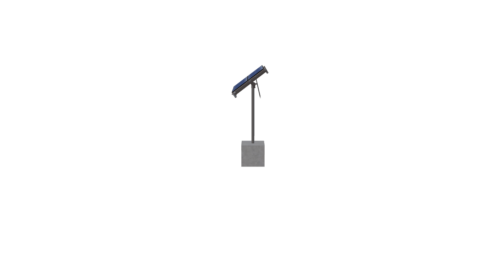

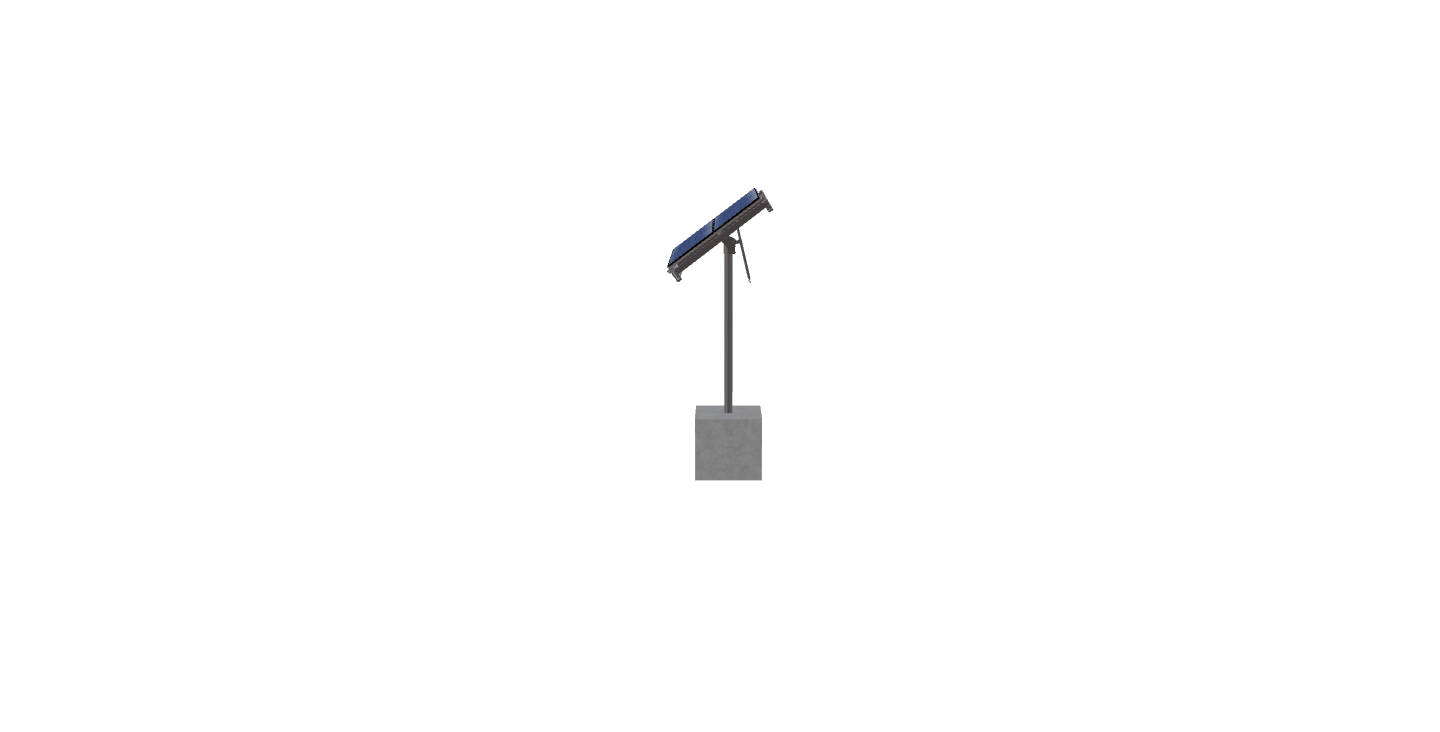

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.9 inches by 44.7 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Homesystem-JB-RevA
$2,924.49
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.9 inches by 44.7 inches and an array layout of 2 wide by 2 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 493.92 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-12-L-2HX2W-LEFJ |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | CYBER |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 12.27 |
| WING SPAN | 12.00 |
| MAX FOUNDATION DEPTH | 4.25 |
| TILT ANGLE | 37.00 |
| CANTILEVER | 114.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 1.00 |
| MODULE AREA | 86.51 |
| ARRAY WIDTH | 11.48 |
| ARRAY HEIGHT | 7.53 |
| RAIL LENGTH | 90.40 |
| MODULE LENGTH | 67.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 9.50 |
| GROUND TO TOP | 14.51 |
| PROJECTED PANEL HEIGHT | 4.48 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | HOMESYSTEM-JB-REVA |
| SITE ADDRESS | 1033, GOLDFINCH, LN, PATTERSON, CA, 95363, USA |
| MODULE WIDTH | 44.70 |
| NUMBER ROWS | 2.00 |
| NUMBER COLUMNS | 2.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| TOTAL PRICE | 2924.49 |
| TOTAL WEIGHT | 493.92 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/ef15bbb6-9f84-4ac3-847f-371022f9959f.pdf |
|
| ID | 2071.00 |
| 3D Solar link |
