J BAR L Big House

$18,871.92

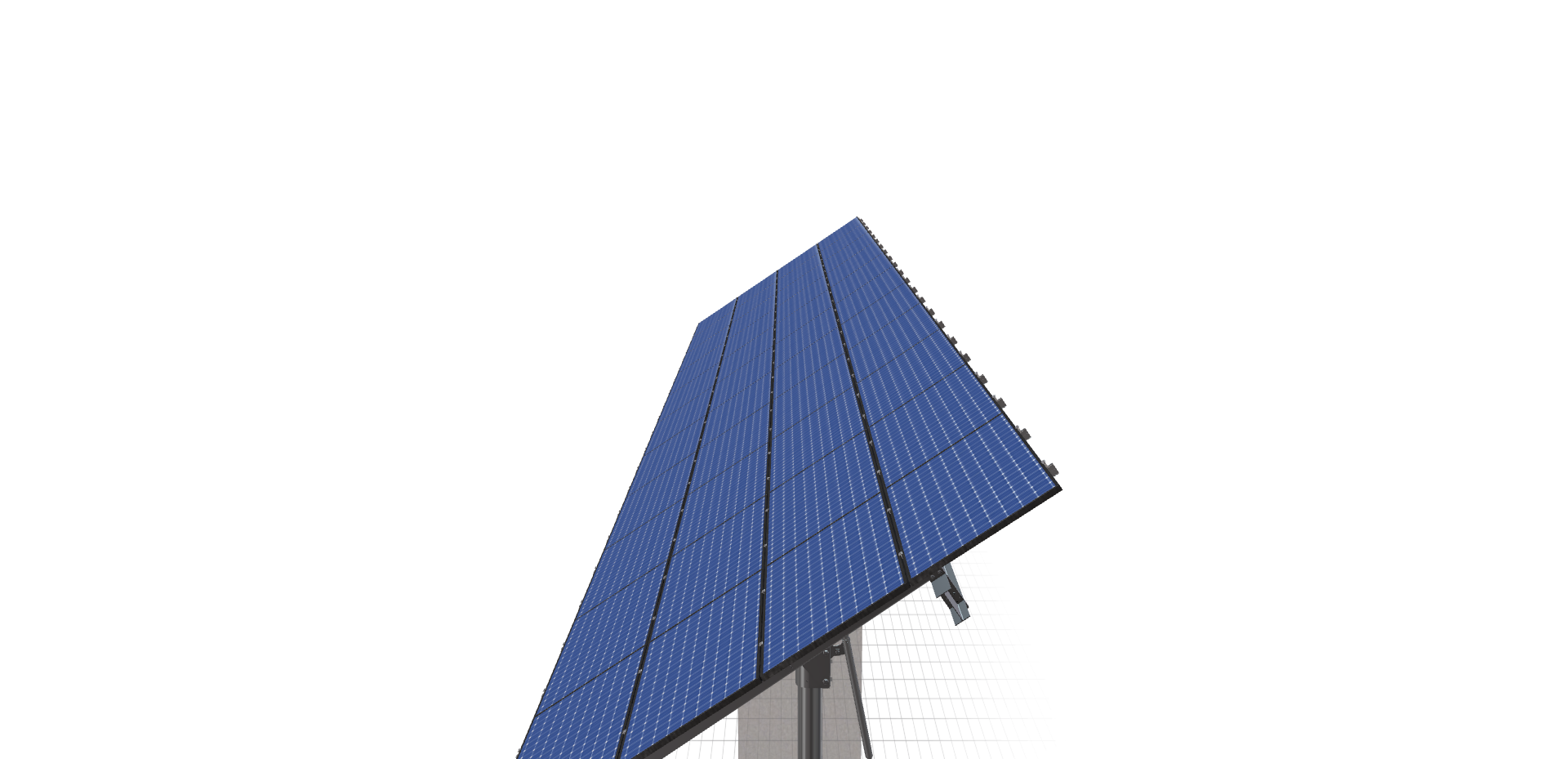

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 4P-22.5-6TOP-HD-12-L-4Hx11W-79GF Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83 inches by 41 inches and an array layout of 11 wide by 4 high.
This mount fits on 4 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 3506.58 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

4P-22.5-6TOP-HD-12-L-4HX11W-79GF

DUTY SIZE

HD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

4.00

POLE SPACING

22.50

POLE HEIGHT

6.87

WING SPAN

12.00

MAX FOUNDATION DEPTH

5.75

TILT ANGLE

34.00

CANTILEVER

924.00

GROUND CLEARANCE

3.00

NO POLES

4.00

MODULE AREA

1065.17

ARRAY WIDTH

77.00

ARRAY HEIGHT

13.83

RAIL LENGTH

166.00

MODULE LENGTH

83.00

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

77.00

GROUND TO TOP

10.69

PROJECTED PANEL HEIGHT

7.64

PROJECT ID

J, BAR, L, BIG, HOUSE

SITE ADDRESS

303, CRAZY, D, LN, MELVILLE, MT, 59055, USA

MODULE WIDTH

41.00

NUMBER ROWS

4.00

NUMBER COLUMNS

11.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

120.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

TOTAL PRICE

18871.92

TOTAL WEIGHT

3506.58

TOTAL PALLETS

4.00

pdf

https://skycivquotes.s3.amazonaws.com/954be64a-4af5-45a5-b0bf-b70c9a8c0340.pdf

ID

531.00
