JeffSprout-JB-RevA

$9,058.43

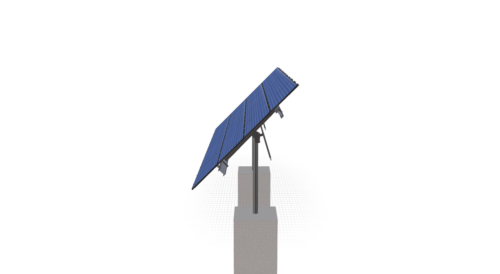

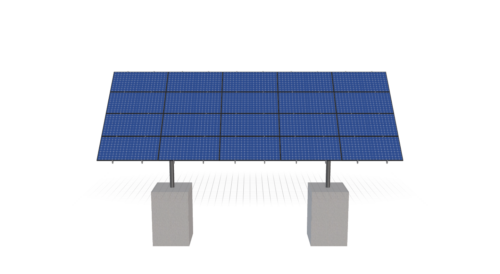

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 2P-19.75-8TOP-HD-45-L-4Hx5W-L5EJ Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 5 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1675.3 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-19.75-8TOP-HD-45-L-4HX5W-L5EJ

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

19.75

POLE HEIGHT

8.93

WING SPAN

45.00

MAX FOUNDATION DEPTH

7.00

TILT ANGLE

45.00

CANTILEVER

417.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

492.89

ARRAY WIDTH

35.38

ARRAY HEIGHT

13.93

RAIL LENGTH

167.20

MODULE LENGTH

83.90

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

34.75

GROUND TO TOP

13.79

PROJECTED PANEL HEIGHT

9.73

PROJECT ID

JEFFSPROUT-JB-REVA

SITE ADDRESS

5165, BEARS, DEN, TRAIL, SEDALIA, CO, 80135, USA

MODULE WIDTH

41.30

NUMBER ROWS

4.00

NUMBER COLUMNS

5.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

115.00

SNOW LOAD OVERRIDE

35.00

DIRECT SNOW LOAD

FALSE

TOTAL PRICE

9058.43

TOTAL WEIGHT

1675.30

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/aef7dc94-ec2a-4c08-9e95-5399f434b54f.pdf

ID

380.00
