JohnRadkeRevA

$4,000.30

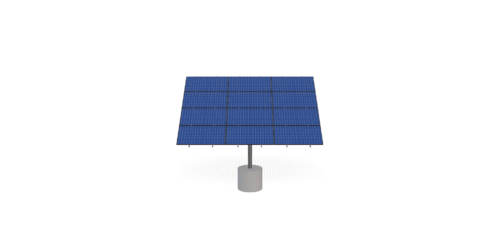

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

SKU: 1P-0-6TOP-SD-57-L-4Hx3W-9JF9 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 74.8 inches by 40.9 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 699.66 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-57-L-4HX3W-9JF9

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

7.96

WING SPAN

57.00

MAX FOUNDATION DEPTH

3.00

TILT ANGLE

35.00

CANTILEVER

204.00

GROUND CLEARANCE

4.00

NO POLES

1.00

MODULE AREA

261.51

ARRAY WIDTH

18.95

ARRAY HEIGHT

13.80

RAIL LENGTH

165.60

MODULE LENGTH

74.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

11.87

PROJECTED PANEL HEIGHT

7.82

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

PROJECT ID

JOHNRADKEREVA

SITE ADDRESS

11904, WEST, END, RD, ARCATA, CA, 95521, USA

MODULE WIDTH

40.90

NUMBER ROWS

4.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

FOUNDATION TYPE

ROUND

FOUNDATION SIZE

36.00

CHECK RAILS

TRUE

TOTAL PRICE

4000.30

TOTAL WEIGHT

699.66

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/7df5b0d5-4dbf-4095-8738-b31d854715a2.pdf

ID

437.00
