Knudsen system 1 of 3

$14,774.76

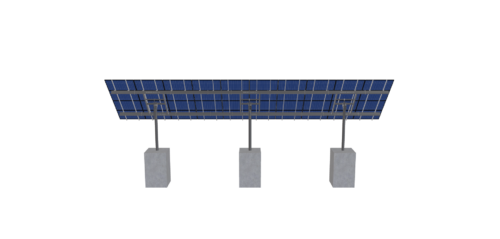

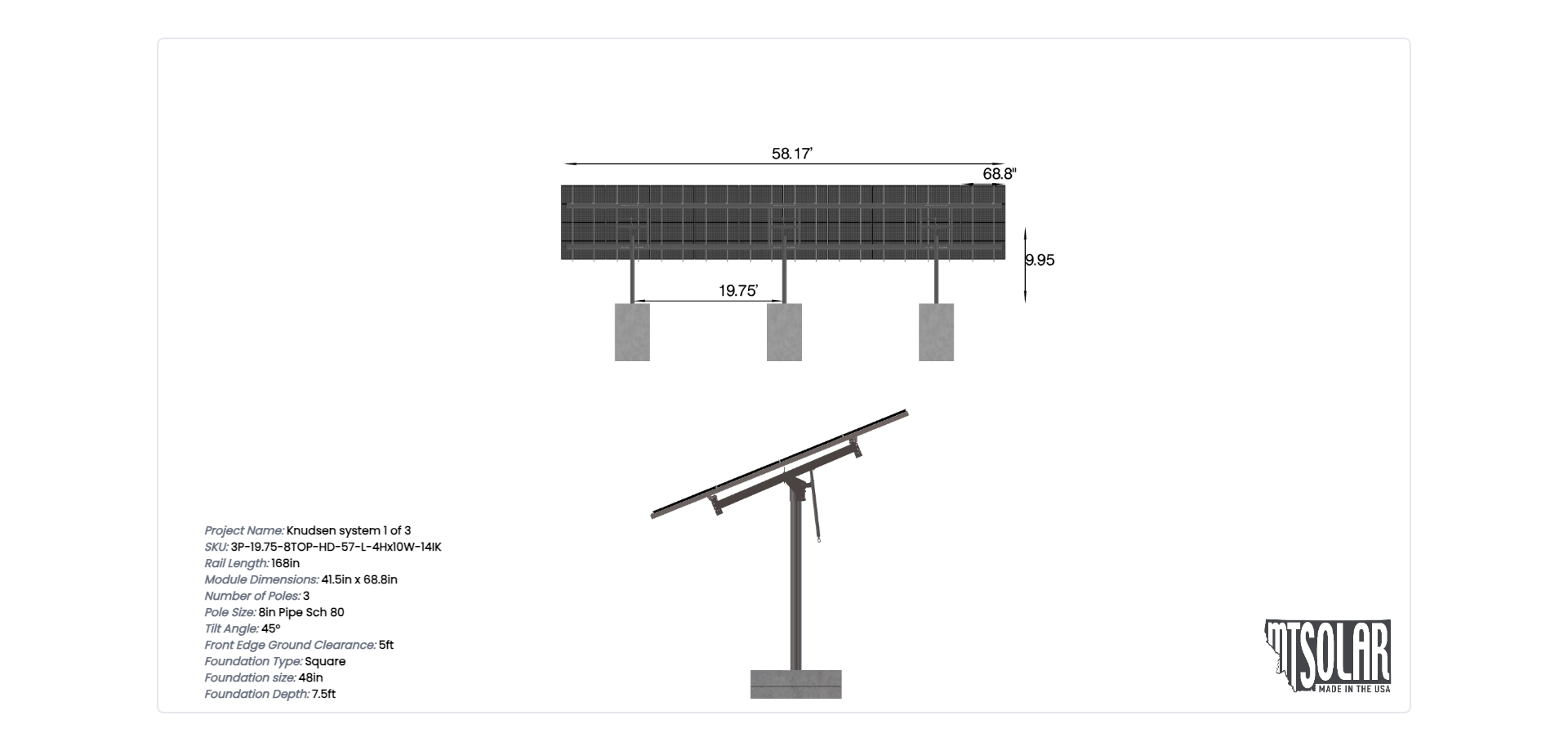

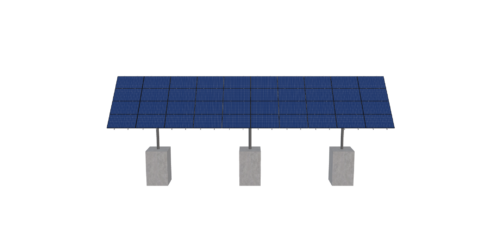

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 3P-19.75-8TOP-HD-57-L-4Hx10W-14IK Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 68.8 inches by 41.5 inches and an array layout of 10 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 80 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 2707.89 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

3P-19.75-8TOP-HD-57-L-4HX10W-14IK

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 80

PRODUCT TYPE

BEAM

NUMBER OF POLES

3.00

POLE SPACING

19.75

POLE HEIGHT

9.95

WING SPAN

57.00

MAX FOUNDATION DEPTH

7.50

TILT ANGLE

45.00

CANTILEVER

678.00

GROUND CLEARANCE

5.00

NO POLES

3.00

MODULE AREA

814.33

ARRAY WIDTH

58.17

ARRAY HEIGHT

14.00

RAIL LENGTH

168.00

MODULE LENGTH

68.80

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

56.50

GROUND TO TOP

14.84

PROJECTED PANEL HEIGHT

9.78

PROJECT ID

KNUDSEN, SYSTEM, 1, OF, 3

SITE ADDRESS

10650, HORSEBACK, RIDGE, RD, MISSOULA, MT, 59804, USA

MODULE WIDTH

41.50

NUMBER ROWS

4.00

NUMBER COLUMNS

10.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

110.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

14774.76

TOTAL WEIGHT

2707.89

TOTAL PALLETS

3.00

pdf

https://skycivquotes.s3.amazonaws.com/114e2d31-7d3e-4a14-b1db-76dfae3ca86f.pdf

ID

7410.00
