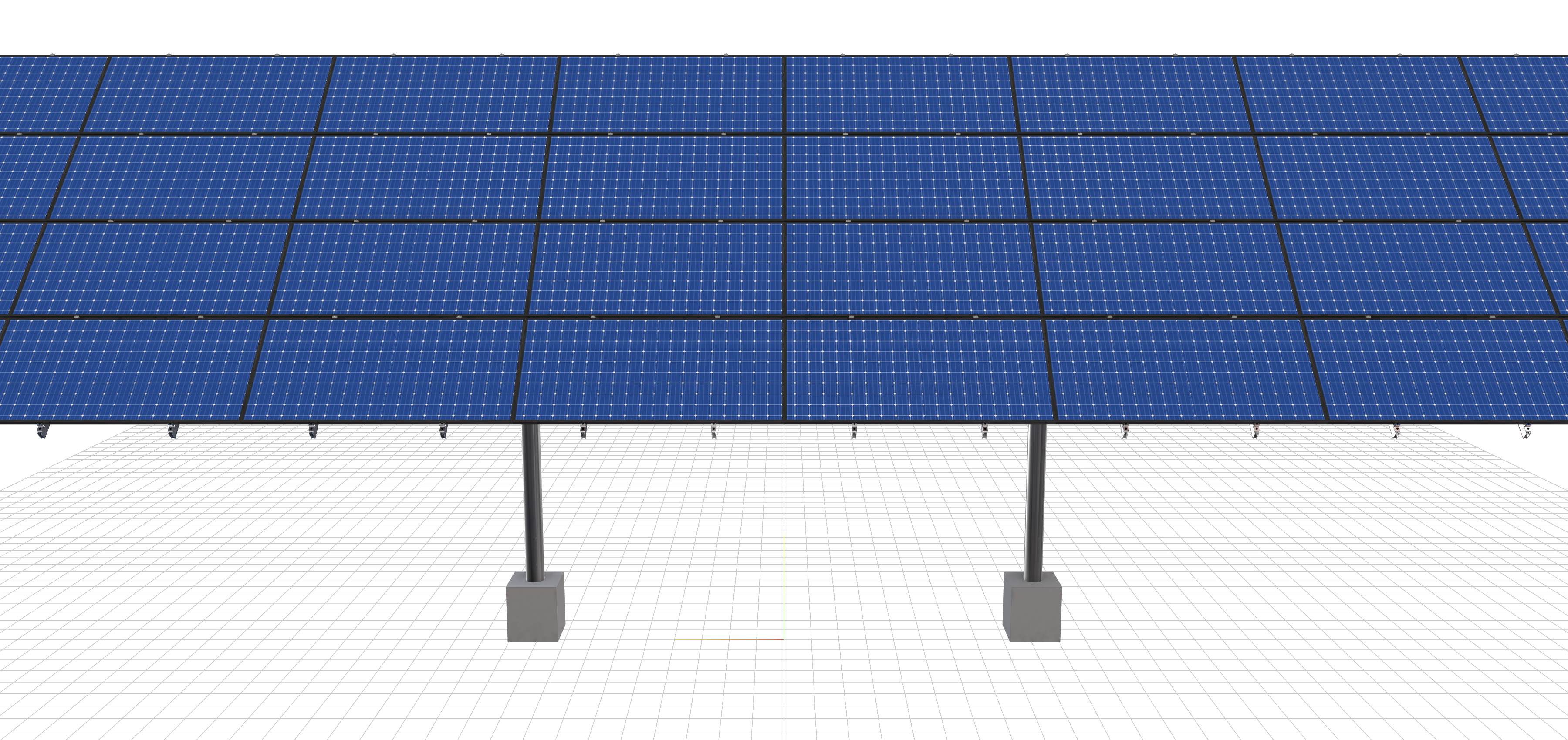

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
LudersWay-RevB
$12,377.06
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 82.44 inches by 40.87 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
https://solver.skyciv.com/temp/mergedpdf_mij2ofujgbkkokww.php |
|
| SKU CODE | 3P-19.75-8TOP-SD-45-L-4Hx8W |
| DUTY SIZE | SD |
| POLE SIZE | 8in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 3 |
| POLE SPACING | 15 |
| POLE HEIGHT | 12.88 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 45 |
| CANTILEVER | 654 |
| GROUND CLEARANCE | 8 |
| NO POLES | 3 |
| MODULE AREA | 767.0917333333333 |
| ARRAY WIDTH | 55.626666666666665 |
| ARRAY HEIGHT | 13.79 |
| RAIL LENGTH | 165.48 |
| MODULE LENGTH | 82.44 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 54.5 |
| GROUND TO_TOP | 17.69207694746361 |
| PROJECTED PANEL_HEIGHT | 9.633151382364733 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | LudersWay-RevB |
| SITE ADDRESS | Brooklin, ME, 04616, USA |
| MODULE WIDTH | 40.87 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 8 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Square |
| FOUNDATION SIZE | 48 |
| CHECK RAILS | false |
| TOTAL PRICE | 12377.060000000001 |
| TOTAL WEIGHT | 2217.76 |
| TOTAL PALLETS | 3 |
| ID | 176 |
