This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 48 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

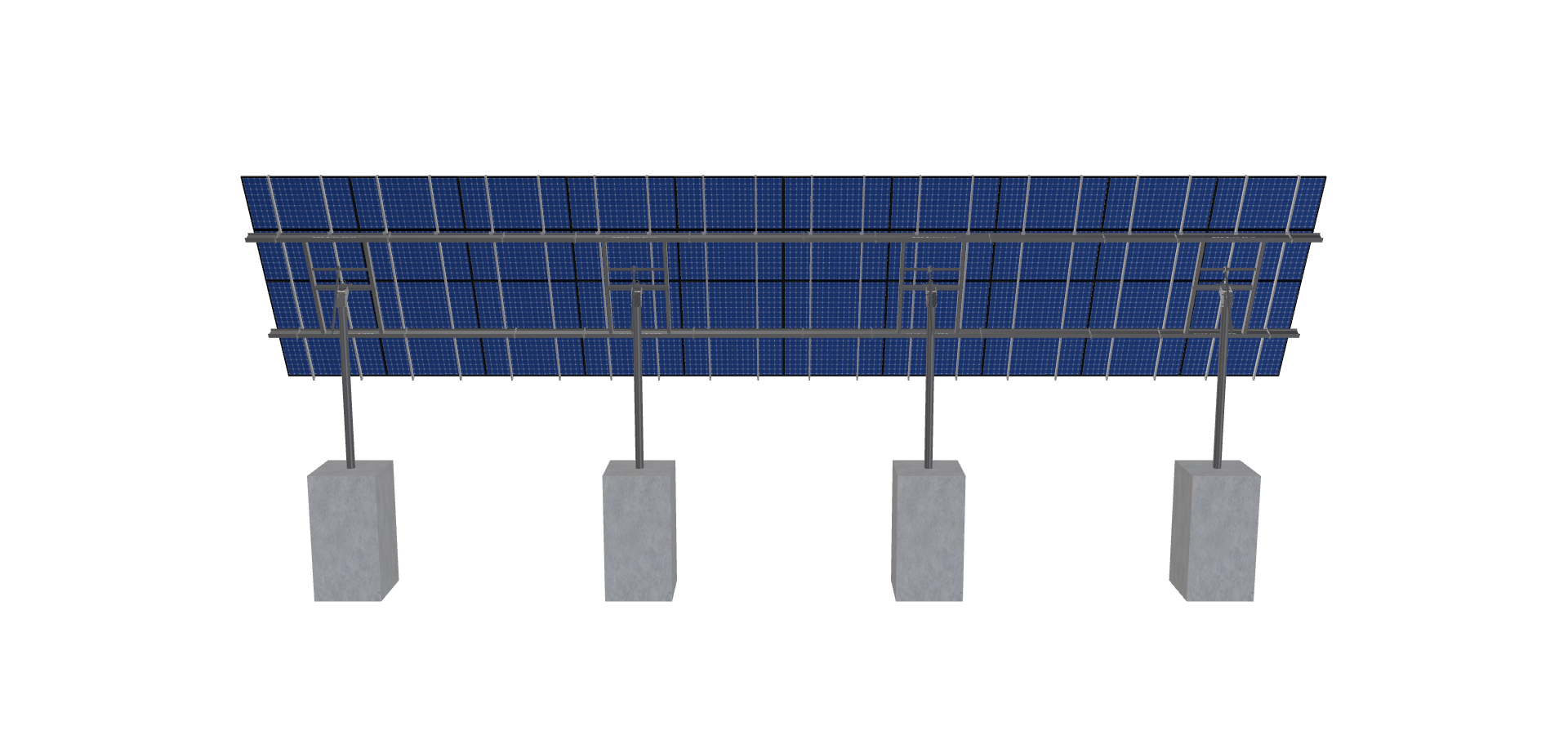

See 3D Model Here
Lutman
$19,596.22
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 84 inches by 48 inches and an array layout of 10 wide by 4 high.
This mount fits on 4 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3464.42 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 4P-19.75-10TOP-HD-24-L-4HX10W-F0HD |
| DUTY SIZE | HD |
| POLE SIZE | 10IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 4.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 12.33 |
| WING SPAN | 24.00 |
| MAX FOUNDATION DEPTH | 8.75 |
| TILT ANGLE | 65.00 |
| CANTILEVER | 849.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 4.00 |
| MODULE AREA | 1145.14 |
| ARRAY WIDTH | 70.83 |
| ARRAY HEIGHT | 16.17 |
| RAIL LENGTH | 194.00 |
| MODULE LENGTH | 84.00 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 70.75 |
| GROUND TO TOP | 19.58 |
| PROJECTED PANEL HEIGHT | 14.50 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| PROJECT ID | LUTMAN |
| SITE ADDRESS | 13957, W, SHANGRILA, AVE, WASILLA, AK, 99623, USA |
| MODULE WIDTH | 48.00 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18663.07 |
| TOTAL WEIGHT | 3464.42 |
| TOTAL PALLETS | 4.00 |
https://skycivquotes.s3.amazonaws.com/f7d890d9-bb05-4495-9db4-e684fa8f5135.pdf |
|
| ID | 7357.00 |
| 3D Solar link |
