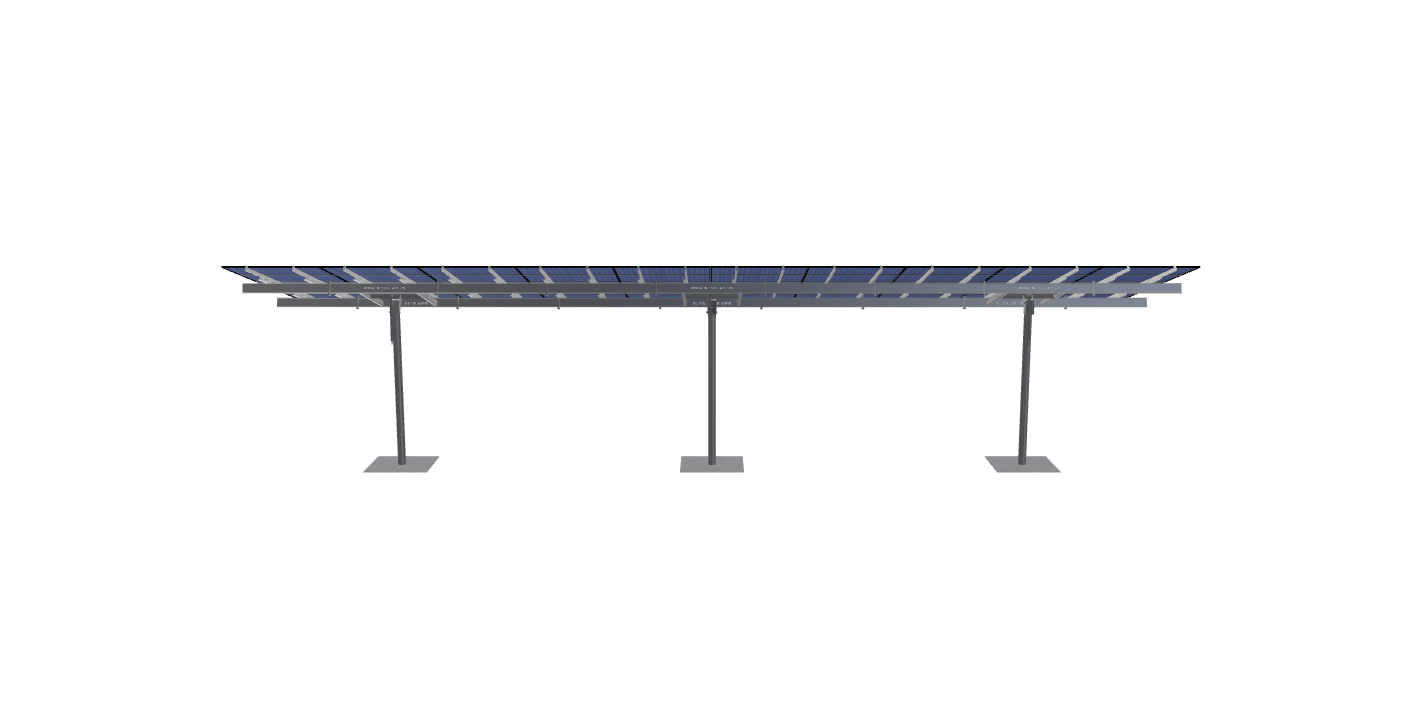

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.25 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
LyonContracting|12022025
$18,227.61
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 76.4 inches by 41.25 inches and an array layout of 10 wide by 5 high.
This mount fits on 3 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 3465.01 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 3P-22.5-6TOP-HD-72-L-5HX10W-LHHK |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 22.50 |
| POLE HEIGHT | 12.25 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 0.00 |
| TILT ANGLE | 15.00 |
| CANTILEVER | 774.00 |
| GROUND CLEARANCE | 10.00 |
| NO POLES | 3.00 |
| MODULE AREA | 1122.03 |
| ARRAY WIDTH | 64.50 |
| ARRAY HEIGHT | 17.40 |
| RAIL LENGTH | 208.75 |
| MODULE LENGTH | 76.40 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 64.50 |
| GROUND TO TOP | 14.50 |
| PROJECTED PANEL HEIGHT | 4.50 |
| WIND SPEED OVERRIDE | NULL |
| SNOW LOAD OVERRIDE | NULL |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| DESIGNER NAME | |
| DESIGNER EMAIL | |
| DESIGNER PHONE | |
| PROJECT ID | LYONCONTRACTING, 12022025 |
| SITE ADDRESS | 3035, N, SANDERS, ST, HELENA, MT, 59601, USA |
| MODULE INFO | |
| MODULE WIDTH | 41.25 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 10.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | B |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 18227.61 |
| TOTAL WEIGHT | 3465.01 |
| TOTAL PALLETS | 3.00 |
