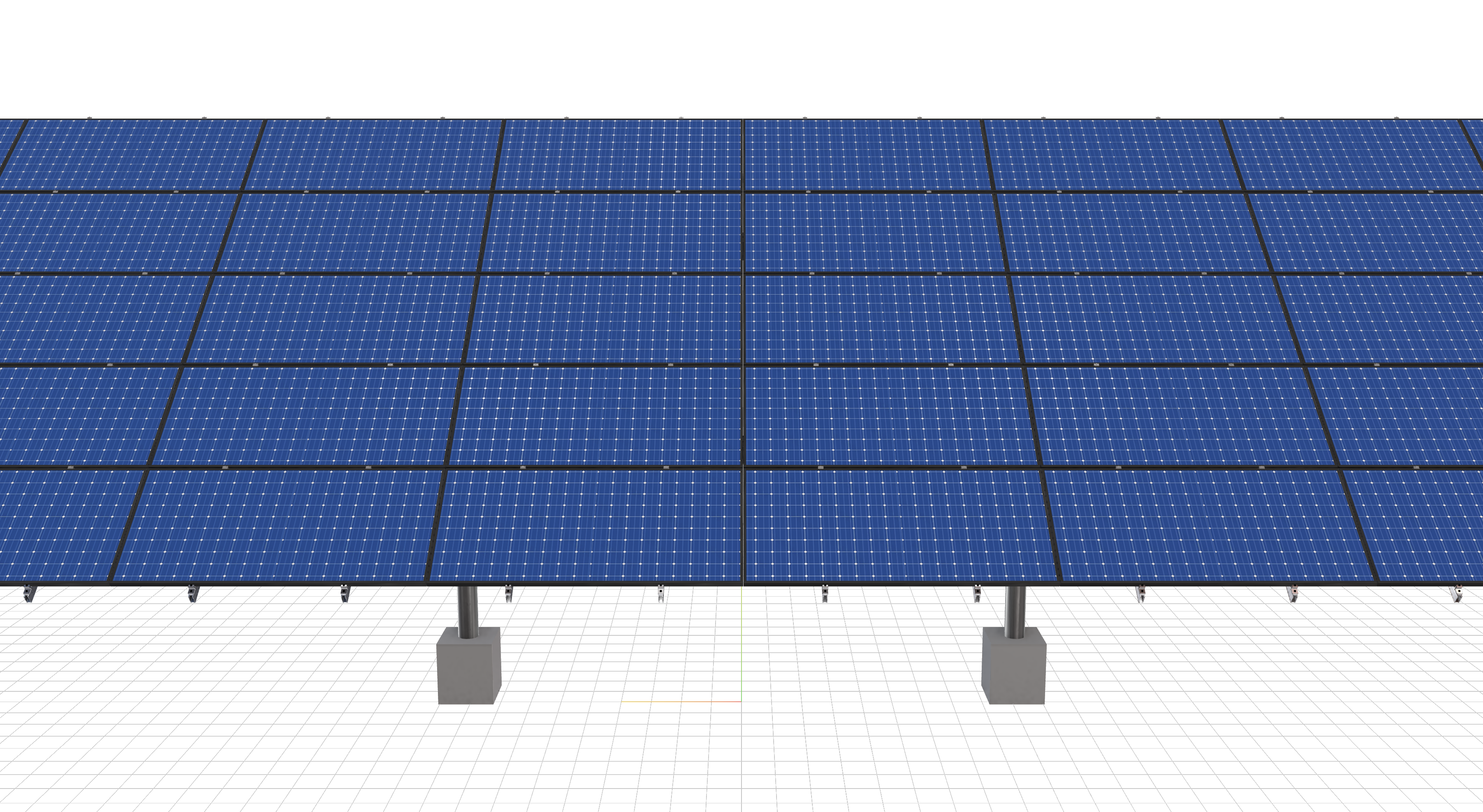

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Mainsolar-JB-RevA
$17,297.04
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 5 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
Weight | 3912 lbs |
---|---|
Dimensions | 90 × 24 × 24 in |
https://SOLVER.SKYCIV.COM/TEMP/MERGEDPDF, M4I7IQWBXOG4COGK.PHP |
|
SKU CODE | 3P-19.75-8TOP-XD-57-L-5HX8W |
DUTY SIZE | XD |
POLE SIZE | 8IN, PIPE, SCH, 40 |
PRODUCT TYPE | BEAM |
NUMBER OF_POLES | 3 |
POLE SPACING | 15 |
POLE HEIGHT | 11.24 |
WING SPAN | 57 |
FOUNDATION DEPTHS | [OBJECT, OBJECT] |
TILT ANGLE | 37 |
CANTILEVER | 678 |
GROUND CLEARANCE | 6 |
NO POLES | 3 |
MODULE AREA | 985.7833333333334 |
ARRAY WIDTH | 56.6 |
ARRAY HEIGHT | 17.416666666666668 |
RAIL LENGTH | 209 |
MODULE LENGTH | 83.9 |
PASSED OVERHANG_CHECK | TRUE |
MODULE WIDTH_GAP | 0.5 |
MODULE LENGTH_GAP | 1 |
TOTAL FRAME_LENGTH | 56.5 |
GROUND TO_TOP | 16.418922588319838 |
PROJECTED PANEL_HEIGHT | 10.356233523408163 |
WIND SPEED_OVERRIDE | NULL |
SNOW LOAD_OVERRIDE | NULL |
DIRECT SNOW_LOAD | FALSE |
PROJECT ID | MAINSOLAR-JB-REVA |
SITE ADDRESS | 28385, POST, OFFICE, RD, MASS, CITY, MI, 49948, USA |
MODULE WIDTH | 41.3 |
NUMBER ROWS | 5 |
NUMBER COLUMNS | 8 |
MAIN PIPE_SECTION | 2, 12GA |
RISK CATEGORY | I |
EXPOSURE CATEGORY | C |
POLE OVERRIDE | AUTO |
SOIL TYPE | SAND |
FOUNDATION TYPE | SQUARE |
FOUNDATION SIZE | 48 |
CHECK RAILS | FALSE |
TOTAL PRICE | 17297.04 |
TOTAL WEIGHT | 3499.37 |
TOTAL PALLETS | 3 |
ID | 219 |
