Mark – V1Jb

$3,063.76

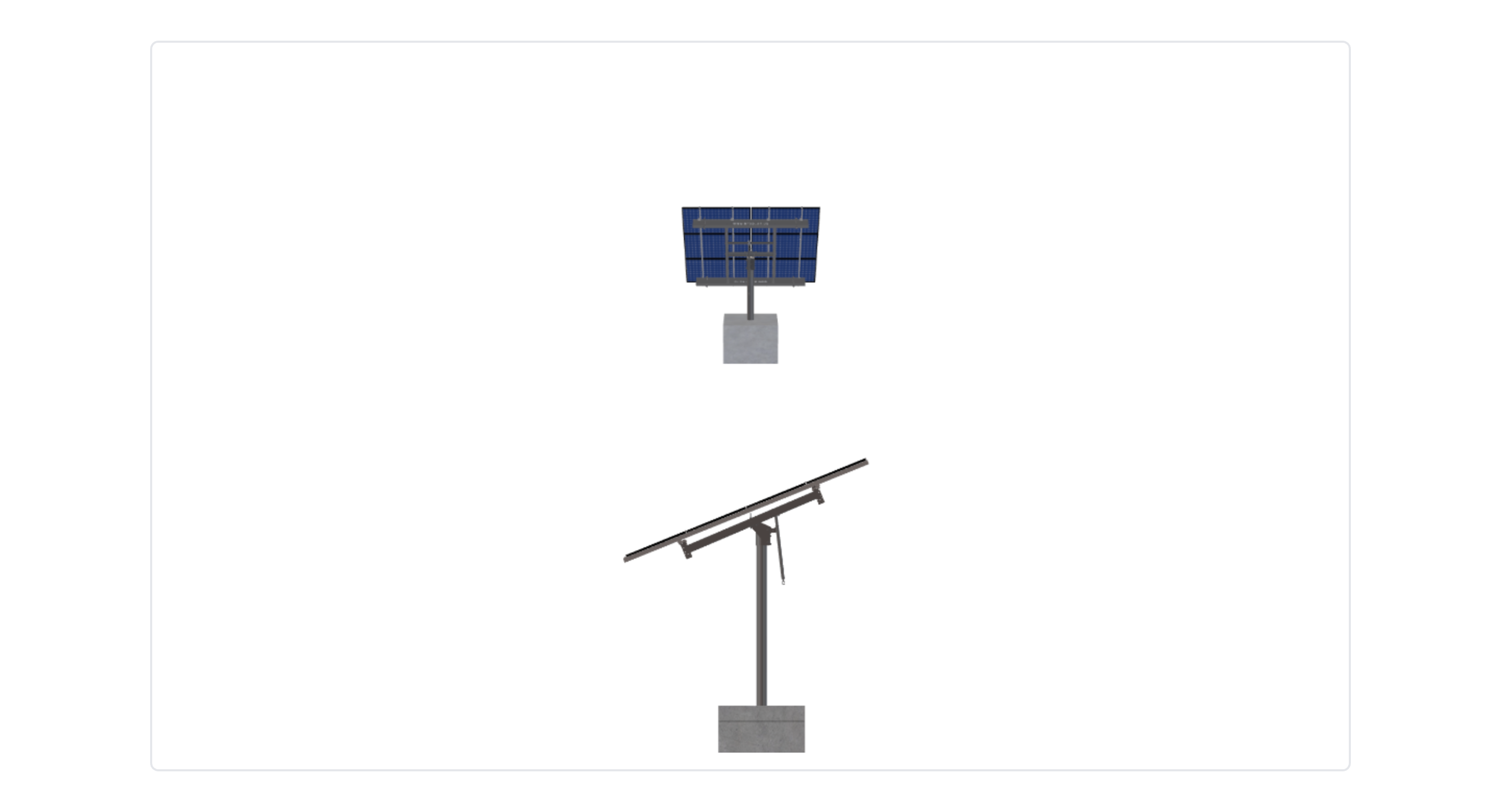

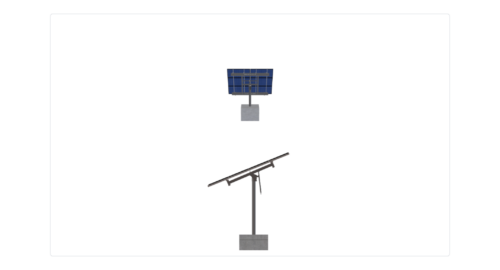

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.5 inches by 39.25 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-6TOP-SD-12-L-3Hx2W-180L Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 67.5 inches by 39.25 inches and an array layout of 2 wide by 3 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 512.84 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-12-L-3HX2W-180L

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

5.56

WING SPAN

12.00

MAX FOUNDATION DEPTH

3.25

TILT ANGLE

50.00

CANTILEVER

114.00

GROUND CLEARANCE

1.75

NO POLES

1.00

MODULE AREA

113.45

ARRAY WIDTH

11.42

ARRAY HEIGHT

9.94

RAIL LENGTH

119.25

MODULE LENGTH

67.50

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

9.50

GROUND TO TOP

9.31

PROJECTED PANEL HEIGHT

7.52

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

PROJECT ID

MARK, -, V1JB

SITE ADDRESS

COLUMBIA, FALLS, MT, 59912, USA

MODULE WIDTH

39.25

NUMBER ROWS

3.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3063.76

TOTAL WEIGHT

512.84

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/fda2c7fe-fb5f-48f1-b1ab-b39feb8bcf39.pdf

ID

7171.00
