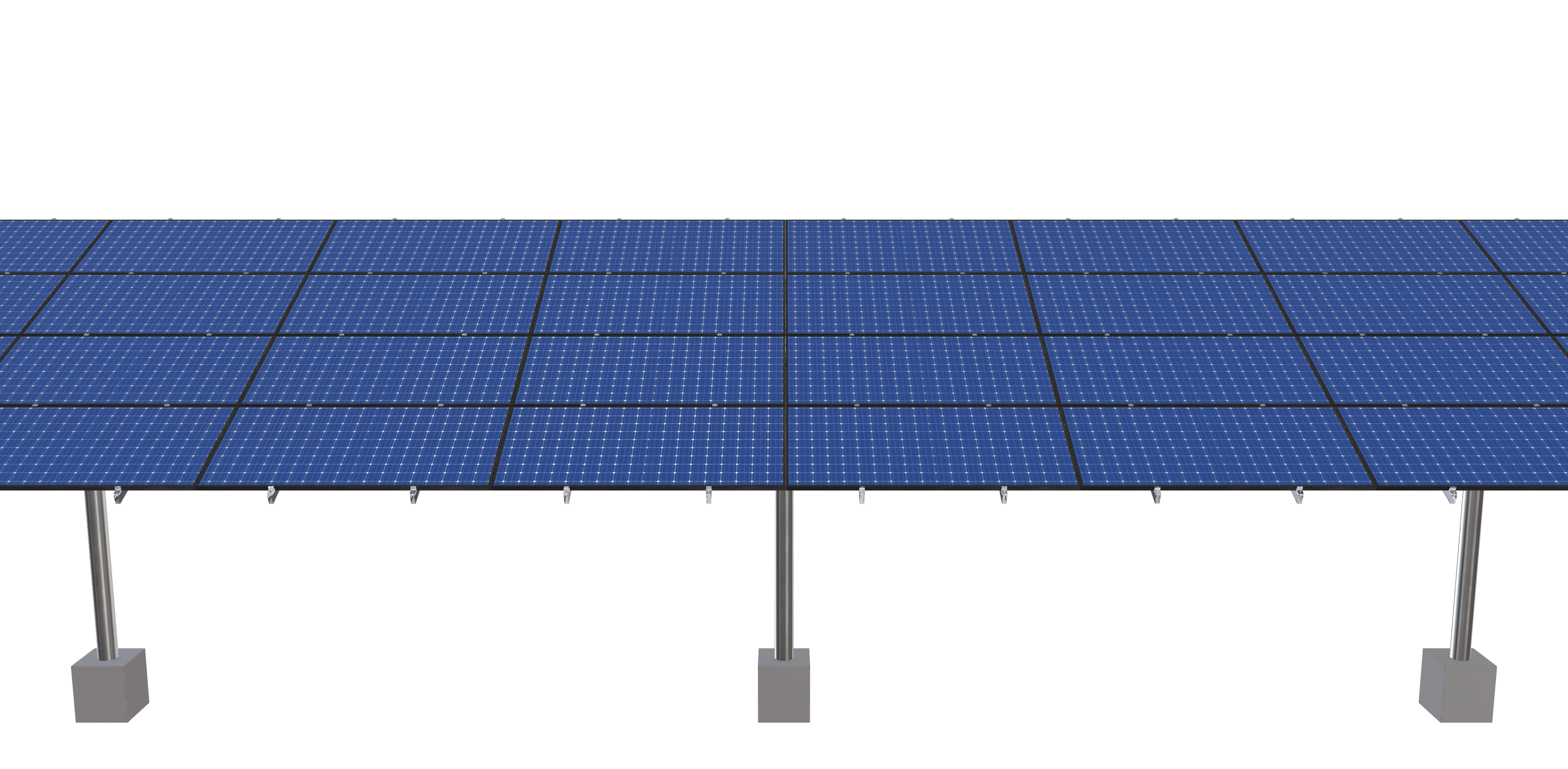

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
MARKUS-RevA_2_17_2023_11_57_18_AM
$14,153.73
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.9 inches by 41.3 inches and an array layout of 8 wide by 4 high.
This mount fits on 3 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 19.75 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 2633.45 lbs |
|---|---|
| SKU CODE | 3P-19.75-8TOP-HD-57-L-4HX8W |
| DUTY SIZE | HD |
| POLE SIZE | 8IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 3.00 |
| POLE SPACING | 19.75 |
| POLE HEIGHT | 8.83 |
| WING SPAN | 57.00 |
| FOUNDATION DEPTHS | [OBJECT, OBJECT] |
| MAX FOUNDATION DEPTH | 6.25 |
| TILT ANGLE | 24.00 |
| CANTILEVER | 678.00 |
| GROUND CLEARANCE | 6.00 |
| NO POLES | 3.00 |
| MODULE AREA | 788.63 |
| ARRAY WIDTH | 56.60 |
| ARRAY HEIGHT | 13.93 |
| RAIL LENGTH | 167.20 |
| MODULE LENGTH | 83.90 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 56.50 |
| GROUND TO TOP | 11.63 |
| PROJECTED PANEL HEIGHT | 5.60 |
| WIND SPEED OVERRIDE | 110.00 |
| SNOW LOAD OVERRIDE | 29.00 |
| DIRECT SNOW LOAD | FALSE |
| PROJECT ID | MARKUS-REVA |
| SITE ADDRESS | 24875, BAREFOOT, RD, GRASS, VALLEY, CA, 95949, USA |
| MODULE WIDTH | 41.30 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 8.00 |
| MAIN PIPE SECTION | 2, 12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| TOTAL PRICE | 14153.73 |
| TOTAL WEIGHT | 2633.45 |
| TOTAL PALLETS | 3.00 |
https://skycivquotes.s3.amazonaws.com/972bd233-bbc3-40df-b558-43eb5a8098da.pdf |
|
| ID | 274.00 |
| _length | 90 |
| _width | 24 |
| _height | 24 |
| _ltl_freight | 65 |
| _nmfc_number | 160270 |
| _nestedDimension | length |
