Mayhill Alternate Mount 24

$9,739.59

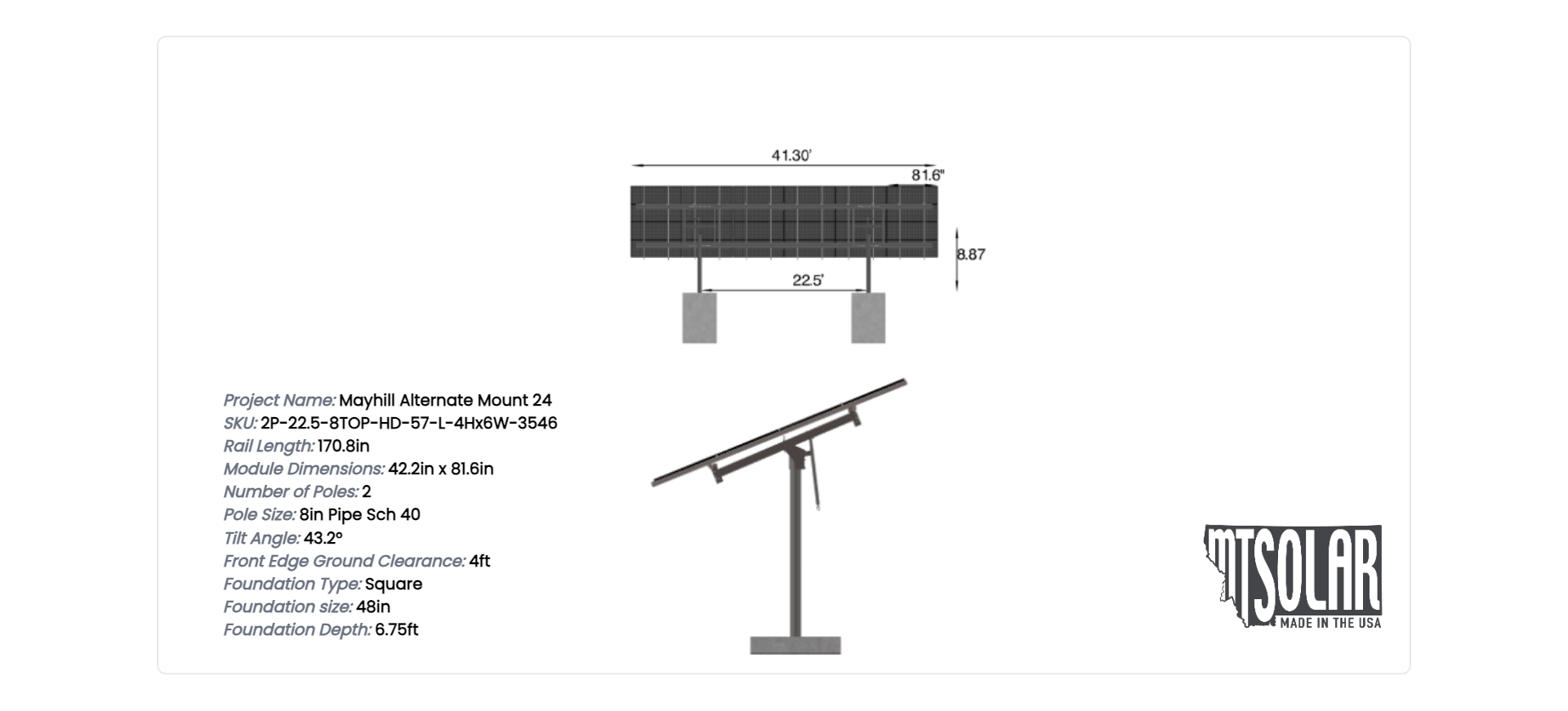

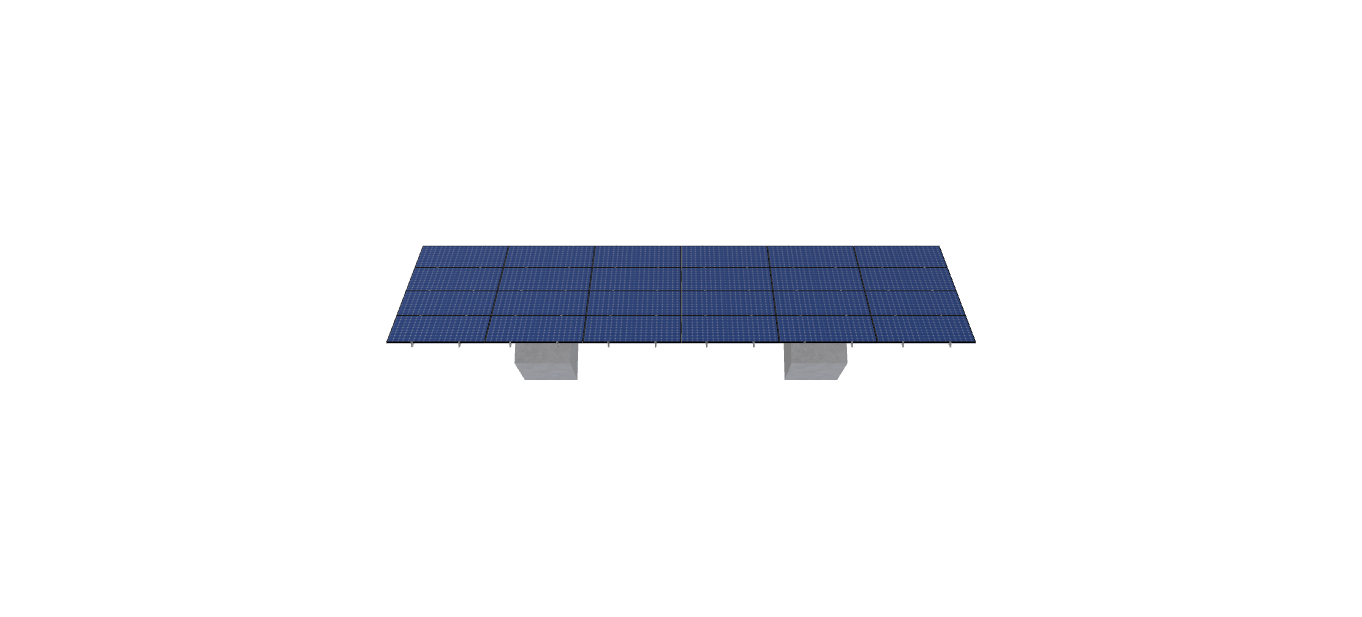

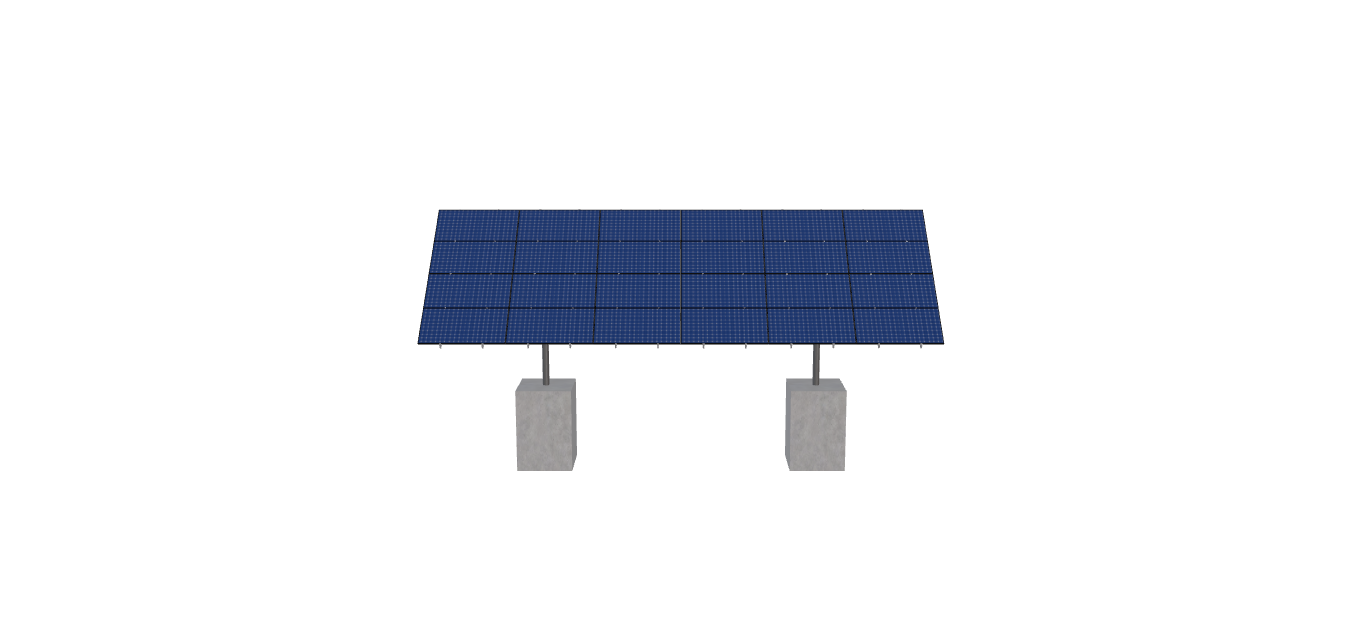

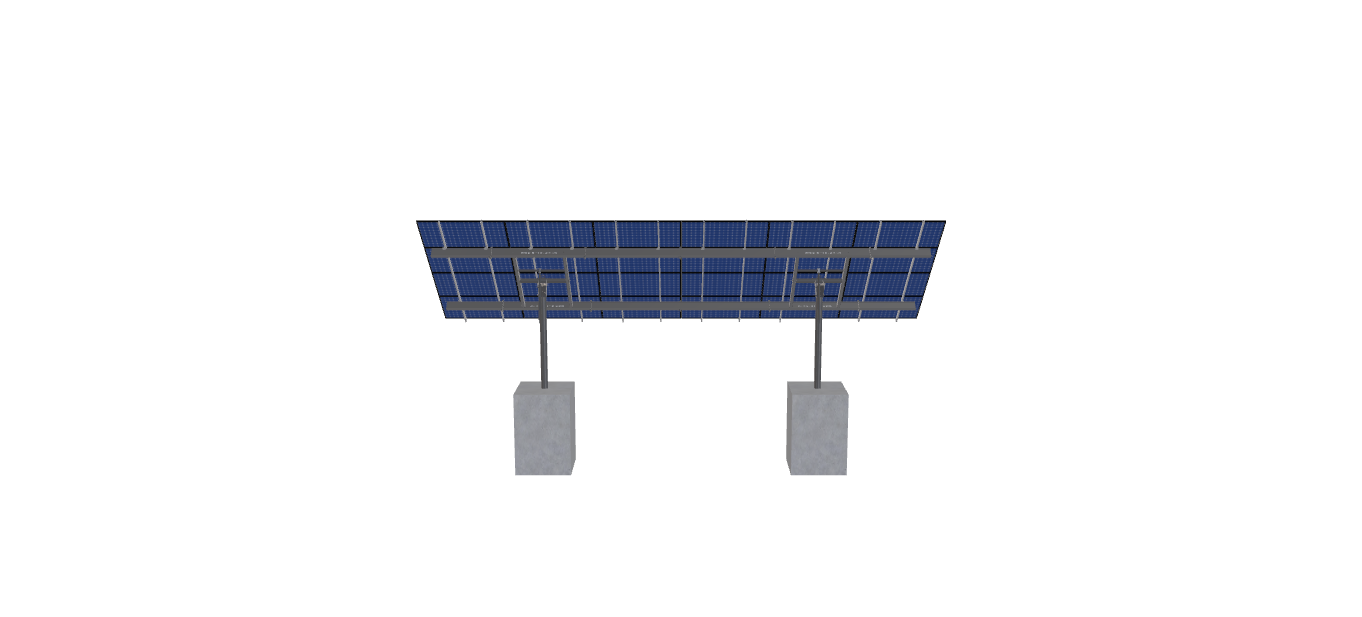

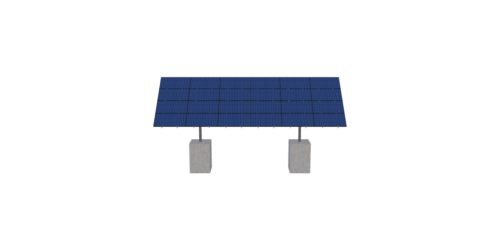

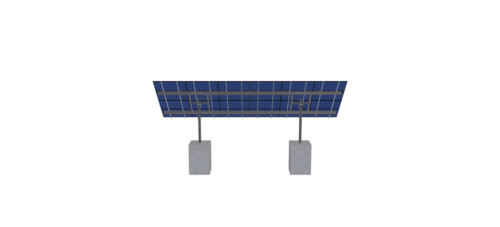

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.6 inches by 42.2 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 2P-22.5-8TOP-HD-57-L-4Hx6W-3546 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 81.6 inches by 42.2 inches and an array layout of 6 wide by 4 high.
This mount fits on 2 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 22.5 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 1807.5 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

2P-22.5-8TOP-HD-57-L-4HX6W-3546

DUTY SIZE

HD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

2.00

POLE SPACING

22.50

POLE HEIGHT

8.87

WING SPAN

57.00

MAX FOUNDATION DEPTH

6.75

TILT ANGLE

43.20

CANTILEVER

474.00

GROUND CLEARANCE

4.00

NO POLES

2.00

MODULE AREA

587.84

ARRAY WIDTH

41.30

ARRAY HEIGHT

14.23

RAIL LENGTH

170.80

MODULE LENGTH

81.60

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

39.50

GROUND TO TOP

13.69

PROJECTED PANEL HEIGHT

9.63

PROJECT ID

MAYHILL, ALTERNATE, MOUNT, 24

SITE ADDRESS

2568, US-82, MAYHILL, NM, 88339, USA

MODULE WIDTH

42.20

NUMBER ROWS

4.00

NUMBER COLUMNS

6.00

RISK CATEGORY

I

EXPOSURE CATEGORY

C

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

WIND SPEED OVERRIDE

105.00

SNOW LOAD OVERRIDE

50.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

TOTAL PRICE

9739.59

TOTAL WEIGHT

1807.50

TOTAL PALLETS

2.00

pdf

https://skycivquotes.s3.amazonaws.com/37296815-0152-4eec-b9b8-c283d1fa76b5.pdf

ID

7243.00
