MC Ranch Addition – 10 Panels 5 high – V1Jb

$3,672.61

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.3 inches by 39.4 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

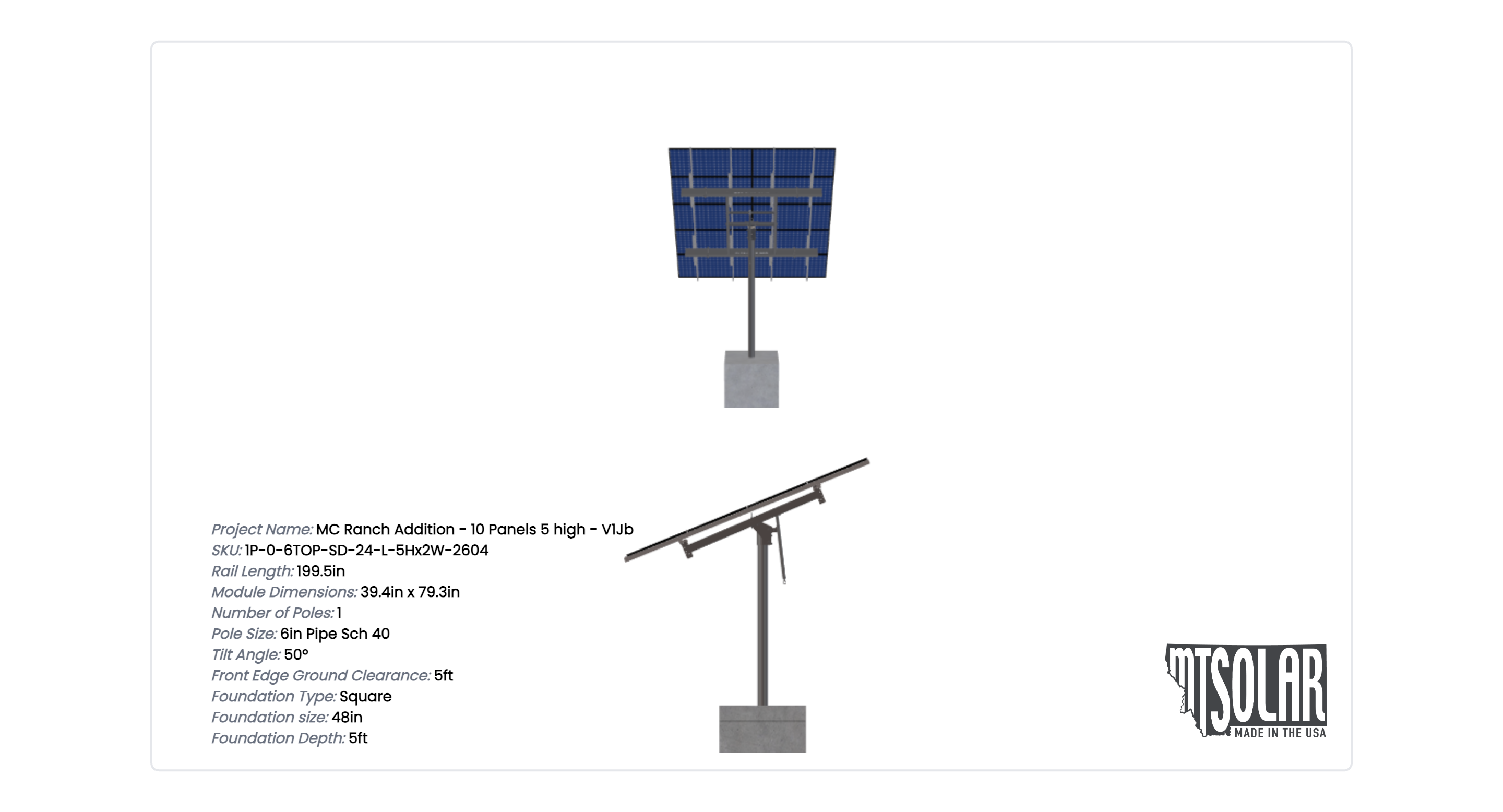

See 3D Model Here

SKU: 1P-0-6TOP-SD-24-L-5Hx2W-2604 Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.3 inches by 39.4 inches and an array layout of 2 wide by 5 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 691.88 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-6TOP-SD-24-L-5HX2W-2604

DUTY SIZE

SD

POLE SIZE

6IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.37

WING SPAN

24.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

50.00

CANTILEVER

138.00

GROUND CLEARANCE

5.00

NO POLES

1.00

MODULE AREA

222.50

ARRAY WIDTH

13.38

ARRAY HEIGHT

16.63

RAIL LENGTH

199.50

MODULE LENGTH

79.30

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

11.50

GROUND TO TOP

17.74

PROJECTED PANEL HEIGHT

12.74

WIND SPEED OVERRIDE

90.00

SNOW LOAD OVERRIDE

30.00

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

FALSE

DESIGNER NAME

JACK, MCFARLAND

DESIGNER EMAIL

JACK@CFOCONSULTING.COM

DESIGNER PHONE

5034535172.00

PROJECT ID

MC, RANCH, ADDITION, -, 10, PANELS, 5, HIGH, -, V1JB

SITE ADDRESS

11012, INSIDE, NORTH, FORK, RD, POLEBRIDGE, MT, 59928, USA

MODULE WIDTH

39.40

NUMBER ROWS

5.00

NUMBER COLUMNS

2.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

AUTO

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3672.61

TOTAL WEIGHT

691.88

TOTAL PALLETS

1.00
