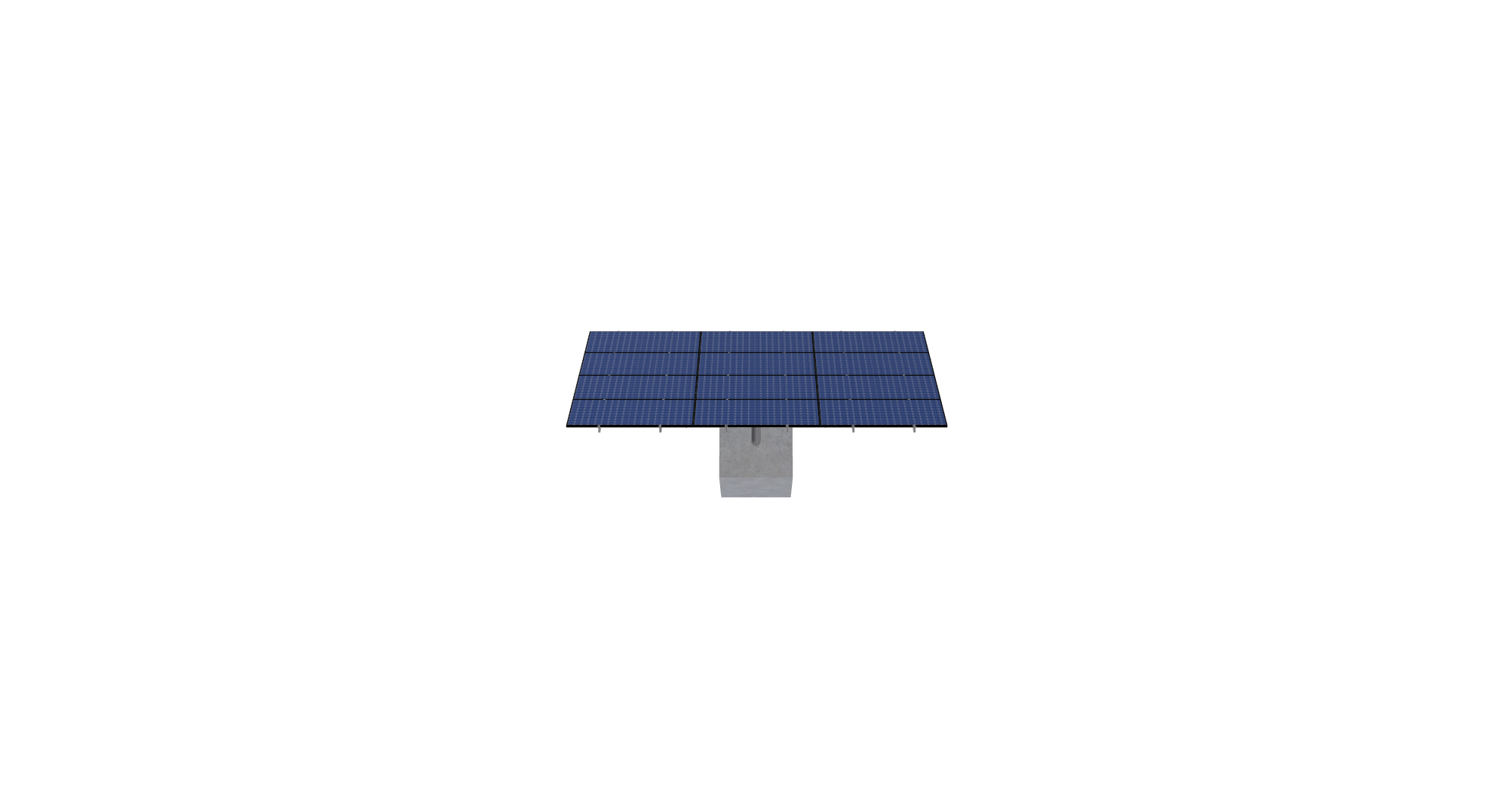

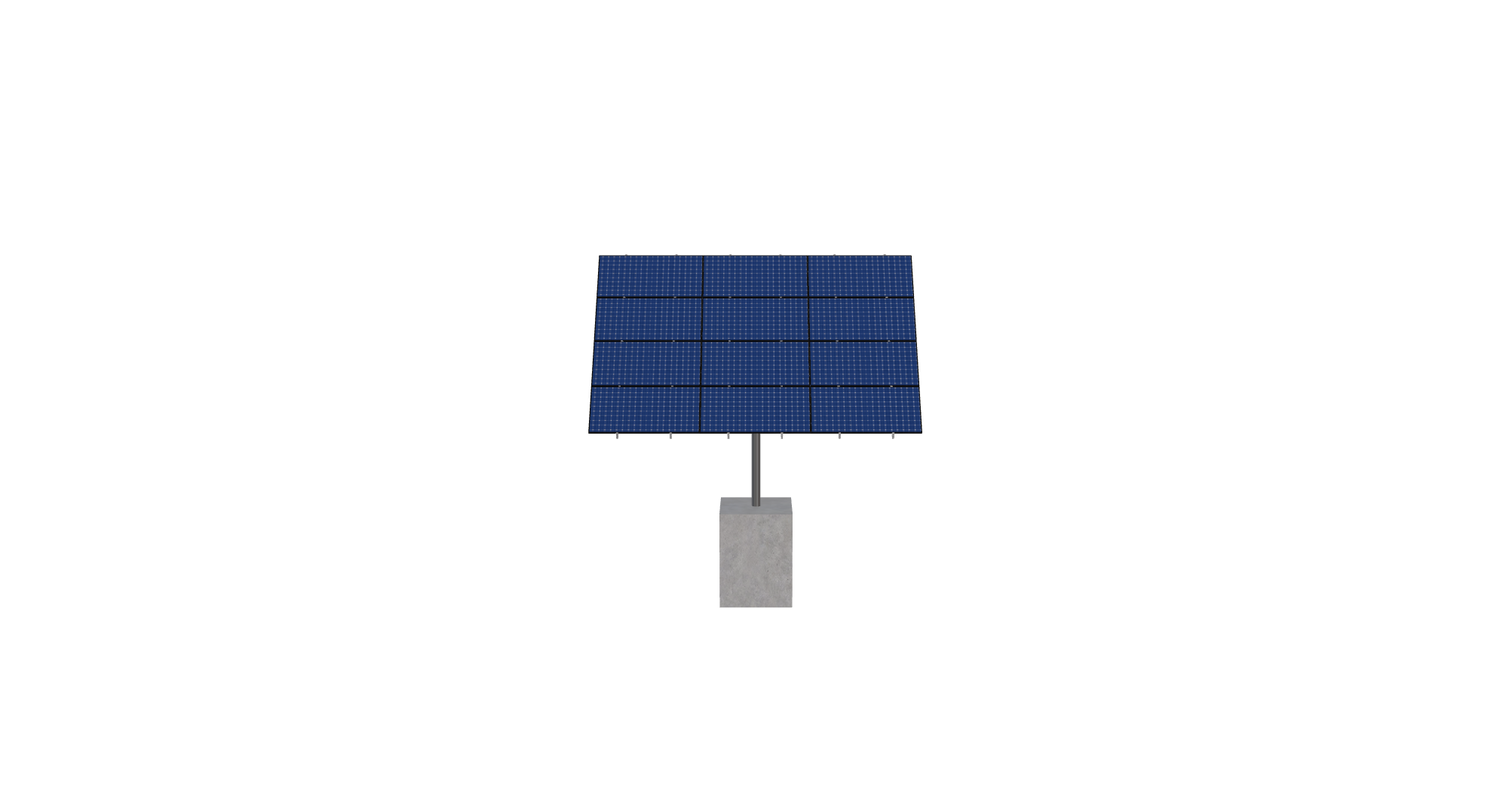

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.3 inches by 39.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
MC Ranch Addition – 12 panels 3×4
$4,171.28
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 79.3 inches by 39.4 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 744.66 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 1P-0-6TOP-SD-72-L-4HX3W-1JCK |
| DUTY SIZE | SD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 1.00 |
| POLE SPACING | 0.00 |
| POLE HEIGHT | 10.09 |
| WING SPAN | 72.00 |
| MAX FOUNDATION DEPTH | 6.00 |
| TILT ANGLE | 50.00 |
| CANTILEVER | 234.00 |
| GROUND CLEARANCE | 5.00 |
| NO POLES | 1.00 |
| MODULE AREA | 267.00 |
| ARRAY WIDTH | 20.07 |
| ARRAY HEIGHT | 13.30 |
| RAIL LENGTH | 159.60 |
| MODULE LENGTH | 79.30 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 19.50 |
| GROUND TO TOP | 15.19 |
| PROJECTED PANEL HEIGHT | 10.19 |
| DESIGNER NAME | JACK, MCFARLAND |
| DESIGNER EMAIL | |
| DESIGNER PHONE | 5034535172.00 |
| PROJECT ID | MC, RANCH, ADDITION, -, 12, PANELS, 3X4 |
| SITE ADDRESS | 11012, INSIDE, NORTH, FORK, RD, POLEBRIDGE, MT, 59928, USA |
| MODULE WIDTH | 39.40 |
| NUMBER ROWS | 4.00 |
| NUMBER COLUMNS | 3.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | D |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | FALSE |
| WIND SPEED OVERRIDE | 90.00 |
| SNOW LOAD OVERRIDE | 30.00 |
| DIRECT SNOW LOAD | FALSE |
| ADD ANGLE BRACE | FALSE |
| TOTAL PRICE | 4171.28 |
| TOTAL WEIGHT | 744.66 |
| TOTAL PALLETS | 1.00 |
https://skycivquotes.s3.amazonaws.com/32f3d3b9-64a2-47b8-aa32-608bdf8193bf.pdf |
|
| ID | 8612.00 |
| 3D Solar link |
