Minto – Revb – Jb

$3,706.01

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

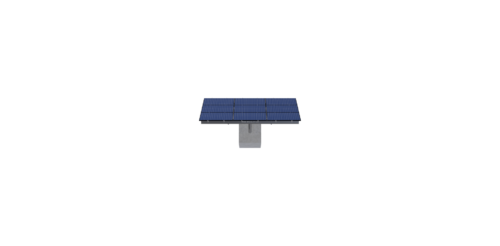

See 3D Model Here

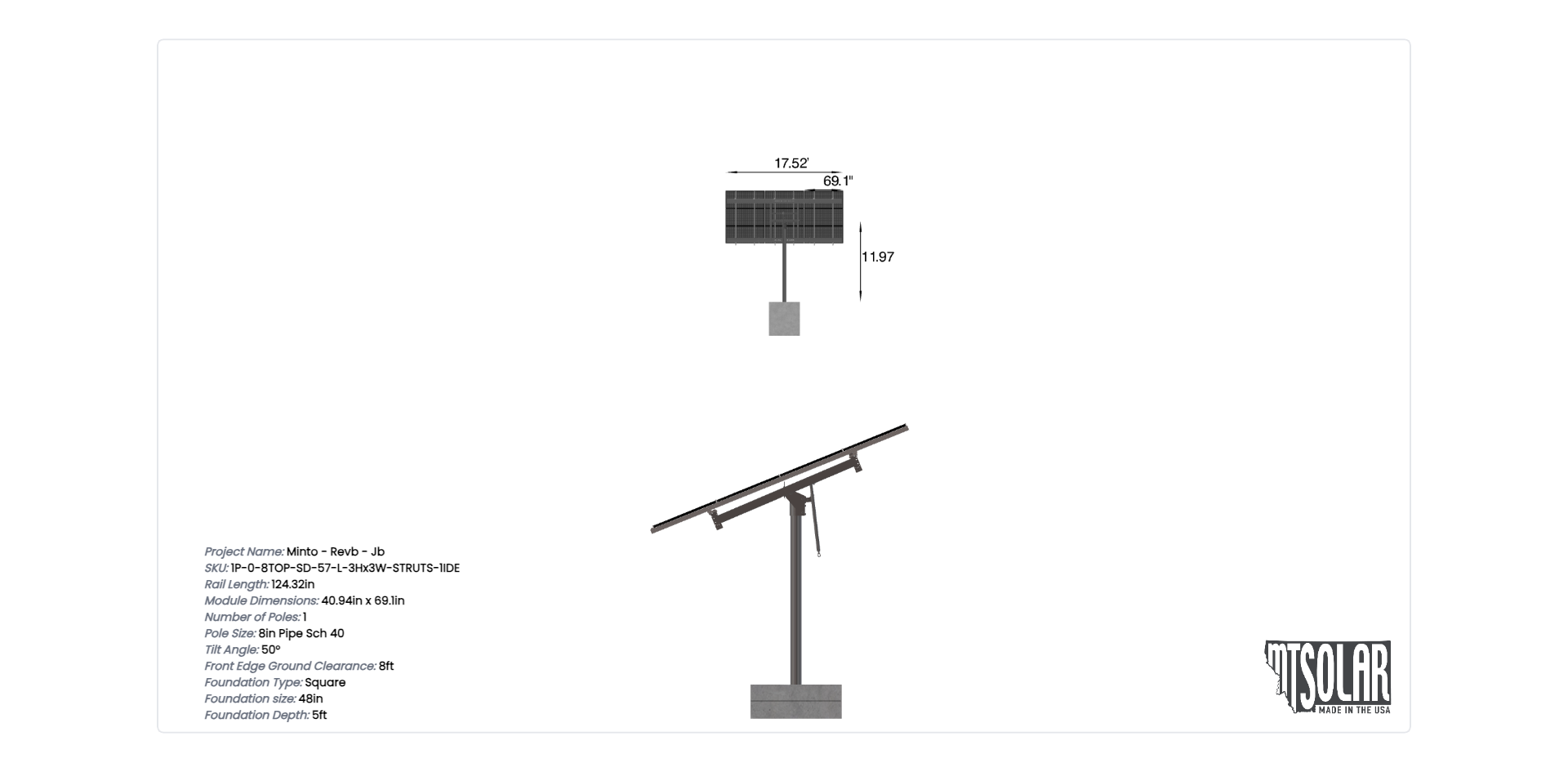

Add a PE Stamped Drawing for this mount

For permitting, get a Professional Engineer's stamp on your construction drawing.

SKU: 1P-0-8TOP-SD-57-L-3Hx3W-STRUTS-1IDE Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 69.1 inches by 40.94 inches and an array layout of 3 wide by 3 high.
This mount fits on 1 – 8in Pipe Sch 40 inch steel pole(s) with a spacing of 0 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here

Additional information

Weight 664.38 lbs
Dimensions 90 × 24 × 24 in
SKU CODE

1P-0-8TOP-SD-57-L-3HX3W-STRUTS-1IDE

DUTY SIZE

SD

POLE SIZE

8IN, PIPE, SCH, 40

PRODUCT TYPE

BEAM

NUMBER OF POLES

1.00

POLE SPACING

0.00

POLE HEIGHT

11.97

WING SPAN

57.00

MAX FOUNDATION DEPTH

5.00

TILT ANGLE

50.00

CANTILEVER

204.00

GROUND CLEARANCE

8.00

NO POLES

1.00

MODULE AREA

181.56

ARRAY WIDTH

17.52

ARRAY HEIGHT

10.36

RAIL LENGTH

124.32

MODULE LENGTH

69.10

PASSED OVERHANG CHECK

TRUE

MODULE WIDTH GAP

0.50

MODULE LENGTH GAP

1.00

TOTAL FRAME LENGTH

17.00

GROUND TO TOP

15.89

PROJECTED PANEL HEIGHT

7.84

WIND SPEED OVERRIDE

NULL

SNOW LOAD OVERRIDE

NULL

DIRECT SNOW LOAD

FALSE

ADD ANGLE BRACE

TRUE

PROJECT ID

MINTO, -, REVB, -, JB

SITE ADDRESS

97, RUSH, CREEK, RD, BOISE, ID, 83716, USA

MODULE WIDTH

40.94

NUMBER ROWS

3.00

NUMBER COLUMNS

3.00

RISK CATEGORY

I

EXPOSURE CATEGORY

B

FRAME DUTY OVERRIDE

AUTO

POLE OVERRIDE

8, 40

SOIL TYPE

SAND

CUSTOMER FOUNDATION OVERRIDE

48, SQUARE

FOUNDATION TYPE

SQUARE

FOUNDATION SIZE

48.00

CHECK RAILS

FALSE

TOTAL PRICE

3706.01

TOTAL WEIGHT

664.38

TOTAL PALLETS

1.00

pdf

https://skycivquotes.s3.amazonaws.com/760a01d1-d699-441b-ab85-557e25106445.pdf

ID

6682.00
