This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.06 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

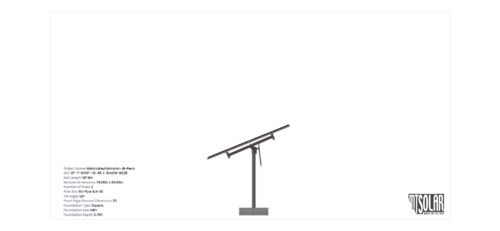

See 3D Model Here
MistyValleyFarmsInc-JB-RevA
$10,101.57
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 64.96 inches by 39.06 inches and an array layout of 6 wide by 5 high.
This mount fits on 2 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 17 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
See 3D Model Here
Additional information
| Weight | 2012.8600000000001 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
| SKU CODE | 2P-17-6TOP-HD-45-L-5HX6W-BG25 |
| DUTY SIZE | HD |
| POLE SIZE | 6IN, PIPE, SCH, 40 |
| PRODUCT TYPE | BEAM |
| NUMBER OF POLES | 2.00 |
| POLE SPACING | 17.00 |
| POLE HEIGHT | 5.48 |
| WING SPAN | 45.00 |
| MAX FOUNDATION DEPTH | 5.75 |
| TILT ANGLE | 25.00 |
| CANTILEVER | 384.00 |
| GROUND CLEARANCE | 2.00 |
| NO POLES | 2.00 |
| MODULE AREA | 543.62 |
| ARRAY WIDTH | 32.98 |
| ARRAY HEIGHT | 16.48 |
| RAIL LENGTH | 197.80 |
| MODULE LENGTH | 64.96 |
| PASSED OVERHANG CHECK | TRUE |
| MODULE WIDTH GAP | 0.50 |
| MODULE LENGTH GAP | 1.00 |
| TOTAL FRAME LENGTH | 32.00 |
| GROUND TO TOP | 8.92 |
| PROJECTED PANEL HEIGHT | 6.88 |
| PROJECT ID | MISTYVALLEYFARMSINC-JB-REVA |
| SITE ADDRESS | 18015, FALLS, RD, HAMPSTEAD, MD, 21074, USA |
| MODULE WIDTH | 39.06 |
| NUMBER ROWS | 5.00 |
| NUMBER COLUMNS | 6.00 |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| FRAME DUTY OVERRIDE | AUTO |
| POLE OVERRIDE | AUTO |
| SOIL TYPE | SAND |
| CUSTOMER FOUNDATION OVERRIDE | 48, SQUARE |
| FOUNDATION TYPE | SQUARE |
| FOUNDATION SIZE | 48.00 |
| CHECK RAILS | TRUE |
| WIND SPEED OVERRIDE | 105.00 |
| SNOW LOAD OVERRIDE | 25.00 |
| DIRECT SNOW LOAD | FALSE |
| TOTAL PRICE | 10101.57 |
| TOTAL WEIGHT | 2012.86 |
| TOTAL PALLETS | 2.00 |
