MooreBrenda-JB-RevA

$5,641.49

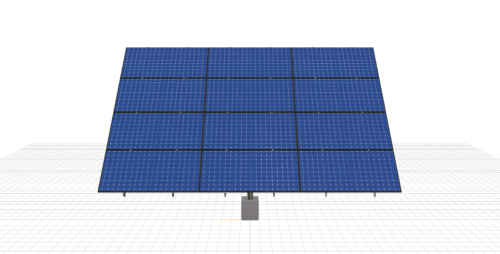

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.7 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Category:

Description

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 89.8 inches by 44.7 inches and an array layout of 3 wide by 4 high.
This mount fits on 1 – 10in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).

Additional information

Weight 1459 lbs
Dimensions 90 × 24 × 24 in
PDF

https://solver.skyciv.com/temp/mergedpdf_p82gnf6vnmsw8ggs.php

SKU CODE

1P-0-10TOP-XD-84-L-4Hx3W

DUTY SIZE

XD

POLE SIZE

10in, Pipe, Sch, 40

PRODUCT TYPE

Beam

NUMBER OF_POLES

1

POLE SPACING

15

POLE HEIGHT

10.33

WING SPAN

84

FOUNDATION DEPTHS

[object, Object]

TILT ANGLE

45

CANTILEVER

258

GROUND CLEARANCE

5

NO POLES

1

MODULE AREA

342.0133333333334

ARRAY WIDTH

22.7

ARRAY HEIGHT

15.066666666666668

RAIL LENGTH

180.8

MODULE LENGTH

89.8

PASSED OVERHANG_CHECK

true

MODULE WIDTH_GAP

0.5

MODULE LENGTH_GAP

1

TOTAL FRAME_LENGTH

21.5

GROUND TO_TOP

15.594816604778437

PROJECTED PANEL_HEIGHT

10.535891039679555

WIND SPEED_OVERRIDE

null

SNOW LOAD_OVERRIDE

null

DIRECT SNOW_LOAD

false

PROJECT ID

MooreBrenda-JB-RevA

SITE ADDRESS

13608, Lame, Johnny, Rd, Buffalo, Gap, SD, 57722, USA

MODULE WIDTH

44.7

NUMBER ROWS

4

NUMBER COLUMNS

3

MAIN PIPE_SECTION

2_12GA

RISK CATEGORY

I

EXPOSURE CATEGORY

C

SOIL TYPE

sand

FOUNDATION TYPE

Round

FOUNDATION SIZE

36

CHECK RAILS

true

TOTAL PRICE

5641.49

TOTAL WEIGHT

1069.1100000000001

TOTAL PALLETS

1

ID

188
