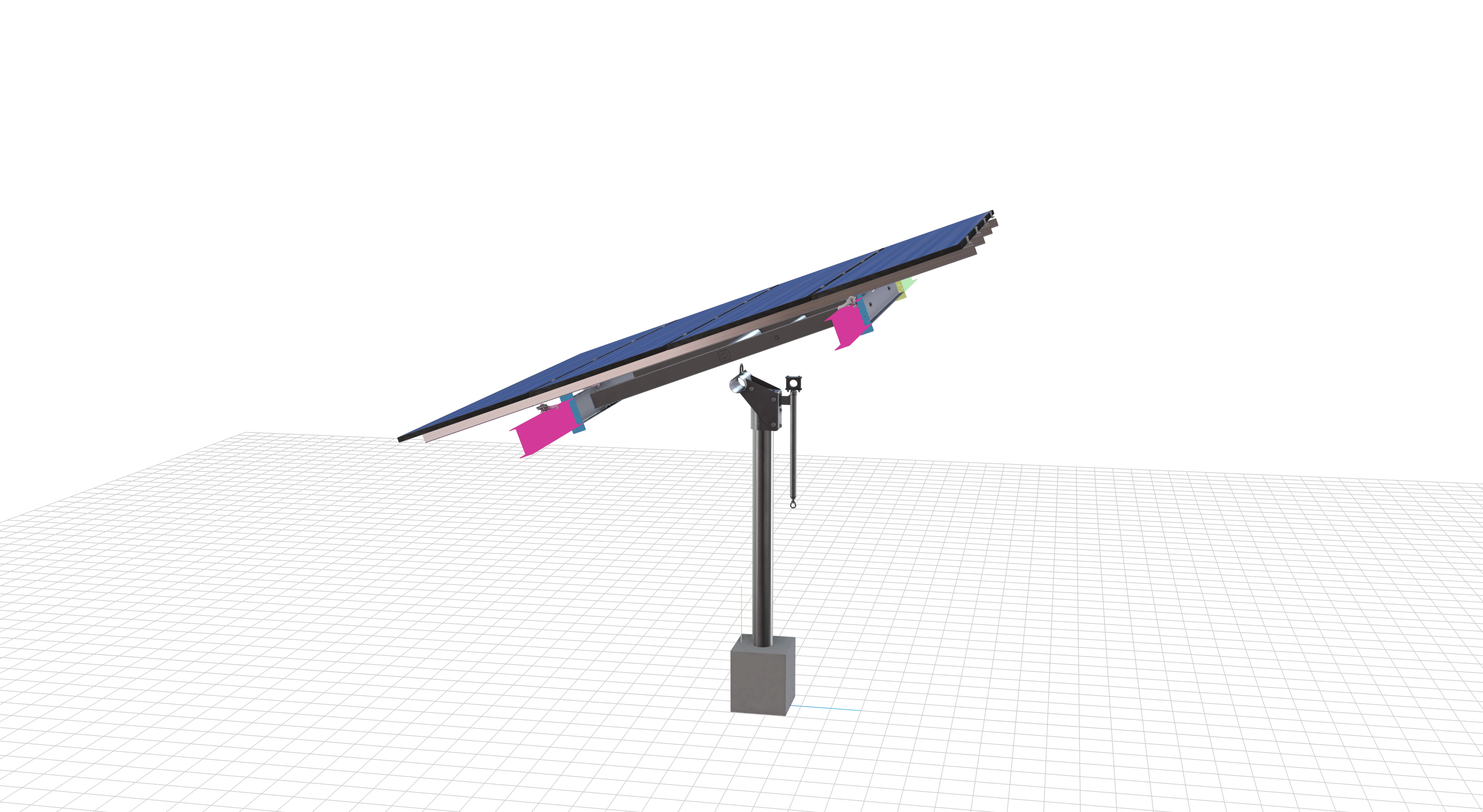

This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.94 inches by 41.26 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
MoorePV_RevA
$3,553.00
Description
This Pole Mount is designed to meet your site-specific inputs which are modules with dimensions of 83.94 inches by 41.26 inches and an array layout of 2 wide by 4 high.
This mount fits on 1 – 6in Pipe Sch 40 inch steel pole(s) with a spacing of 15 feet (not included).
The package includes a rail kit with all hardware necessary to attach and bond the solar modules to the rack. A chain hoist and lift bracket are needed for each pole (not included).
Additional information
| Weight | 581 lbs |
|---|---|
| Dimensions | 90 × 24 × 24 in |
https://solver.skyciv.com/temp/mergedpdf_5eppr0hkszcwwo04.php |
|
| SKU CODE | 1P-0-6TOP-SD-45-L-4Hx2W |
| DUTY SIZE | SD |
| POLE SIZE | 6in, Pipe, Sch, 40 |
| PRODUCT TYPE | Beam |
| NUMBER OF_POLES | 1 |
| POLE SPACING | 15 |
| POLE HEIGHT | 8.38 |
| WING SPAN | 45 |
| FOUNDATION DEPTHS | [object, Object] |
| TILT ANGLE | 20 |
| CANTILEVER | 180 |
| GROUND CLEARANCE | 6 |
| NO POLES | 1 |
| MODULE AREA | 197.0608 |
| ARRAY WIDTH | 14.156666666666666 |
| ARRAY HEIGHT | 13.92 |
| RAIL LENGTH | 167.04 |
| MODULE LENGTH | 83.94 |
| PASSED OVERHANG_CHECK | true |
| MODULE WIDTH_GAP | 0.5 |
| MODULE LENGTH_GAP | 1 |
| TOTAL FRAME_LENGTH | 15 |
| GROUND TO_TOP | 10.732418716482837 |
| PROJECTED PANEL_HEIGHT | 4.703917037872365 |
| WIND SPEED_OVERRIDE | null |
| SNOW LOAD_OVERRIDE | null |
| DIRECT SNOW_LOAD | false |
| PROJECT ID | MoorePV_RevA |
| SITE ADDRESS | 1815, Willow, Oak, Ln, Sierra, Vista, AZ, 85635, USA |
| MODULE WIDTH | 41.26 |
| NUMBER ROWS | 4 |
| NUMBER COLUMNS | 2 |
| MAIN PIPE_SECTION | 2_12GA |
| RISK CATEGORY | I |
| EXPOSURE CATEGORY | C |
| SOIL TYPE | sand |
| FOUNDATION TYPE | Round |
| FOUNDATION SIZE | 36 |
| CHECK RAILS | true |
| TOTAL PRICE | 3553 |
| TOTAL WEIGHT | 626.44 |
| TOTAL PALLETS | 1 |
| ID | 128 |
